| Prod Model: |
P7.62mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
One Year Warranty After Shipping |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
1/8 Scan |
| Certification: |
FCC |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Pitch: |
7.62mm |
| Pixel Density: |
17,222 dots / m² |
| Application: |
Shopping Guide |
| IP Rating: |
IP40 |
| System Operating Platform: |
Win 7 Vista XP |
Product Description

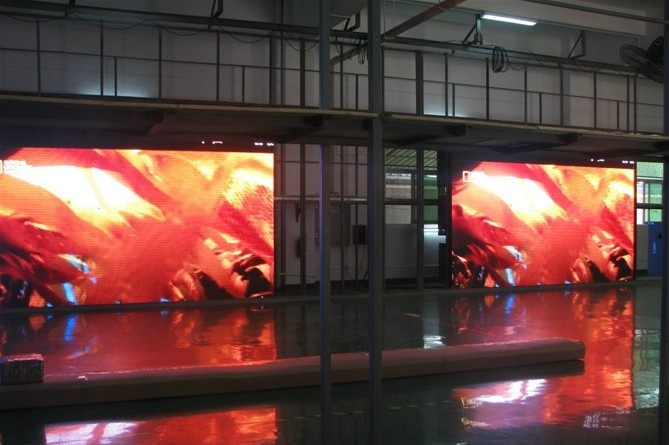

Indoor P7.62 Low Power Consumption LED Display
Features:
1) High brightness is more than 1, 800CD/sqm
2) Equality color
3) Low maintenance cost
4) Good heat emission capability
5) High definition
6) Favorable price
| Indoor P7.62 Low Power Consumption LED Display |
| S/N | Module Specification |
| 1 | Pixel Pitch | 7.62mm |
| 2 | Pixel Configuration | 1R1G1B |
| 3 | LED Type | SMD 3IN1 |
| 4 | LED Wavelength | R(620-630nm) IV(150-200mcd)
G(520-525nm) IV(260-330mcd)
B(465-470nm) IV(55-65mcd) |
| 5 | Pixel Density | 17222 pixel dots/s.q.m |
| 6 | Module Size(W X H) | 244mm x 122mm |
| 7 | Module Resolution( W X H) | 32 pixel dots x 16 pixel dots |
| 8 | Input Voltage(DC) | 5V +/- 5% |
| 9 | Cabinet Specification |
| 10 | Cabinet Size(W X H) | 976mm x 732mm |
| 11 | Cabinet Resolution(W X H) | 128 pixel dots x 96 pixel dots |
| 12 | Unit Cabinet Weight | 40kg(without packaging) |
| 13 | Thickness | 135MM |
| 14 | Whole Screen Specification |
| 15 | Screen Brightness | Min. 2000nits/s.q.m |
| 16 | Driving Mode | Constant current 1/8 driving |
| 17 | H/V Visual Angle | 120 deg./55 deg. |
| 18 | Minimum Viewing Distance | 7.62m |
| 19 | Max. Power Consumption | 650W/s.q.m |
| 20 | Average Power Consumption | 500W/s.q.m |
| 21 | Gray Level | 4096 levels |
| 22 | Frame Frequency | Min. 60Hz |
| 23 | Refresh Frequency | Min. 400Hz |
| 24 | Blind Spot Rate | Max. 1/10000 |
| 25 | Protective Scale | IP20 |
| 26 | Screen Plainness | Max. +/- 1mm |
| 27 | Power Supply Mode | AC220 +/- 10% 50Hz/AC110 +/- 10% 60Hz |
| 28 | Environment Temperature & Humidity | Temperature -20 Celsius degree~+60 Celsius degree
Humidity 10%~90% RH |
| 29 | Control System |
| 30 | Operating Environment | Operating system
Chinese/English Windows98/me/2000/NT/XP
Hardware Configuration
Pentium 300MHz or above
ROM 64M
Graphics Card Standard VGA 256mode or above
Related Software
Microsoft Media player compulsory
OFFICE2000 in case of *. doc files
RealPlayer in case of RealPlayer files |
| 31 | Software | LED Studio |
| 32 | Control Mode | Synchronization display(work with computer) |
| 33 | Control System | DVI video card + full color control card + fiber system( optional) |
| 34 | Display Content | Video DVD, VCD, TV, image, texts.etc. |
| 35 | Interface | Standard Ethernet |
| 36 | Transmission Distance | CAT5 cable:<100 m; Single fiber:<10 km |
Shenzhen Seny Technology Co., Ltd. is a professional manufacturer of LED display screens, located in Shenzhen of China, found in 2009.
We specializes in all types of LED display screens, including indoor and outdoor, mono color, bi-color, RGB full-color LED displays. As one of the professional LED Displays manufacturers in China, we combine design, production, technical support, marketing, installation and after-sales service together so as to meet the demands of market, make every client satisfied.
Our LED displays have been widely used in a variety of sites like railway station, bank, hospital, office building, outdoor advertising board, airport, post office, plaza and so on. They play an important role for enterprises' Spreading and service convenience, and become more and more popular in every corner of the world.
Wishing we can build up long-term and reliable business relationship in near future. Contact us today for more information!
