| Prod Model: |
P4mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warrany: |
Two Years Warranty After Shipping |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
4mm |
| Pixel Configuration: |
1R,1G,1B |
| Scanning Mode: |
1/16 Scan |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP40 |
| Certification: |
FCC |
| Pixel Density: |
62500 Dots/M2 |
| System Operating Platform: |
Win 7 XP Vista etc. |
Product Description

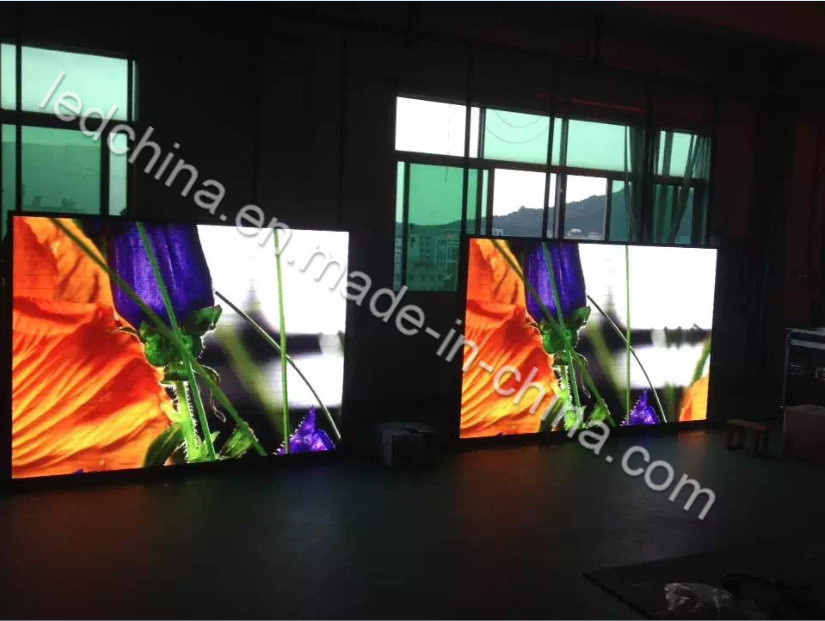

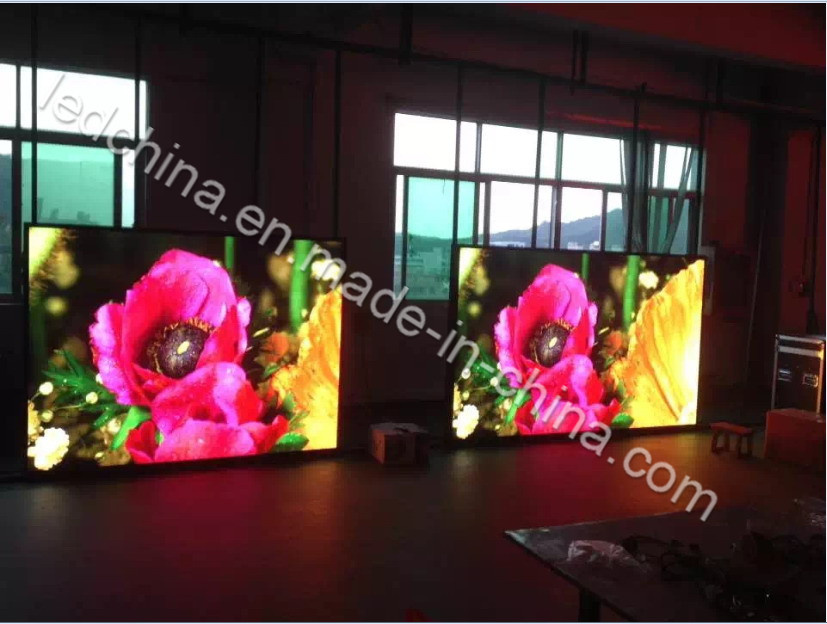

Indoor P4 High Resolution Video LED Display
Main Features:
1. Selection of high quality LED chips, antistatic strong attenuation of low intensity, high wavelength stability
2. Advanced packaging equipment to ensure quality and longevity
3. LED Display even maintain the perfect picture quality, white balance reappear and adequate brightness after prolonged use.
4. Large view, uniform color, clear, exquisite, lifelike image and text display.
| Specification |
| S/N | Item | Technical Parameters |
| LED Parameters |
| 1 | Item Name | LED Type | Brightness | Wave Length | H/V Visual Angle |
| 2 | Red LED | SMD3in1 | 120-140mcd | 620-625nm | 140º/60º |
| 3 | Green LED | SMD3in1 | 360-435mcd | 520-525nm | 140º/60º |
| 4 | Blue LED | SMD3in1 | 80-100mcd | 470-475nm | 140º/60º |
| Module Specifications |
| 1 | Pixel Pitch | 4mm |
| 2 | Pixel Configuration | SMD3in1 |
| 3 | Module Resolution | 32 x 32 pixels |
| 4 | Module Pixles | 1024 pixels |
| 5 | Module Size | 128mm X 128mm |
| Cabinet Specifications |
| 1 | Cabinet Size(W X H X D) | 512mm x 512mm x 110mm |
| 2 | Cabinet Resolution(dot) | 128 x 128 pixels |
| 3 | Module Quanity (pcs) | 16pcs |
| 4 | Cabinet Pixels | 16384 pixels |
| 5 | Pixel Density | 62500 pixels/m2 |
| 6 | Cabinet Materials | Iron or Aluminum |
| Whole Screen Specifications |
| 1 | Screen Brightness | ≥1800cd/m2 |
| 2 | Driving Method | 1/16 scan |
| 3 | Mini Viewing Distance | 4m |
| 4 | Max. Power Consumption | 1054W/m2 |
| 5 | Average Power Consumption | 420W/m2 |
| 6 | Gray Level | 8bits input, 4096 levels(212) |
| 7 | Display Color | 16M |
| 8 | Frame Frequency | ≥60Hz |
| 9 | Refresh Frequency | ≥600Hz |
| 10 | Uninterrupted Working Hours | ≥72 hours |
| 11 | Screen Life-span | ≥100,000 hours |
| 12 | MTBF | ≥5,000 hours |
| 13 | Discrete Blind Spot Rate | <1/10000 |
| 14 | Continuous Blind Spot Rate | None |
| 15 | Blind Spot Rate | <1/10000 |
| 16 | Screen Plainness | <±1mm |
| 17 | Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz |
| 18 | Environment Temperature & Humidity | Temperature:-20 Celsius~+60 Celsius
Humidity:10%~90% RH |
| 19 | Control Mode | Synchronous display with control PC by DVI |
| 20 | Control System | DVI video card + full color control card + fiber system( optional) |
| 21 | Display Content | Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
| 22 | Interface | Standard Ethernet |
| 23 | Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet cable <100m |
