| Prod Model: |
P10 |
| Tube Chip Color: |
Single Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Display Function: |
Image & Text Display |
| Average Power Consumption: |
180W / m² |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| Certification: |
CE |
| Pixel Configuration: |
1r |
Product Description

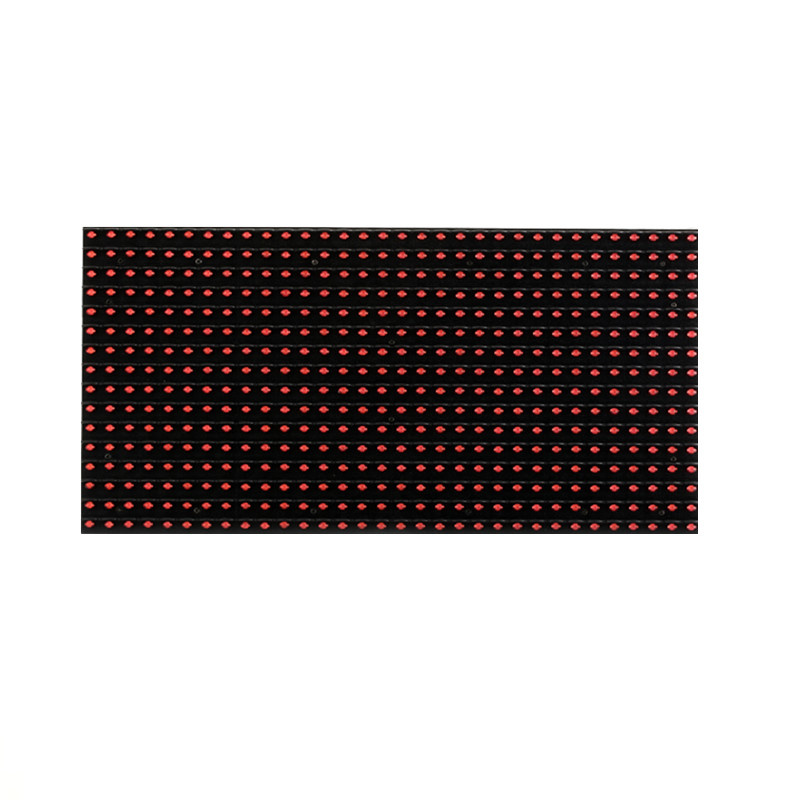

Outdoor P10 Single-Red LED Module
1. Large viewing angle
2. Light weight
3, ISO9001,CE , CCC,ROHS
4.Long lifespan
5.High brightness
Specification
| | ourdoor P10 Display Module |
| Number | Item | P10 Single Red |
| 1 | Pixel pitch | 10mm |
| 2 | Size of module (wxh) | 320mm X160 mm |
| 3 | Resolution of module (wxh) | 32 dots X16 dots |
| 4 | Density of pixel | 10000dots/m² |
| 5 | Pixel configuration | 1R |
| 6 | Red wavelength | 625± 2nm |
| 7 | Green wavelength | 525± 2nm |
| 8 | Blue wavelength | 470± 2nm |
| 9 | Colors | R |
| 10 | Best viewing distance | 10-100m |
| 11 | Horizontal viewing angle | 120° |
| 12 | power consumption | 200w/m² |
| 13 | Brightness | > 2500cd /m2 |
| 14 | Gray scale | 16bits per color |
| 15 | Color temperature | 5500k |
| 16 | Control method | Synchronization & Asynchronization |
| 17 | Driving method | 1/4 scanning |
| 18 | Frame frequency | 60Hz |
| 19 | Refresh frequency | > 300Hz |
| 20 | Working voltage | AC220V/110V± 10% |
| 21 | IP grade | IP65 |
| 22 | Working temperature | -20° C~80° C |
| 23 | MTBF | > 10000 hours |
| 24 | Life span | > 100, 000 hours |
| 25 | Defects rate. | ≤ 0.00001(Led display line standard< 0.0001)
|
Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributorship are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win
6. Chipshow can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Xiamen, China
5. Warranty time: 1years
6. Delivery time: 2-15 working days
