| Prod Model: |
P4 Indoor Video LED Display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
256mm*128mm |
| Module Weight: |
0.18kg |
| Module Resolution: |
64dots(W)*32dots(H) |
| Cabinet: |
Iron / Aluminun |
| Payment: |
T/T |
| Delivery Time: |
15-20 Working Days |
| Warranty: |
2years |
| Optimal Viewing Distance: |
4m-20m |
| Power Supply Mode: |
5V/40A *2PCS |
| Cabinet Composing: |
16PCS |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
4mm |
| Pixel Configuration: |
1R,1G,1B |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| Certification: |
CCC |
| Pixel Density: |
62500 |
| Scanning Mode: |
1/6scan 1/16scan |
| System Operating Platform: |
Win98/2000/Nt/XP |
| IP Rating: |
31 |
Product Description

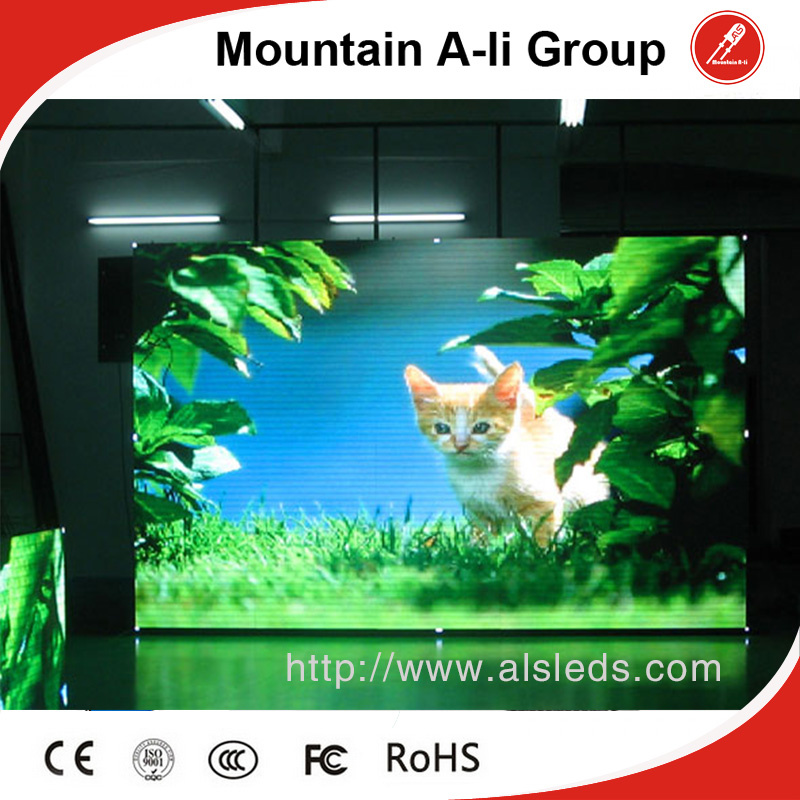

Indoor LED P4 Video Wall Display| Unit Module | Item | parameter |
| Model | P4 Indoor Video LED Display |
| Module size | 256mm*128mm |
| Pixel Pitch | 4mm |
| Pixel Density | 62500dots/m2 |
| Pixel Configuration | 1R1G1B |
| Module Resolution | 64dots(W)*32dots(H) |
| Max power | 18w |
| Module Thickness | 13.07cm / 26.63cm |
| Module Weight | 0.18kg |
| Driving Method | Constant Current Driving |
| Scan Method | 1/6scan / 1/16scan |
| Interface Way | HUB75 |
| Brightness | ≥1500cd/m2 |
| Unit Module | Cabinet Size | 512mmx512mm |
| Cabinet Composing | 16pcs |
| Power supply Mode | 5V/40A *2pcs |
| Cabinet Resolution | 128*128dots |
| Optimal Viewing Distance | 4M-20M |
| Optimal Viewing angle | 160°(W)120°(H) |
| Enviroment Temperature | Storage :-35ºC-+85ºC
work :-20ºC-+50ºC |
| Power | Relative Humidity | 10%-95% |
| Operating Voltage | AC220V±10% |
| Average power | 85W/H |
| Max power Consumption | ≤160W/m2 |
| Current | ≤20mA (Single LED ) |
| Control system | Computer | Pentium4 or above P4 or above |
| Operate system | WIN98/2000/NT/XP |
| Control Mode | Synchronization with PC |
| Main technical parameter | Driving Device | IC Constant current driving |
| Refresh Rate | ≥600HZ |
| Gray/Color | RGB each 256 grade, can display 16.7M clolor |
| MTBF | ≥9000hours |
| Power Switch | Automatic Switch |
| Display Mode | 800*600/1024*768 |
Product Advantages :1. Price Advantage: Best competitive price of the market.
2. Performance Advantage: Best brightness, High refresh rate, high consistency, big viewing angle etc .
3.Quality advantage: From material to finished product, from design to produce, we control all steps, which are the guarantee of the quality and reliability. we have the strictly 72hours old ageing test to ensure the quality of the products. 2 Years warranty . CE,ROHS,CCC, ISO9001 ,EMC ,FCC certificates .
4. Service advantage: With professional service team for 24 hours service! Rich advertising LED display engineering experience both in domestic and oversea market .
Trade terms : | 1. Payment:T/T,30% deposits before production,70% balance to be paid before delivery . |
| 2. Shipping freight are quoted under your requests . |
| 3. Shipping port: Shenzhen,mainland China . |
| 4. MOQ:1SQM . |
| 5.Package : Wooden packing and flight packing . |
| About Technology : | 1. We provide the technology training for free, which contains the operation training and maintenance training at our factory. |
| 2. We will send our engineers to your country by negotiation. |
| 3. We provide CAD drawing on how to fix up the display for free and some other expert suggestion. |
| 4. We will send our engineers to your place if we are expected after our negotiation. |

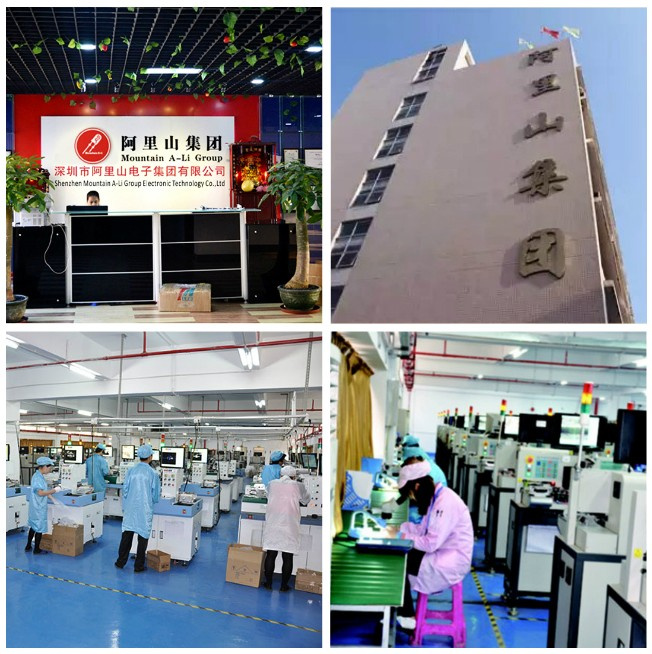

HongKong Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
