| Prod Model: |
P4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
1/16 Scan |
| Pixel Pitch: |
4mm |
| Application: |
Advertising |
| IP Rating: |
IP40 |
| System Operating Platform: |
WIN XP |
| Certification: |
CE, CCC |
| Pixel Configuration: |
SMD 3-in-1 |
| Pixel Density: |
62500dots.M2 |
Product Description

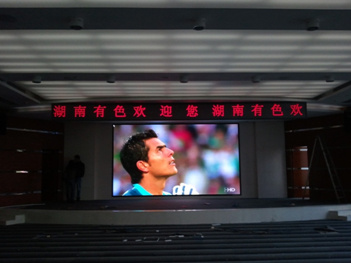

The series of display can be uesd as indoor fixed installations.
Wide viewing angles: More than 120 and up to 140 degrees both vertical and horizontal
Rich colors: 12 bit for each color depth, 68.7 billion colors
High refresh rate: No scan lines seeing from camera.
High reliability: High quality material for the cabinet frame, good brand power supply units, good LEDs and drivers etc, allows high reliability of the finished products.
Convenient service: Modules design allows fast and easy service.
Slim cabinet: Slim cabinet option, allows the possibility to be installed in space limited environments.
Different LED chips option: Different levels of LED chips option meeting different demands of the customers. Nichia, CREE, Epistar, Silan and other Chinese chips brands optional.
| Item |
|
|
|
|
| Model | P4 | P5 | P7.62 | P8 |
| Pixel pitch | 4mm | 5mm | 7.62mm | 8mm |
| Pixel configulation | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| LED type | SMD2020 | SMD3528 | SMD3528 | SMD3528 |
| Module size | 256*128mm | 160*160mm | 244*122mm | 256*128mm |
| Module resolution | 64*32 | 32*32 | 32*16 | 32*16 |
| Cabinet resolution | 128*128 | 128*128 | 128*128 | 128*128 |
| Cabinet size | 512*512mm | 640*640mm | 976*976mm | 1024*1024mm |
| Density | 62500dots/m2 | 40000dots/m2 | 17222dots/m2 | 15625dots/m2 |
| Brightness | 1600NIT | 2000NIT | 1600NIT | 1400NIT |
| Scan method | 1/16 | 1/8 | 1/8 | 1/8 |
| Best view distance | more than 3m | more than 4m | more than 6m | more than 7m |
| Max. power consumption | 720W/m2 | 750W/m2 | 680W/m2 | 650W/m2 |
| Ave. power consumption | 380W/m2 | 350W/m2 | 340W/m2 | 320W/m2 |
| Weight | 35kg/m2 | 35kg/m2 | 45kg/m2 | 45kg/m2 |
| Cabinet weight | 37kg | 15kg | 43kg | 47kg |
| Refresh rate | 1200Hz | 1600Hz | 1600Hz | 1600Hz |
