| Prod Model: |
CXMLCD-46 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Indoor |
| Aspect Ratio: |
16:9 |
| Feature: |
Support TV Function |
| Interface Type: |
DVI |
| Screen Size: |
46'' |
Product Description

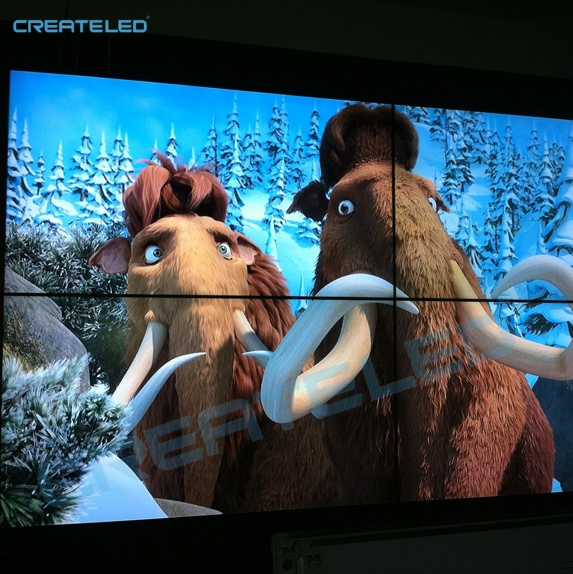

Super narrow-bezel 46'' LCD panels, with high quality and original import from Sumsang in Korea, super bezel 6.7mm for both panes. Unlike plasma technology, LCDs have less power consumption, more flexible and scalability functions. With different usage, we have two types different brightness for customer to choose, 700 nits and 450 nits.
46'' LCD Video Wall/LCD Display Screen:
MTBF hr: Min. 50K
Brightness: 700 nits / 450 nits
Number of pixels: 1366 x 768
Contrast Ratio: 4500: 1
Bezel width: 6.7mm
Power consumption: 250W
Signal Input / output: DVI, RGB, S-video, Composite, Component, HDMI.
|
COMPONENTS |
ITEM |
CXMLCD-46(450mcd)SPECIFICATION |
|
Panel |
Mode |
46'' |
|
Pixel Pitch |
0.7455(H)x0.7455(V) |
|
Pixel Arrangement |
RGB vertical strip |
|
Active Display Area |
1,018.353(H) x 572.544(V) |
|
Resolution |
1,366x768 pixels |
|
Luminance of White (Typ.) |
450 cd/m² |
|
Contrast |
4, 500 : 1 |
|
Viewing Angle |
178/178 |
|
Response Time (G-to-G) |
8ms |
|
Color |
8 bit - 16.7M |
|
ConstantColour Range |
72% |
|
Display |
Dynamic Contrast |
10, 000 : 1 |
|
Horizontal-scanning Frequency |
30kHz ~ 81kHz |
|
Vertical-scanning Frequency |
56Hz ~ 85Hz |
|
Pixel Frequency (Max.) |
148.5MHz |
|
Connectivity |
Input |
RGB |
D-SUB, DVI-D |
|
Vedio |
CVBS, HDMI1, HDMI2 |
|
Audio |
RCA(L/R) , Stereophonic sound port |
|
Output |
RGB |
DVI-D (loop output) |
|
Vedio |
N/A |
|
Audio |
Stereophonic sound port |
|
Power output |
5V (for SBB) |
|
External Control |
RS232C (input / output), RJ45 |
|
Electronic |
Type |
Internal Synchronization |
|
Electronic Source |
AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
|
Power |
Open Position |
205 W (Max.) / 185 W (typ.) |
|
Dormant |
< 2w |
|
Off State |
< 1w |
|
Mechanical Characteristic |
Panel Dimension |
Trim Size |
1025.653 (H,TYP) x 579.884 (V,TYP) x 58.53 (D, Max) |
|
Packing Size |
1148.0 x 705.0 x 200.0 (TBD) |
|
Panel Weight |
Net Weight |
20 kg |
|
Packing Weight |
120 kg (TBD) |
|
VESA Port |
600*400mm |
|
Screen Saver |
N/A |
|
Foot Stand |
Foot Stand |
|
Multimedia Mode |
N/A |
Shenzhen CreateLED Electronics Co, . Ltd. Is one of the most professional LED Screen manufacturer to provide full solutions for fixed billboard market and rental market.
Especially since year of 2010 we explored and issued the innovative newly AirLED series for rental customers, standard solution for different applications, standard solution for ourselves mass production.
About outdoor fixed installation billboard, we are promoting the full viewing angle, complete water proof and lower power drive method outdoor cabinets, which is leading the trend of this billboard market.
