| Prod Model: |
P3 |
| Cost: |
High Cost-Effective |
| Factory: |
OEM, ODM |
| Cabinet Material: |
Light-Weighted Cabinets |
| Warranty: |
2 Years |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Configuration: |
1R,1G,1B |
| Scanning Mode: |
1/16 Scan |
| Display Type: |
LED Video Display |
| Application: |
Shopping Mall, Concerts, Shows and Event, Airport |
| IP Rating: |
IP43 |
| Certification: |
CCC |
| Pixel Pitch: |
3mm, 6mm |
| Pixel Density: |
111111 Dots/Sqm, 27777dots/Sqm |
| System Operating Platform: |
Win XP, Win 7, Win 8, Win 8.1, Win10 |
Product Description
P3 / P6 Indoor Rental Die Casting LED Display with 576mm*576mm
1. Light:Cabinet size: 576mm*576mm, Weight: 8.5kg/pc.
2. Thin :Die-cast aluminum design, thin body with classic appearance.
3. Fast: Fast locks, Easy to assemble and disassemble. Compatibility: Available pixel pitch for P3 and P6.
4. Low: Excellent cooling design, no fans or air-conditioners needed , noiseless, low power consumption, cost-effective.
Contact Us Now to know more: mobile: +86 13538127671
| P3 and P6 Indoor Rental Die-Casting LED Display Datasheet |
| Pixel Pitch(mm) | 3 | 6 |
| Led Lamp | SMD2121, black led | SMD3528 |
| Pixel Density (dot/) | 111111 | 27777 |
| Moduel Size(mm) | 192*96 | 192*192 |
| Brightness(cd/) | ≥1600 | ≥1500 |
| Viewing Angle(H/V) | H:140/V:140 | H:140/V:140 |
| Cabinet Material | Die-casting Aluminium | Die-casting Aluminium |
| Cabinet Size(W*H*T,mm) | 576*576*80 | 576*576*80 |
| Cabinet Weith(KG) | ≈9 | ≈9 |
| Fresh Rate | 1600 | 1600 |
| Contrast Rate | 1:2000 | 1:2000 |
| Driving Way | 1/32 constant driving | 1/16 constant driving |
| Input Power Frequency | 50/60Hz | 50/60Hz |
| Input Voltage | AC 110V, 220V,110V-220V | AC 110V, 220V,110V-220V |
| Screen Power Consumption(W/) | Max:≈380; Average:≈160 | Max:≈350; Average:≈120 |
| LEDs Lifetime(H) | >100,000 | >100,000 |
| Operating Temperature | -20ºC~+50ºC , 10%~90%RH | -20ºC~+50ºC , 10%~90%RH |

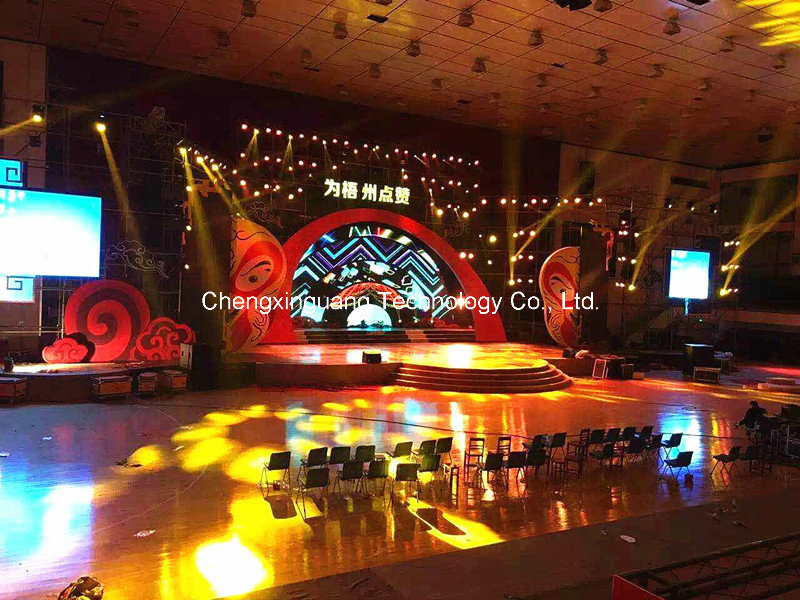

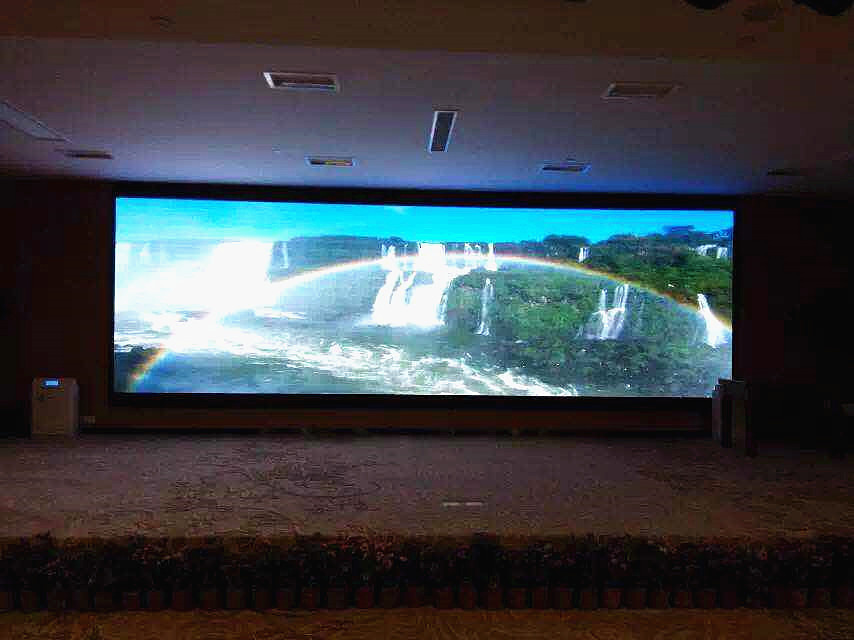

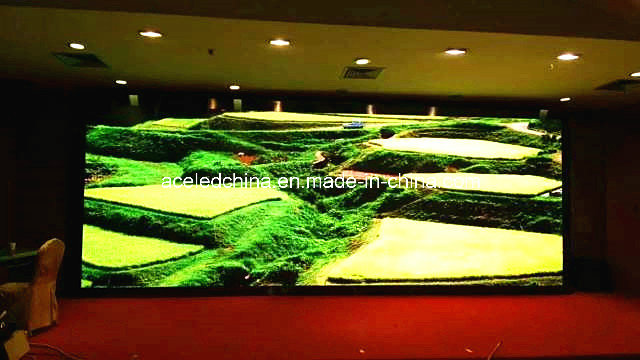

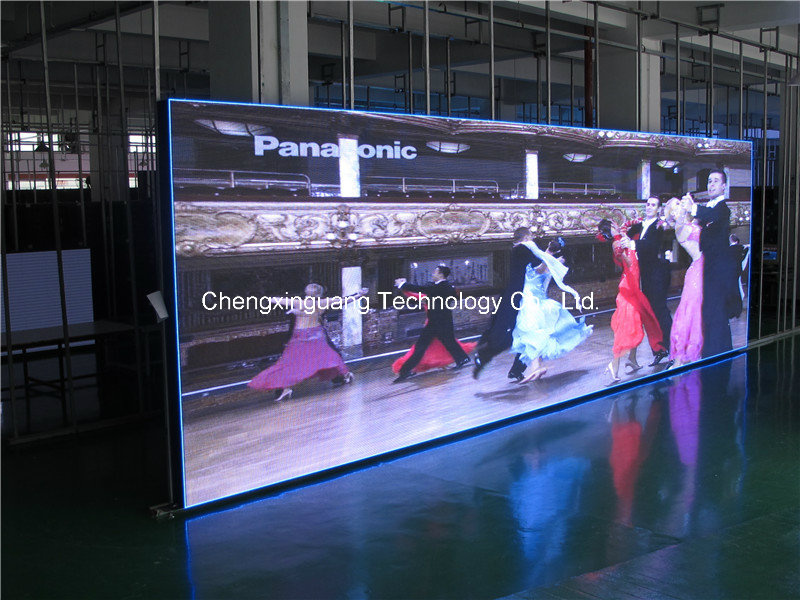

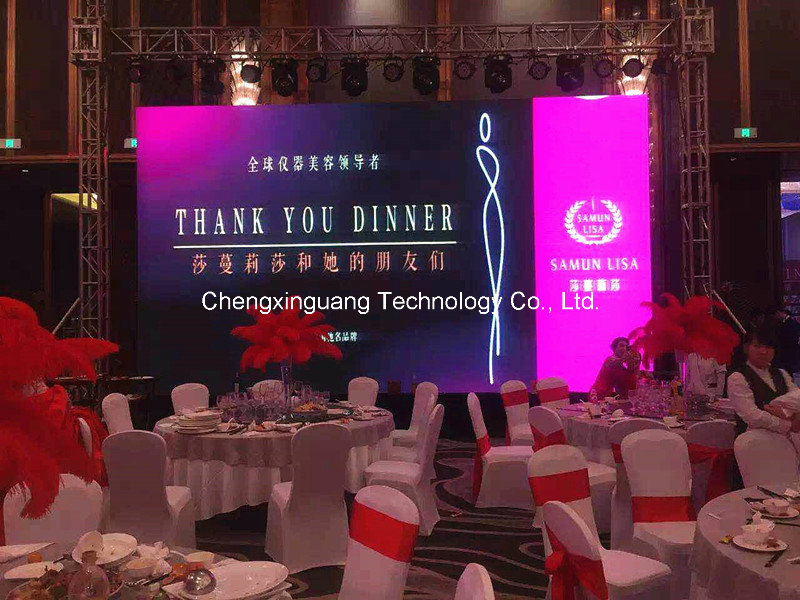

Application Areas:
Indoor advertising, digital billboards, advertising in big companies
1. Sport stadium, fields, and playgrounds.
2. Airports, bus stations and railway passenger terminals.
3. Facades of shopping malls, department stores, banks and car dealerships.
4. Architecture and social projects, information systems in cities.
5. Show-business, concerts, festivals, motor shows and other public events.
Why Chengxinguang(CXG) LED Display 1. Competitive Price
We are middle-sized Chinese local factory, maybe you can see that from our so Chinese name of "Chengxinguang", unlike the internationalized name of foreign trade company. Besides, we control our cost very well and don't have huge management cost like top companies, so that we can give the real benefits to our customers. 2. Close Relationships with Raw Material ProvidersFor our bosses have been in the key positions at the top led display factory since 2004, we have very close and strategic relationship with the raw material providers, which support the stable quality of our products. 3. Quality ControlFrom raw materials to finished product, from design to produce, we control all steps, which are the guarantee of the quality and reliability.
Chengxinguang Technology Co., Ltd (Brand: ACE LED) is located in Shenzhen, China, a major production base of global LED display screen industry. Chengxinguang is a professional LED display screen manufacturer. It provides professional and customized solutions on full color LED display screen, rental LED display, outdoor electronic LED signs, indoor LED displays, LED curtain display, moving message boards, variable message sign and video boards etc.
Chengxinguang is committed to our customers and partners by providing fast and genuine service, quality and value. Now we have established business relationship with customers in Asia, America and European countries etc, and we will continue to devote ourselves to providing customers with excellent performance products, efficient and effective services around the world.
Chengxinguang uses international high-end automated production equipment and has professional management, R&D, production, quality and service teams. Besides, we also have very strong and strategic relationship with the raw material providers. All of these factors have ensured the stability and quality in our LED products, and our competitive price.
Contact us today and learn why so many customers world-wide choose Chengxinguang as their partner for LED displays.
