| Prod Model: |
x-10 |
| Tube Chip Color: |
Single Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
2R, 1G, 1B |
| Display Function: |
Image & Text Display |
| Average Power Consumption: |
180W / m² |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| Certification: |
CE |
Product Description

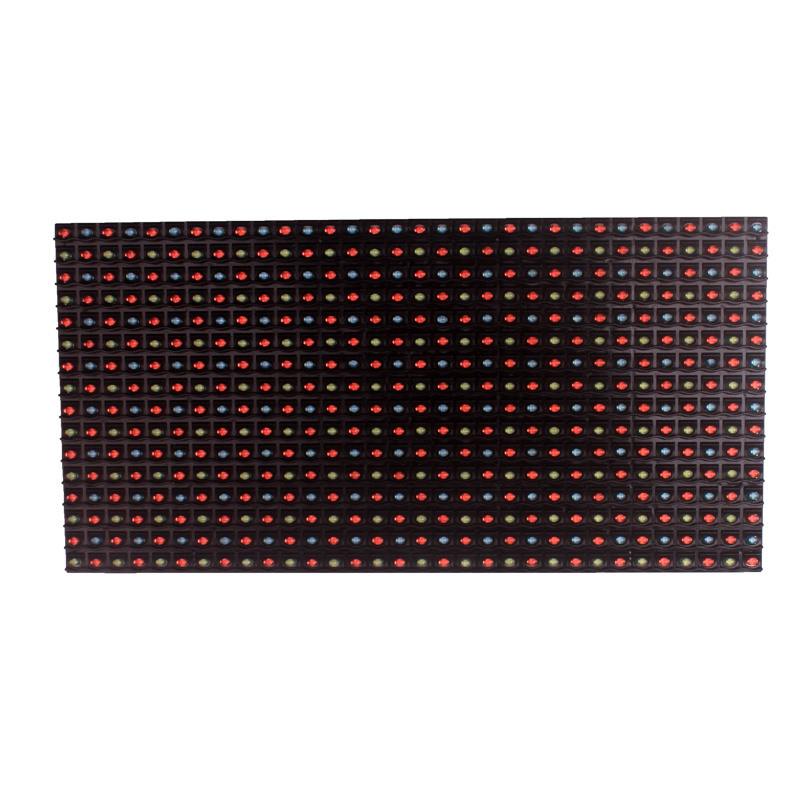

indoor colorful x10 Single LED display
1. Large viewing angle
2. Light weight
3, ISO9001,CE , CCC,ROHS
4.Long lifespan
5.High brightness
Specification
| | ourdoor P10 Display Module |
| Number | Item | colorful x10 |
| 1 | Pixel pitch | 10mm |
| 2 | Size of module (wxh) | 320mm X160 mm |
| 3 | Resolution of module (wxh) | 32 dots X16 dots |
| 4 | Density of pixel | 10000dots/m² |
| 5 | Pixel configuration | 2R,1G,1B |
| 6 | Red wavelength | 625± 2nm |
| 7 | Green wavelength | 525± 2nm |
| 8 | Blue wavelength | 470± 2nm |
| 9 | Colors | R |
| 10 | Best viewing distance | 10-100m |
| 11 | Horizontal viewing angle | 120° |
| 12 | power consumption | 200w/m² |
| 13 | Brightness | > 2500cd /m2 |
| 14 | Gray scale | 16bits per color |
| 15 | Color temperature | 5500k |
| 16 | Control method | Synchronization & Asynchronization |
| 17 | Driving method | 1/4 scanning |
| 18 | Frame frequency | 60Hz |
| 19 | Refresh frequency | > 300Hz |
| 20 | Working voltage | AC220V/110V± 10% |
| 21 | IP grade | IP65 |
| 22 | Working temperature | -20° C~80° C |
| 23 | MTBF | > 10000 hours |
| 24 | Life span | > 100, 000 hours |
| 25 | Defects rate. | ≤ 0.00001(Led display line standard< 0.0001)
|
