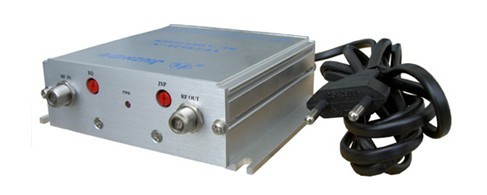

Indoor Amplifier YFT833CF-S

Name: Indoor Amplifier YFT833CF-S
Brand: ec-portal.com
SKU: 695814685
Availability: InStock
Rating: 4.4 (54 reviews)

Price:	Negotiable
Trade Terms:	any
Min Order:	1 /Piece
Pay Type:	T/T

Send Inquiry

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	CATV（Cable Television）Equipment

Product Description

Features
High quality Chinese amplifier module.
33dB gain.
Adjustable attenuator.
Adjustable equalizer.

RF	Unit	Specifications
Frequency	MHz	47~862
Gain	dB	33
Suggested Input Level	dBμ V	68~72
Number of Outputs	-	1, F connector
Return Loss	dB	≥ 12
Flatness	dB	± 0.75
Noise Figure	dB	≤ 8
CSO	dB	≥ 60
CTB	dB	≥ 60
Equalizer Range	dB	10
Attenuator Range	dB	20
Others
Power Supply	V	AC 90~265 V
Power	W	≤ 3.5
Size	mm	130x110x40

We are professional CATV products manufactory, which stablished in 1958, we have 52 years of experience in developing and manufacturing CATV systems. Our sales network covers China, Southeast Asia, the Middle East, Europe, and the US.

Our product range includes:
1. Full DVB-C digital headend equipment/software/STB, and solution.
2. Full Gepon/EOC equipments, and solution.
3.1550/1310nm Optical euquipments.
4. Optical workstations, Nodes and receivers.
5. Optical devices and accessories.
6. RF modulators.
7. Trunk and line amplifiers.
8.5-1, 000MHz taps/splitters.
9. Satellite Dish antennas.
10. C/Ku band LNBs.
11. Coaxial and optical cables.

All operations at our 410, 000 square meter facility are ISO 9001 certified. 5600 employees, 100 R&D staff, and 500 engineers are ready to satisfy your requirements. We have an annual capacity of 2, 000, 000 terminal equipment and 80, 000 network equipment.
