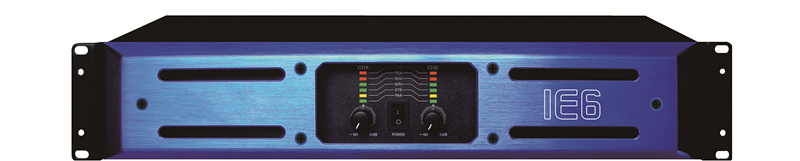

| Prod Model: |
IE6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Blue |
| Power: |
600W |
| Height: |
2u |
| Channel: |
2 Channel |
| Input Sensitivity: |
32db |
| Voltage Gain: |
0.775V/0dBm |
| Certificate: |
CE |
| Type: |
Professional Amplifier |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Sound Channel: |
2.1 |
| Usage: |
Concerts |
| Output Number: |
2 |
| Voltage: |
AC100V~220V |
| Conductive Mode: |
H |
Product Description
As an OEM factory for many famous company ,we are sure we can provide you the satisfied products ,and we will do our best to provide you best seller products .
THD+N |
Rate power,1KHz |
<0.025% |
Smpte IMD |
Rate power,60Hz/7kHz4/1 |
<0.075% |
Frequency response |
Rate power,20Hz-20kHz |
< +/- 0.25dB |
Phase response |
Rate power,20Hz-20kHz |
< +/- 8 Degree |
Signal to noise ratio |
1KHz,0.775V input, A weight, |
>110dB |
Damping factor |
Rate power,63Hz |
>1500 |
Controlled slew rate |
1KHz Tone burst,40dB Gain |
>100V/us |
Input impedance |
Rate power,1KHz,Balanced input |
20kohm |
Lowest loaded impedance |
Stereo |
>1.6 ohm |
|
Bridge |
>3.2 ohm |
Dimensions |
|
88mm X 482mm X 400mm |
Stereo
8ohm | Stereo
4ohm | Stereo
2ohm | 8ohm
bridge | 4ohm
bridge | 2ohm
parallel | 1ohm
parallel | Net weight | Output voltage | Voltage gain | Power cur. draw(over loading) |
| 1400W | 2100W | 2800W | 4200W | 5600W | 4200W | 5600W | 24kg | 187v | X137 | 3500VA/17A |
| 1200W | 1800W | 2400W | 3600W | 4800W | 3600W | 4800W | 18kg | 173v | X126 | 3000VA/13A |
| 1000W | 1500W | 2000W | 3000W | 4000W | 3000W | 4000W | 17kg | 158v | X115 | 2500VA/11A |
| 800W | 1200W | 1600W | 2400W | 3200W | 2400W | 3200W | 16kg | 141v | X103 | 2000VA/8.8A |
| 600W | 900W | 1200W | 1800W | 2400W | 1800W | 2400W | 15kg | 122v | X89 | 1500VA/6.6A |
| 400W | 600W | 800W | 1200W | 1600W | 1200W | 1600W | 14kg | 100v | X73 | 1000VA/4.4A |
| 300W | 450W | 600W | 900W | 1200W | 900W | 1200W | 13kg | 85v | X62 | 760VA/3.3A |
| 200W | 300W | 400W | 600W | 800W | 600W | 800W | 12kg | 74v | X56 | 600VA/2.6A |
