| Prod Model: |
IF1T-R4A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
for Refrigerate |
| Cooling Method: |
Direct Cooling |
| Name: |
Flake Ice Machine |
| Certification: |
CE |
| Condition: |
New |
| Ice Shape: |
Flake Ice |
Product Description

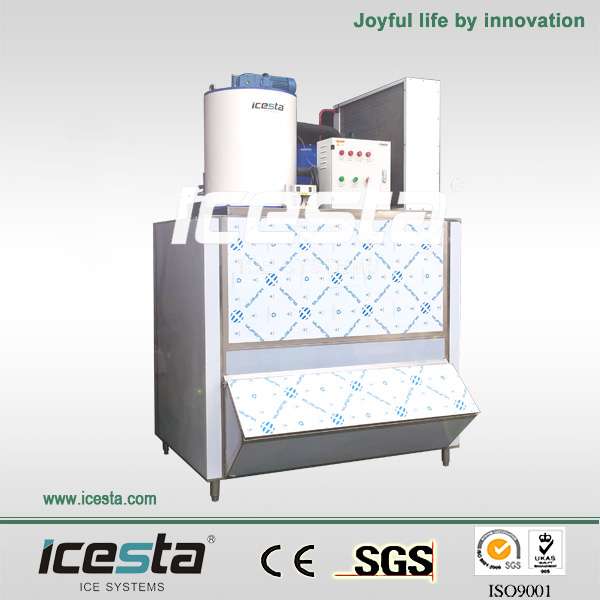

ICESTA storage bin portable ice maker
Basic features:
A. Superb Stability and reliability, long use life.
B. User-friendly design, intellectualized PLC touch-screen controller
The intellectualized PLC touchscreen control system, user-friendly designed, which is very convenient for operator. The intellectualized historical failure record-function and guidance of trouble-shooting makes easier and simple operation and maintenance.
C. Sub-cooled ice, excellent fast cooling in few minutes
D. Low maintenance and operation cost
Super performance offers trouble-free operation, with much less maintenance probability than other brands of ice flakers.
E. Energy-efficient and cost saving

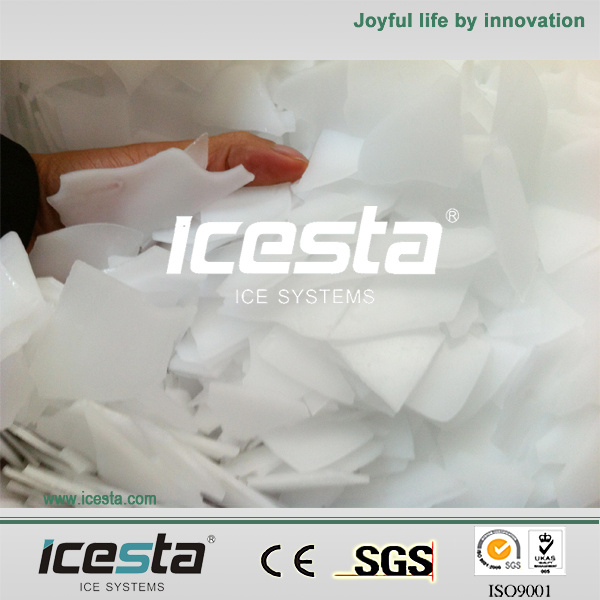

Main functions of Flake Ice:
Low temp. (-8C) Dry and sanitary
Large contact area Good mobility
Always used in the field of aquatic food & meat product processing, leather processing, fowl butchering, dye chemical industry, supermarket or seafood restaurant or mines...Etc for its clean ice and convenience as well as low cost to keep food fresh. The flake ice machine is warmly welcomed for its clean, shapeliness, whiteness, glittering and translucent as well as low temperature to firstly keep fresh such as fish, meat and chicken then show a good view to the visitor and customers.
Industry Applications
Supermarkets
Meat processing
Aquatic food processing
Fowl slaughtering
Leather industry
Dye chemical industry
Temp. Reduction of Mine
Bio-pharmacy
Laboratories
Medical facilitie
Deep-sea fishing
Concrete construction project
Product details:
TOP-Quality Ice Making Evaporator (Drum)
*UNIQUE Strict ICESTA quality control system (ERP SYSTEM controlled)
*Delicate welding technics with X-RAY. / Never leak
*SS 304 (stainless steel) Ice making drum (generator)
*All the material meet the HACCP request.
*Stainless steel cutters.
*Energy-efficient & high-sufficiency for ice production
----With the unique water distribution pan and air mouth, pure water evenly flows to the tube wall of the evaporator spirally, which improves the efficiency of heat transfer.
----As soon as ice off, the water of low temp. Is using for ice-making, which saving energy & increasing the drum volume of production of ice
----Air pressure control excludes the risk of rupture of the evaporator drum...
BITZER Refrigeration System
*Superb Stability and reliability, long use life.
*Energy-efficient
----Refrigeration can be used many times due to the tight, high quality refrigeration system
PATENTED H-M Control System
Unique Vivid H-M Interactive control system
Give user access to the automatic electrical system which performs sequences for freezing and thawing precisely and dependably then makes great convenience to the customer to operate the machine and settle the trouble.
1. All the running status playing live in touch-screen, convenient as your FAMILY air-conditioning.
2. Perfect failure & trouble-shooting querying system with red warning signal flicker if any failure occurred.
3. Stop-time could be set at your will.
4. The thickness of the flake ice could be adjustable with setting the icing time.
|
Model |
IF0.5T-R4A |
|
Technical parameters |
Danfoss |
|
Compressor Model |
3HP |
|
Ice production |
0.5t/24h |
|
Refrigeration Capacity (KW) |
3.3 |
|
Evaporating Temp (C) |
-20 |
|
Condensing Temp (C) |
40 |
|
Total power (KW) |
2.79 |
|
Compressor Input Power (KW) |
2.2 |
|
Reducer Power (KW) |
0.18 |
|
Evaporator Pump Power (KW) |
0.09 |
|
Condensing Fan Power (KW) |
0.22 |
|
Power Supply |
3P/380V/50Hz |
|
Feed in water pressure |
0.1Mp-0.5Mpa |
|
Refrigerant |
R404a |
|
Flake ice Temp |
-5C |
|
Thickness of Ice |
1.5mm-2.2mm |
|
Standard Ambient Temp |
25C |
|
Standard water feed temp |
20C |
|
water Consumption (M3/h) |
0.02 |
|
Feeding tube |
1/2" |
|
Net weight of unit |
300KG |
|
Dimensions of unit (mm) |
1280*800*800 |
|
Size(With bin) |
1280*1082*1850 |

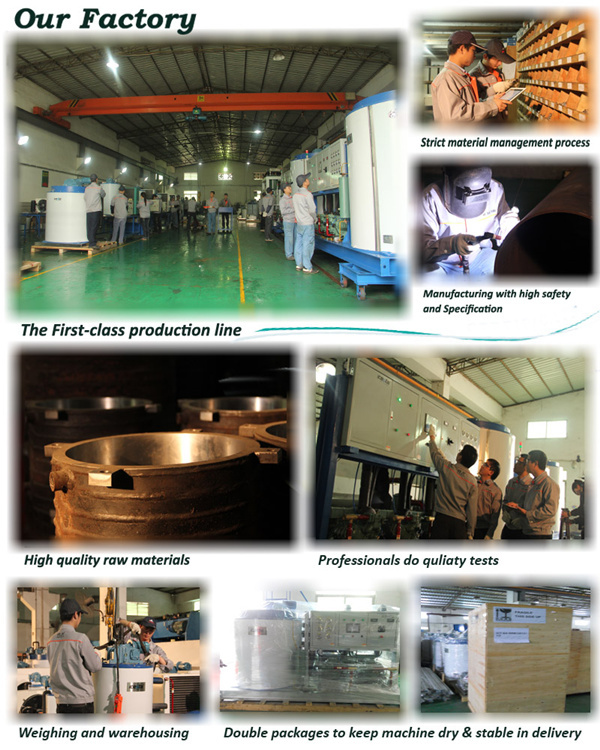

Shenzhen Brother Ice systems Co., Ltd (ICESTA for short) located in Shenzhen, China. It is a professional manufacturer and exporter who specializes in designing and supplying innovative ice solutions worldwide with its own product ICESTA ice machines.
Owned senior professional refrigerating team, modern operating conception, ordered efficient management model, and global strategy, ICESTA has found a substantial base to tend towards the globe market, then play an important role in the fresh keeping and cooling in the field as aquatic food & meat processing, ocean-going fishing, concrete construction project, large supermarket and chain stores, dye chemical industry, mining and medical facilities, etc.
In line with our customer-oriented philosophy, ICESTA management is actively aligning its business structure to well meet customer needs with a wide range of products, excellent quality as well as credible service. Maintained strong focus as a professional exporter, ICESTA will strive itself to create maximum value for our esteemed clients.
With the spirit of "Revolution, Challenge, reputation, Improvement", we are supporting plenty of worldwide companies with OEM/ODM service. Welcome to contact with us, we will provide you sincere service and most reasonable price.
