| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Cube Ice Machine for Coffee House |
| Ice Shape: |
Granule |
| Control: |
Electric |
| Power: |
200W-400W |
| Structure: |
Integral Type |
| Material: |
Stainless Steel |
| Application: |
Commercial |
| Condensing Mode: |
Air-Cooled |
| Filtering Device: |
With Filtering Device |
| Automatic Cleaning Device: |
With Automatic Cleaning Device |
Product Description

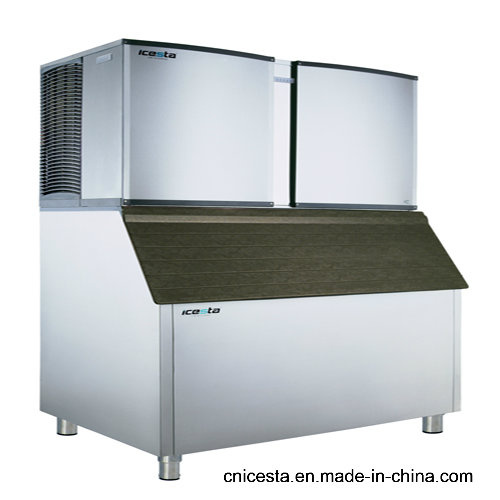

Cube ice maker is a whole with ice bin and ice maker together and holding very small space.
TECHNICAL DATA:
The technical data based on 20° C ambient temp. 10° C water inlet temp.
Power supply: 1P/220V/50Hz. 3P/380V/50Hz
The ice shape: Square (cube)
Cooled mode: Air-cooled or water cooled
Refrigerant: R404A/R134A
Evaporating temp. -15° C
Condensing temp. 54.5° C
Max water inlet pressure: 0.55Mpa
ICE SIZE:
---Square ice: 2.22*2.22*2.22
---Half square: 0.95*2.96*2.22
---Big square: 2.58*2.58*2.22
| Model | SIZE(cm) | Ice Shape | Max ice-making
Output(24hrs) | Total Power | Storage Capacity | Cooled mode |
| Width*depth*hight |
| IC-65 | 50*56*78 | Cube Ice | 65lbs/32kg | 420w | 18kg | Air |
| IC-80 | 50*56*78 | Cube Ice | 80lbs/45kg | 480w | 18kg | Air |
| IC-110 | 67*67*80 | Cube Ice | 110lbs/52kg | 500w | 18kg | Air |
| IC-150 | 67*67*80 | Cube Ice | 115lbs/68kg | 540w | 39kg | Air |
| IC-210 | 67*67*98 | Cube Ice | 210lbs/105kg | 650w | 39kg | Air/Water |
| IC-270 | 67*67*98 | Cube Ice | 270lbs/125kg | 700w | 39kg | Air/Water |
Shenzhen Brother Ice systems Co., Ltd (ICESTA for short) located in Shenzhen, China. It is a professional manufacturer and exporter who specializes in designing and supplying innovative ice solutions worldwide with its own product ICESTA ice machines.
Owned senior professional refrigerating team, modern operating conception, ordered efficient management model, and global strategy, ICESTA has found a substantial base to tend towards the globe market, then play an important role in the fresh keeping and cooling in the field as aquatic food & meat processing, ocean-going fishing, concrete construction project, large supermarket and chain stores, dye chemical industry, mining and medical facilities, etc.
In line with our customer-oriented philosophy, ICESTA management is actively aligning its business structure to well meet customer needs with a wide range of products, excellent quality as well as credible service. Maintained strong focus as a professional exporter, ICESTA will strive itself to create maximum value for our esteemed clients.
With the spirit of "Revolution, Challenge, reputation, Improvement", we are supporting plenty of worldwide companies with OEM/ODM service. Welcome to contact with us, we will provide you sincere service and most reasonable price.
