| Prod Model: |
IF30T-R4A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE |
| Condition: |
New |
| Ice Shape: |
Flake Ice |
Product Description

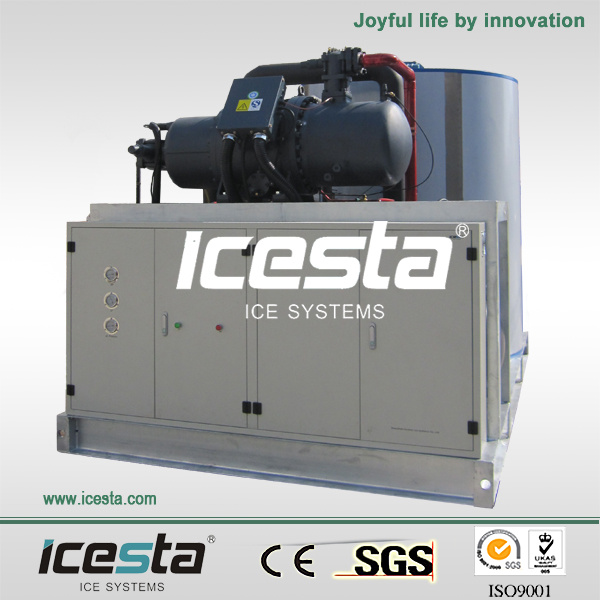

ICESTA Flake ice machine:
Always used in the industrial field such as field aquatic food & meat product processing, leather, fowl butchering, dye chemical industry, mines, concrete construction project, etc.
Advantage:
A. Low failure and long working life: The System always runs well more than 35000 hours
B. Perfect stability: In normal condition remains good output, and the special types run well in execrable conditions.
C. High efficiency & capacity
D. Superior safety and reliability: Dynamic micro-computer control system
E. Low energy consumption
Power supply: 3P/ 380V / 50Hz
The ice thickness: 1.6-2.3 mm
You can chose the different types to meet your request.
1) Cooled Model: Air-cooled, and Water-cooled
2) Refrigerant: R22/ R404A / R717
|
Model |
IF30T-R2W |
IF40T-R2W |
|
Technical parameters |
Hanbell |
Hanbell |
|
Compressor Model |
RC2-410B-Z(180HP) |
RC2-550B-Z(240HP) |
|
Ice production |
30t/24h |
40t/24h |
|
Refrigeration Capacity (KW) |
179.7 |
236 |
|
Evaporating Temp (C) |
-20 |
-20 |
|
Condensing Temp (C) |
38 |
38 |
|
Total power (KW) |
90 |
125 |
|
Compressor Input Power (KW) |
78.5 |
104 |
|
Reducer Power (KW) |
0.75 |
0.75 |
|
Evaporator Pump Power (KW) |
0.75 |
1.5 |
|
CTP Input Power (KW) |
7.5 |
15 |
|
Cooling Tower Fan input Power (KW) |
1.5 |
2.8 |
|
Power Supply |
3P/380V/50Hz |
3P/380V/50Hz |
|
Feed in water pressure |
0.1Mp-0.5Mpa |
0.1Mp-0.5Mpa |
|
Refrigerant |
R22 |
R22 |
|
Flake ice Temp |
-5 |
-5 |
|
Thickness of Ice |
1.5mm-2.2mm |
1.5mm-2.2mm |
|
Standard Ambient Temp |
25 |
25 |
|
Standard water feed temp |
20 |
20 |
|
Water Consumption (M3/h) |
1.95 |
2.1 |
|
Feeding tube |
2*3/4" |
2*3/4" |
|
Net weight of unit |
5200KG |
6200KG |
|
Dimensions of unit (mm) |
4000*2000*2450 |
4000*2000*2950 |
