| Prod Model: |
IF5T-R4W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Ice Flake Maker |
| Certification: |
CE |
| Condition: |
New |
| Ice Shape: |
Flake Ice |
Product Description

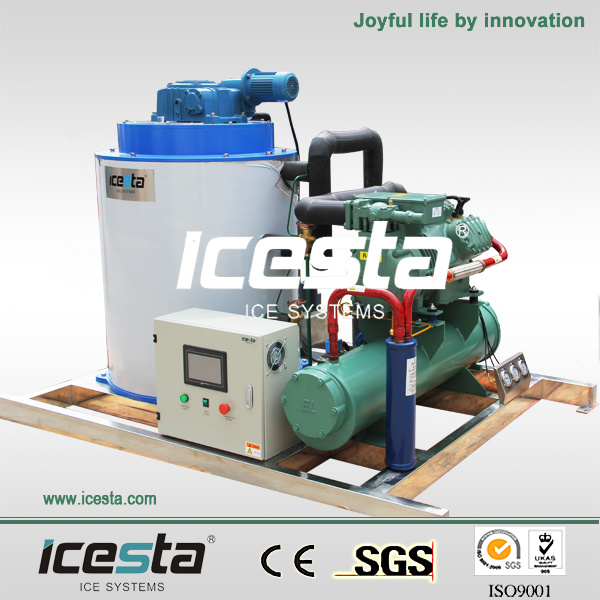

ICESTA 5000kgs water cooled flake ice makerAlways used in the industrial field such as field aquatic food & meat product processing, leather, fowl butchering, dye chemical industry, mines, concrete construction project, etc.
Advantage:A. Low failure and long working life: The System always runs well more than 35000 hours
B. Perfect stability: In normal condition remains good output, and the special types run well in execrable conditions.
C. High efficiency & capacity
D. Superior safety and reliability: Dynamic micro-computer control system
E. Low energy consumption Power supply: 3P/ 380V / 50HZ The ice thickness: 1.5-2.2 mm You can chose the different types to meet your request. 1) Cooled Model: Air-cooled, and Water-cooled 2) Refrigerant: R22/ R404A / R717
|
Model |
IF5T-R4W |
IF5T-R4W |
|
Technical parameters |
BOCK |
bitzer |
|
Compressor Model |
25HP |
25HP |
|
Ice production |
5t/24h |
5t/24h |
|
Refrigeration Capacity (KW) |
40.5 |
36.6 |
|
Evaporating Temp (C) |
-20 |
-20 |
|
Condensing Temp (C) |
38 |
38 |
|
Total power (KW) |
25.94 |
22.84 |
|
Compressor Input Power (KW) |
23.4 |
20.3 |
|
Reducer Power (KW) |
0.37 |
0.37 |
|
Evaporator Pump Power (KW) |
0.12 |
0.12 |
|
CTP Input Power (KW) |
1.5 |
1.5 |
|
Cooling Tower Fan input Power (KW) |
0.55 |
0.55 |
|
Power Supply |
3P/380V/50Hz |
3P/380V/50Hz |
|
Feed in water pressure |
0.1Mp-0.5Mpa |
0.1Mp-0.5Mpa |
|
Refrigerant |
R404a |
R404a |
|
Flake ice Temp |
-5 |
-5 |
|
Thickness of Ice |
1.5mm-2.2mm |
1.5mm-2.2mm |
|
Standard Ambient Temp |
25 |
25 |
|
Standard water feed temp |
20 |
20 |
|
Water Consumption (M3/h) |
0.38 |
0.38 |
|
Feeding tube |
3/4" |
3/4" |
|
Net weight of unit |
1050KG |
1050KG |
|
Dimensions of unit (mm) |
1800*1500*1470 |
1800*1500*1470 |
Shenzhen Brother Ice systems Co., Ltd (ICESTA for short) located in Shenzhen, China. It is a professional manufacturer and exporter who specializes in designing and supplying innovative ice solutions worldwide with its own product ICESTA ice machines.
Owned senior professional refrigerating team, modern operating conception, ordered efficient management model, and global strategy, ICESTA has found a substantial base to tend towards the globe market, then play an important role in the fresh keeping and cooling in the field as aquatic food & meat processing, ocean-going fishing, concrete construction project, large supermarket and chain stores, dye chemical industry, mining and medical facilities, etc.
In line with our customer-oriented philosophy, ICESTA management is actively aligning its business structure to well meet customer needs with a wide range of products, excellent quality as well as credible service. Maintained strong focus as a professional exporter, ICESTA will strive itself to create maximum value for our esteemed clients.
With the spirit of "Revolution, Challenge, reputation, Improvement", we are supporting plenty of worldwide companies with OEM/ODM service. Welcome to contact with us, we will provide you sincere service and most reasonable price.
