| Prod Model: |
IT3T-R2A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Industrial |
| Control: |
Electric |
| Material: |
Stainless Steel |
| Ice Shape: |
Tube |
Product Description

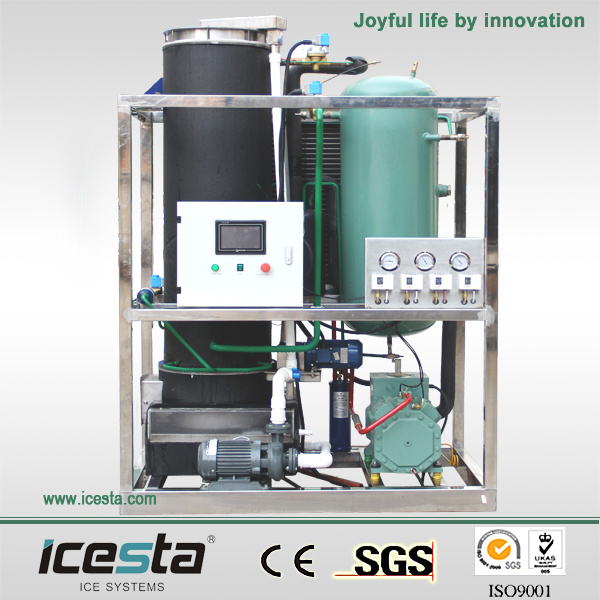

ICESTA Tube ice making machine (plant)_ICESTA innovative 1-80ton/hrs series tube ice machine
Mainly apply for human consumption such as freeze drinks, mix wines, cool food stuffs, and industrial sphere like chemical cooling, food processing, fisheries, poultry-processing, meat plants etc.
TOP-Quality Ice Making Evaporator(Drum)
L UNIQUE Strict ICESTA quality control system (ERP SYSTEM controlled)
L Delicate welding technics with X-ray. / Never leak
L SS 304 (stainless steel) Ice making drum (generator)
L All the material meet the HACCP request.
L Stainless steel cutters.
L Energy-efficient & high-sufficiency for ice production
----With the unique water distribution pan and air mouth, pure water evenly flows to the tube wall of the evaporator spirally, which improves the efficiency of heat transfer.
----As soon as ice off, the water of low temp. Is using for ice-making, which saving energy & increasing the drum volume of production of ice
----Air pressure control excludes the risk of rupture of the evaporator drum...
BITZER Refrigeration System
*Superb Stability and reliability, long use life.
Advanced workmanship and new technology makes high quality tube ice machine, you can always trust on. Rugged, heavy-duty design offers years of trouble-free operation.
*Energy-efficient and cost saving
The elaborately designed and equipped ice tubers offers a smooth operation, with high efficiency to fulfill the energy-saving.
PATENTED H-M Control System
Unique Vivid H-M Interactive control system Give use access to the automatic electrical system which performs sequences for freezing and thawing precisely and dependably then makes great convenience to the customer to operate the machine and settle the trouble.
L All the running status playing live in touch-screen, convenient as your FAMILY air-conditioning.
L Perfect failure & trouble-shooting querying system with red warning signal flicker if any failure occurred.
L Stop-time could be set at your will.
L The thickness of the tube ice could be adjustable with setting the icing time.
|
Model |
IT3T-R2A |
|
Daily capacity(T/24h) |
3t/24h |
|
Standard tube ice size(diameter) |
28 |
|
Refrigeration capacity(KW) |
19.8 |
|
Total power (KW) |
11.3 |
|
Compressor input (KW) |
9.1 |
|
Cutter motor Power(KW) |
0.37 |
|
Water pump power(KW) |
0.37 |
|
Air-cooled Condenser power(KW) |
1.38 |
|
Power Supply |
3P/380V/50Hz |
|
Water Pressure |
0.1Mp-0.5Mpa |
|
Refrigerant |
R22,R404 |
|
Water Pipe |
3/4" |
|
Weight |
1280KG |
|
Dimensions (mm) |
1600×1300×2200 |
