| Prod Model: |
MF1.5T-R4A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1400*950*1000 |
| Ice Shape: |
Slice |
| Control: |
Electric |
| Material: |
Stainless Steel |
| Application: |
Commercial |
Product Description
Detailed Product Description
*PLC touch screen control
*> =35000hs lifetime
*Stainless steel evaporator
*Bitzer compressor
*Danfoss electric parts

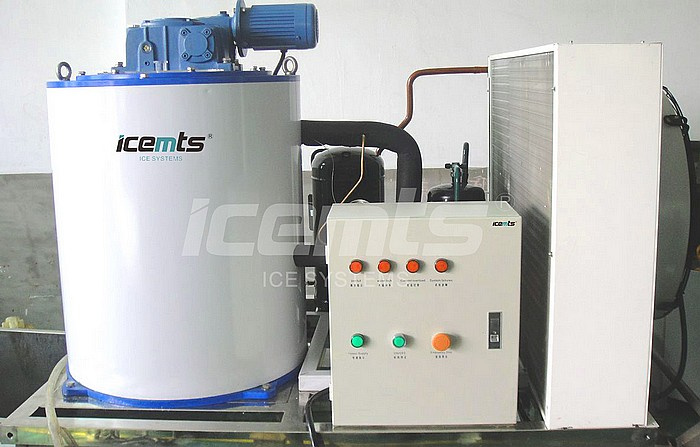

Top-Quality Edible flake ice machine
A. Superb Stability and reliability, long use life.
B. User-friendly design, intellectualized PLC touch-screen controller
The intellectualized PLC touchscreen control system, user-friendly designed, which is very convenient for operator. The intellectualized historical failure recordfunctionand guidance of troubleshooting makes easier and simple operation and maintenance. Therunning time setting function convenienced operator, saving energy and reduce cost.
C. Sub-cooled ice, excellent fast cooling
Super cold, dry, crisp, 100% subcooled ice with greater surface area and exceptional cooling power.
D. Low maintenance and operation cost
Super performance offers trouble-free operation, with much less maintenance probability than other brands of ice flakers.
E. Energy-efficient and cost saving
Compact- Design Flake Ice Machine Features
*UNIQUE Strict ICEMTS quality control system (ERP SYSTEM controlled)
*Delicate welding technics with X-ray. / Never leak
*SS 304 (stainless steel) Ice making drum (generator)
*All the material meets the HACCP request.
*Stainless steel cutters.
*Energy-efficient & high-sufficiency for ice production
----With the unique water distribution pan and air mouth, pure water evenly flows to the tube wall of the evaporator spirally, which improves the efficiency of heat transfer.
----As soon as ice off, the water of low temp. Is using for ice-making, which saving energy & increasing the drum volume of production of ice
----Air pressure control excludes the risk of rupture of the evaporator drum...
|
Model |
MF1.5T-R4A |
|
Daily Ice Production |
1.5t/24h |
|
Refrigeration Power (KW) |
9.8 |
|
Power Consumption (KW) |
7.07 |
|
Compressor Power (KW) |
6.3 |
|
Reducer Power (KW) |
0.18 |
|
Water Pump Power (KW) |
0.09 |
|
Condenser Power (KW) |
0.5 |
|
Power Supply |
3P/380V/50Hz |
|
Water Pressure |
0.1Mp- 0.5Mpa |
|
Refrigerant |
R404a |
|
Water Pipe |
1/2" |
|
Weight |
480KG |
|
Dimensions (mm) |
1400*950*1000 |
