| Prod Model: |
LZ-5000W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ice Marking Capacity(Daily): |
5 Ton/Day |
| Frozen Capacity: |
35 Kw |
| Cooling System: |
Water Cooled |
| Refrigerant: |
R22 |
| Power Supply: |
380V 50Hz 3p |
| Rated Power: |
15kw |
| Installed Power: |
15 Kw |
| Net Weight: |
1.2t |
| Dimensions(L X W X H): |
1.6 X 1.6 X 2 |
Product Description

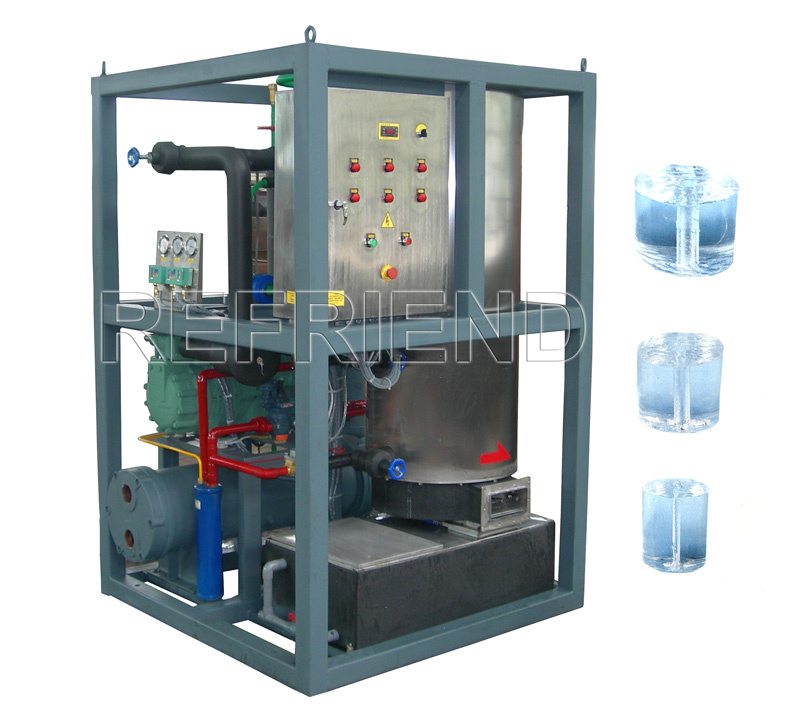

Product Name: Tube Ice Machinery
Place of Origin: China
Features:
1) Water distributors: Made up of elastic material, which creates a continuous Uninterrupted peripheral seal between the tube ends and water distributor.
2) Accumulator with insulation
3) Refrigerant: Fleon
4) Float switch
5) Freezer: High quality stainless steel for all water and ice contact surfaces providing corrosion resistance and easy for clean.
6) Cutter: Stainless steel cutters driven by gear motors are uniquely designed to produce both cylindrical and crushed ice simply by reversing the motor of the cutter using a switch on the control panel that controls this function.
7) Cutter motors: Built with heavy duty design to give years of reliable ice-sizing service.
8) Pumping tank (water pumps): Centrifugal cast in stainless steel pump large enough to circulate many times the quantity of water to be frozen producing crystal clear ice crystals.
9) Heavy duty compressor
10) Control panel: Gives user access to the automatic electrical system which performs sequences for freezing and thawing precisely and dependably year after year.
If you want something, just contact us.
We are specialist in manufacturing and supplying Flake Ice Machines, shell ice machine, fluidic ice machine, tube ice machine and block ice machine, horizontal and vertical contact plate freezer, IQF, freezing room and cold room, etc.
The range of ice making capacity of our ice machine is from 800kg/day to 100tons/day, also we can supply sea water ice machine which can be installed on the fishing boats directly.
With an energetic team and more than ten years experience in international trade, we have our own international trading company LIGHTSTAR INTERNATIONAL TRADING Co., Ltd which is one of Sourcing Management Co., Ltd. Now in providing top services to the individuals and companies that come to China for business.
