| Prod Model: |
QFI-15F~QFI-50F |
| Markets: |
Southeast Asia,Africa,Mid East,Eastern Asia |
| Capacity: |
1.5t-5t/24hrs |
| Ice Shape: |
Flake Ice |

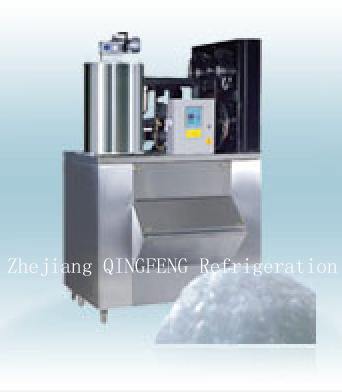

Product Description
Elaborately designed based on the feature and special requirements of supermarket fresh, lab and health care industry, implicated to the field which demands high grade of ice flake. It has features as follows:
1. Varied types, the daily production ranging from 400KGS to 50000KGS;
2. Safe operation and good reliability, all parts adopted of top-grade products of western or China market;
3. Easy operation, the digital thermos witch remotely indicate and control the ice temperature;
4. Easy installation, cooling system and cylinder are easy for installation;
5. The ice skates is a screw scraper, features low resistance, low consumption, no noise;
6. The cooling system and cylinder is automatically controlled by micro-computer, reliable and steady, reduced the possibility of damage, easy for maintenance;
7. The cylinder is made of high grade 304 stainless steel, repeatedly processed by exactitude equipment, and welded in automatic argon-arc welding, maintaining good precision and intensity.
The following table is based on the:
Evaporation Temperature: -18 degree
Power: 380V/50Hz/3HP
Refrigerant: R22 or R404A
|
Model No. |
Capacity |
Input power |
Dimension (mm) |
Machine Weight (kg) |
|
(kg/24hr) |
(kw) |
L*W*H |
|
QFI -15F |
1500 |
3.9 |
1500*1630*2360 |
455 |
|
QFI -20F |
2000 |
5.05 |
1500*1630*2375 |
490 |
|
QFI -25F |
2500 |
6.66 |
1500*1630*2450 |
560 |
|
QFI -30F |
3000 |
8.3 |
1500*1630*2495 |
585 |
|
QFI -40F |
4000 |
10.5 |
1800*1524*1600 |
560 |
|
QFI -50F |
5000 |
12.7 |
1800*1524*1650 |
640 |
Zhejiang Kingfit Environment Co., Ltd.is subsidiary of Kingfit International Group Limited in East China, founded in 1998, with total capital of USD 5.38 million of Sino-joint venture enterprise. East China factory is located at Shuige Ind. Park in Lishui City of Zhejiang Province with convenient traffic, and covers a land area of 20000sqm. Our company is constantly introducing advanced manufacturing workmanship and testing equipment, invests 5% of it gross sales amount into R&D center every year and we established tight national testing center. The products are recognized by the users from abroad and at home and entitled "the Top 10 Well-known Refrigeration Equipment in China" and "National Quality Guaranteed and Eligible Product in Refrigeration Equipment Industry" etc. Our company introduced many leading technology production lines for the manufacture of screw style chiller, box-type chiller, cooling tower, freezing dryer, high temperature heat pump, ice making machine etc. The products are exported to more than 30 countries, this is a high tech enterprise integrated scientific research, production and trade, and is also currently the largest and most professional refrigerating and heating equipment manufacturer in China.
We have passed ISO9000, CE, AS certification, gradually becoming the navigator of industrial refrigerating and heating. And received many patented technologies, such as anti-corrosion flooded screw style chiller, flooded scroll style chiller, economizer, U-type anti-corrosion evaporator, external thread titanium evaporation, ice machine etc.
We sincerely welcome customers at abroad and home to our company for cooperation and let's make contribution to the flourish and development of refrigeration equipment in China together.
