| Prod Model: |
ESD-IA6S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| RoHS, CCC, ISO9001, Fc: |
All Kinds of Specifications |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Pitch: |
6mm |
| Pixel Density: |
27,777 dots / m² |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP43 |
| Display Function: |
Advertising, Video, Picture etc |
| Certification: |
CE, FCC, RoHS, UL, ETL |
| Application: |
Indoor Advertising&Rental |
Product Description

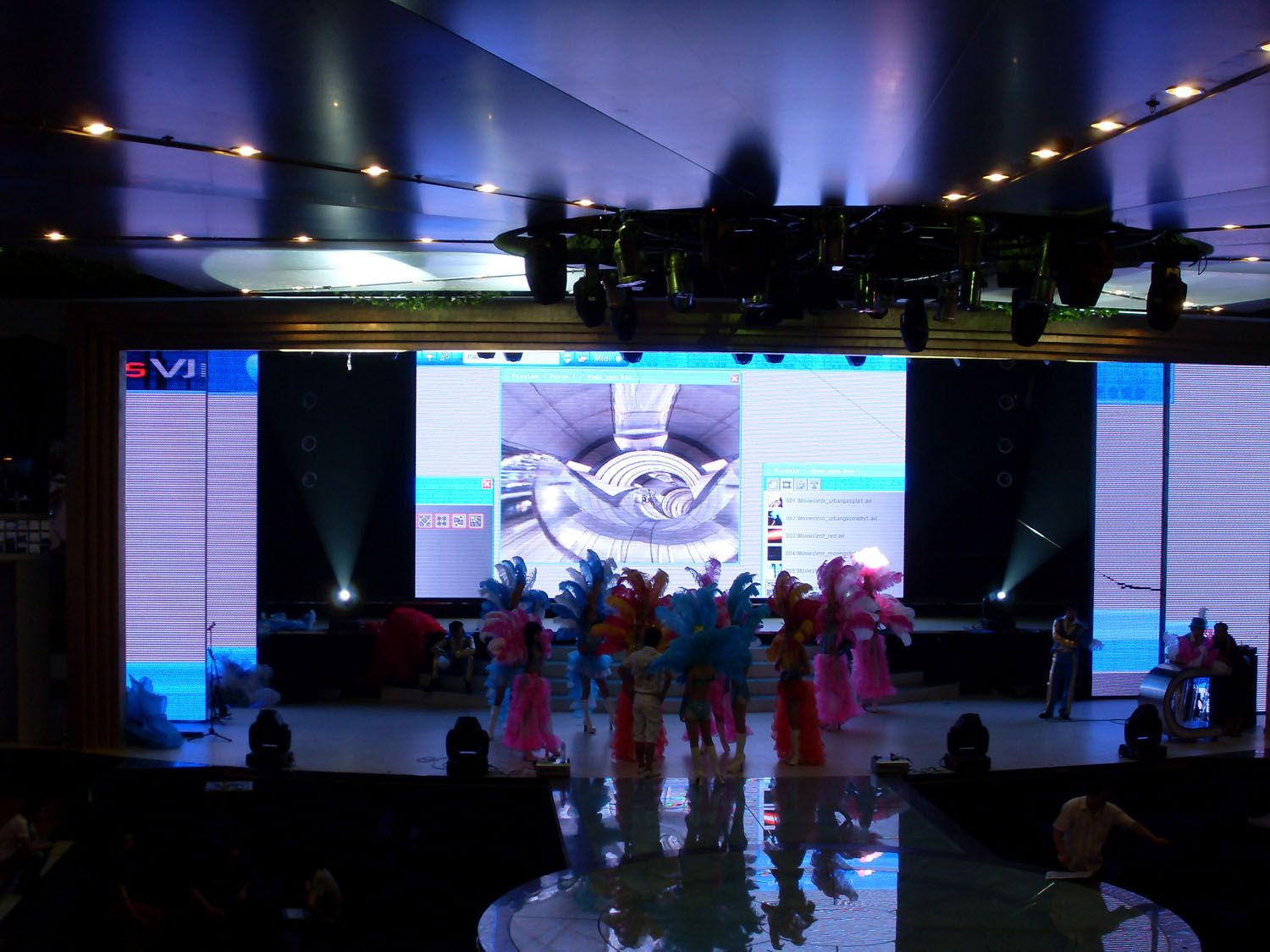

P6 Fullcolor advertising Indoor LED screen display features:
P6 indoor LED screen with quiet fan design, excellent heat dissipation, noiseless, the preference for indoor use.
P6 LED display screen concealed quick lock between the cabinets horizontally, just one switch, then all set.
Crane padlock vertically connected, convenient for installation.
High polymer flexible mask, no dazzle, better contrast ratio.
High-performance metal plate cabinet, concise cable.
The sealed type back cover, effectively prevent the wrong operation of the amateur.
|
Item |
Parameters |
|
MODULES |
model |
ESD-IA6S |
|
Pixel Pitch(MM) |
6 |
|
Physical Density(dot/M2) |
27, 777 |
|
LED Arrangment |
1R1G1B |
|
LED Type |
SMD3528 |
|
Module Size(MM*MM) |
192*96 |
|
Module Resolution(PX*PX) |
32*16 |
|
Module Power Comsumption(W) |
25 |
|
main technical parameters |
Drive Mode |
Constant Current Drive |
|
Scan Mode |
1/8 |
|
Horizontal Viewing Angle(Deg) |
140 |
|
Vertical Viewing Angle(Deg) |
140 |
|
Brightness(CD/M2) |
2200 |
|
Grey Scale |
> 4096 |
|
Refresh Rate(HZ) |
> 600 |
|
Cabinet Resolution |
128*128 |
|
Cabinet Max Power Consumption(W) |
800 |
|
Cabinet Average Power Consumption(W) |
320 |
|
Cabinet Size(MM*MM) |
768*768 |
|
Cabinet Thickness(MM) |
120 |
|
Cabinet Material |
Steel/ALU |
|
Color(M) |
> 16.7 |
|
Input Voltage |
AC 110V~220V+/-10% |
|
Refresh Frame Frequency(Hz) |
60 |
|
Protection Level |
IP43 |
|
Working Environment |
Indoor |
|
Working Temperature(Celsius degree) |
-20~+40 |
|
Storage Temperature(RH) |
10%-90% |
|
Life Span(H) |
100000 |
|
Vertical Hanging Quantity |
|
