| Prod Model: |
VT1000-3G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Is Customized: |
Yes |
| Fuel Sensor: |
Yes |
| Camera: |
Yes |
| Two Way Talking: |
Yes |
| Temperature Sensor: |
Yes |
| Free Tracking Platform: |
Yes |
| Sos Button: |
Yes |
| Data Logger: |
Yes |
| Detecting Car Door: |
Yes |
| Active RFID: |
Yes |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Screen Size: |
No Screen |
| Certification: |
CE/RoHS |
Product Description
3G GPS Tracker Support Fuel Sensor RFID Camera SD Card
(* Free GPS tracking platform lifetime * 2 years warranty * 1 day delivery * High Quality * Factory price )
Products Overview VT1000 is a most advanced and high-cost effective GPS tracker, it is equipped with ARM9 high speedy microprocessor; Supporting camera (location&driving information log on picture); Bidirectional communication; Support max 64GB SD card for storing data and pictures; 4 A/D connectors for multi fuel sensor monitoring; Support unique active RFID for automatic anti-theft and driver identification; Support OTA(upgrade over the air) for upgrading new firmware by GPRS if needed; With harsh braking&acceleration alarm and accident alarm; And many useful functions and extensibility for fleet management and vehicle security purposes. Application
*Vehicle Real Time Tracking
*Car Security/Anti-Hijack *Comprehensive fleet management
Specification
| Technical Parameters: |
| Power Supply | +9V - +35V / 1.5A |
| Backup Battery | 850mAh |
| Dimension | 104mm x 62mm x 24mm |
| Installation Dimension | 104mm x 83mm x 24mm |
| Weight | 150g |
| Operating temperature | -20° to 65° C |
| Humidity | 5% to 95% Non-condensing |
| Frequency | GSM 900/1800/1900Mhz or GSM 850/900/1800/1900Mhz |
| GPS Module | latest GPS SIRF-Star III chipset |
| GPS Sensitivity | -158Db |
| GPS Frequency | L1, 1575.42 MHz |
| C/A Code | 1.023 MHz chip rate |
| Channels | 20 channel all-in-view tracking |
| Position Accuracy | 10 meters, 2D RMS |
| Velocity Accuracy | 0.1 m/s |
| Time Accuracy | 1 us synchronized to GPS time |
| Default datum | WGS-84 |
| Reacquisition | 0.1 sec., average |
| Hot start | 1 sec., average |
| Warm start | 38 sec., average |
| Cold start | 42 sec., average |
| Altitude Limit | 18,000 meters (60,000 feet) max. |
| Velocity Limit | 515 meters/second (1000 knots) max. |
| LED | 2 LED lights to show GPS/GSM working status. |
| Flash Memory | 4MB |
| Interface | 5 digital inputs, 3 negative and 2 positive triggering; 2 analog inputs; 5 outputs. |
| Packing Measures: | |
| Neutral | Dimension (mm) | Weight (KG) | Capacity |
| Box | 225x160x55 | 0.65 | 1 set |
| Carton | 470x340x310 | 14 | 20 sets |
Features
* Tracking by SMS/GPRS (TCP/UDP)
* OTA Function
* Tracking by time/distance interval
* Two way communication (Listen & Speak)
* Real time tracking via the web-platform
* Oil leaking/Refuel Alarm
* Get position location via call/SMS
* Accident alarm
* Engine on/off detection
* Remote Engine cut off
* Built-in backup battery
* Support max 64G SD card store
* Wiretapping/remote listening
* ARM9 high speed microcontroller
* Photo with location & driving information log function
* Get location physical name via SMS & from the web-platform
* Google Map link for location via SMS, it shows your location on map via mobile phone.
* Mileage calculation with longitude and latitude via SMS; view mileage data via GPS web-based tracking centre system
* Built-in motion sensor for power & GPRS flow saving mode (sleep mode)
* Built-in 4MB memory & position logging capacity up to 26,000+ waypoints even no GPRS signal
* Can equip with RFID kit for driver identification and auto Arm/Disarm functions
(movement/towed alert, ignition alert, auto cut off engine etc)
* I/O: 5 Inputs, 5 Outputs, 4 Analog Input
* Analog input for Temperature & Fuel sensor detecting/monitoring, support max 4 fuel sensor manage
* More Alarm functions:
* Over speed alert
* Geo-fence alert
* Power failure/low power alert
* SOS Panic button, SOS alert
* Harsh braking and harsh acceleration alarm
* Suddenly acceleration/brake alertPicture ![]()
![]()
![]()

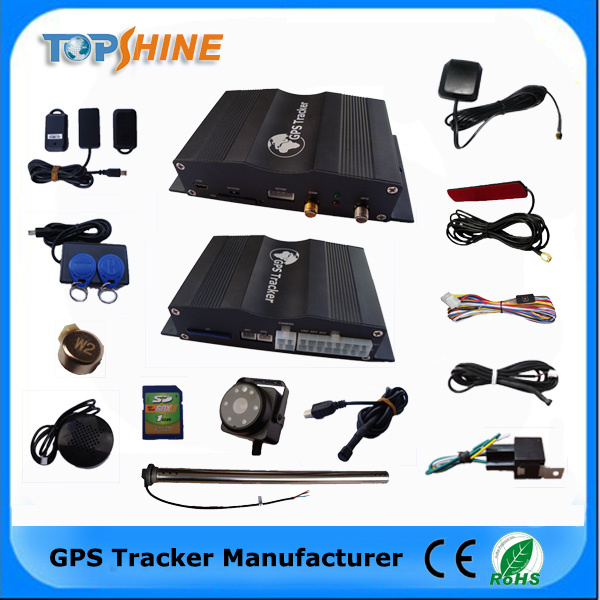

Package and Accessories
![]()
Optional Accessories
Camera
Fuel sensor
Temperature sensor
Passive RFID kit
SD card
Crash sensor
Smart phone reader
OBDII
Door sensor
Alcohol Sensor
Speed Limiter![]()
Welcome to test our free tracking software
Tracking platform site: www.track-car.com
Username: hongkong
Password: 123
Tracking platform site: www.tstrack.net
Username: test1
Password: 123
What can we do for you:
* Provide 2 free Tracking Platfrom (PC base & Android APP) lifelong. No charge.
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.
Payment & Shipment:
Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery.
