| Prod Model: |
IM-50A/ IM-50B/ IM-70A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ice Production: |
50/ 50/ 70kg Per Day |
| Ice Storage: |
40lbs=18kgs |
| Cooling System: |
Air-Cooled or Water Cooled |
| Ice Size: |
Cube: 28*40mm or 40*42mm |
| Power: |
380W/ 400W/ 420W |
| Application: |
Household |
| Control: |
Electric |
| Material: |
Stainless Steel |
| Ice Shape: |
Cylindrical Ice |
Product Description

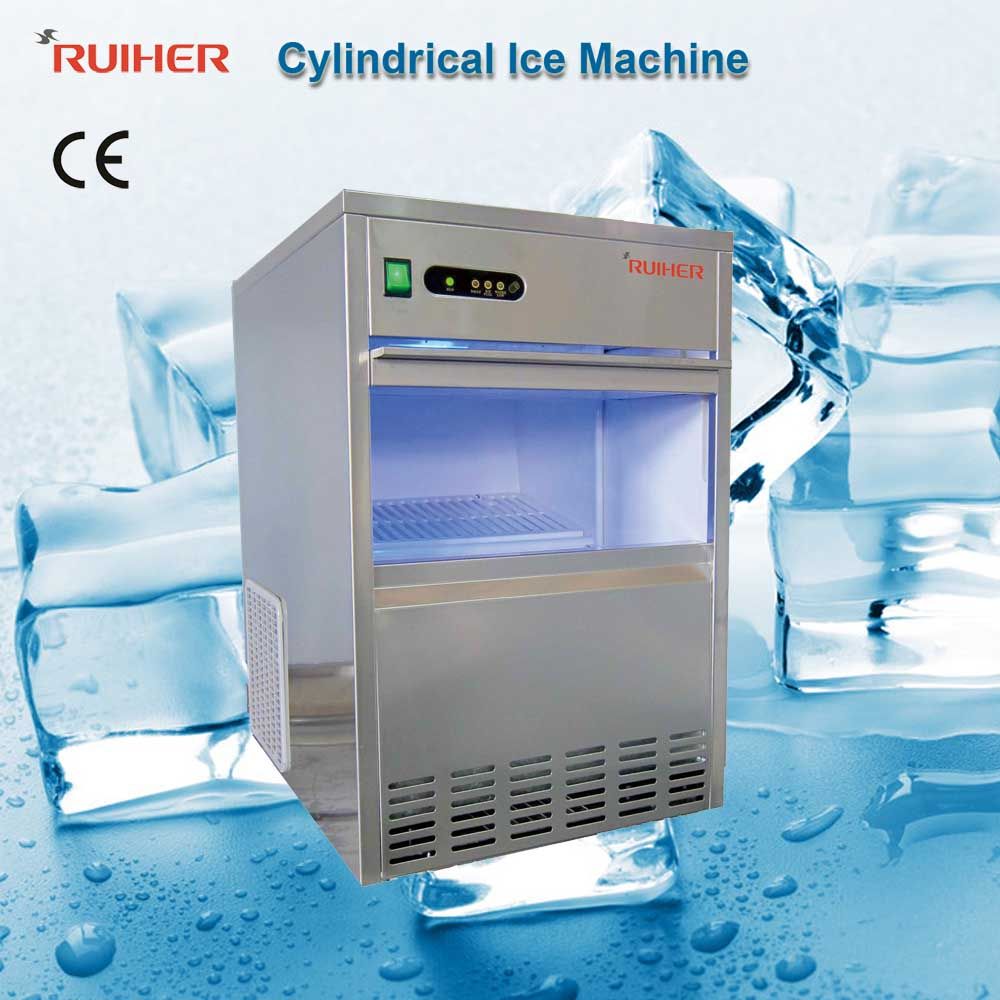

Cylindrical Ice Machine
Working principle:
Cylindrical ice also called bullet ice, finger ice and hollow cube ice, is produced by means of refrigerating stalks immersed in a water vessel as water paddle system. The ice collection tray's tipping systems patented and enables us to affirm the high level of reliability of this particular ice making system.
Application:
Cylindrical ice right for drinks, cocktails, long drinks. Perfect for outdoor stands, hotels and for the various discotheque bar areas. Easy transport (max kg 48), rapid installation and really adaptable to the design of the furnishing.
Cylindrical Ice Size:
Φ 28*40mm or Φ 40*42mm or Φ 40*30mm
Features:
Produces individual crystal clear bullet ice cubes
Resistant SUS304 2B stainless steel exterior.
Advanced diagnostics computerized control
Adjustable non-slip legs
Air Cooling System Ventilate from Front to Back.
Rapidly making ice cubes by using a particular refrigerating system.
Vertical Paddle Stirring System-Exclusive patent, greatly extend the lifespan of motor on Horizontal paddle Stirring Systems.
100% copper evaporator, fast ice making speed and high efficiency.
Easily accessible front panel ON-OFF Switch
- Routine Maintenance visible alarm light on front panel
- Ergonomically designed and large ice storage access with sliding door- Protection against phase deficiency, water shortage, full-ice.
- CFC-free R-134a Refrigerant, Italy made high quality and Energy efficient compressor.
With LED light and sterilization system.
- Accessory: Scoop, single or double stage water filter, water feeding pipe, and water drain pipe.
|
SPECIFICATION |
|
Item |
IM-50A |
IM-50B |
IM-70A |
|
Material |
304 Stainless Steel |
304 Stainless Steel |
304 Stainless Steel |
|
Type of Ice |
Cylindrical Ice |
Cylindrical Ice |
Cylindrical Ice |
|
Max Ice Production(24 hours) |
110 lbs/ 50kgs |
110 lbs/ 50kgs |
154 lbs/ 70kgs |
|
Ice Storage |
31 lbs/ 14kgs |
55 lbs/ 25kgs |
55 lbs/ 25kgs |
|
Production per Cycle |
24 Ice cubes,Φ40*30mm,18g |
32 Ice cubes,Φ40*30mm,18g |
40 Ice cubes,Φ40*30mm,18g |
|
Cooling System |
Air Cooling |
Air Cooling |
Air Cooling |
|
|
|
Voltage Standard |
200-240VAC/50-60Hz |
200-240VAC/50-60Hz |
200-240VAC/50-60Hz |
|
100-120VAC/50-60Hz |
100-120VAC/50-60Hz |
100-120VAC/50-60Hz |
|
Power |
380W |
400W |
420W |
|
Type of Refrigerant |
R134A |
R134A |
R134A |
|
Machine Dimensions(W*D*H) |
398*512*820mm |
500*612*900mm |
500*612*900mm |
|
Net Weight |
35 kgs |
48 kgs |
51 kgs |
|
|
|
Packing Dimensions(W*D*H) |
465*585*875mm |
570*685*965mm |
570*685*965mm |
|
Gross Weight |
38 kgs |
54 kgs |
56 kgs |
