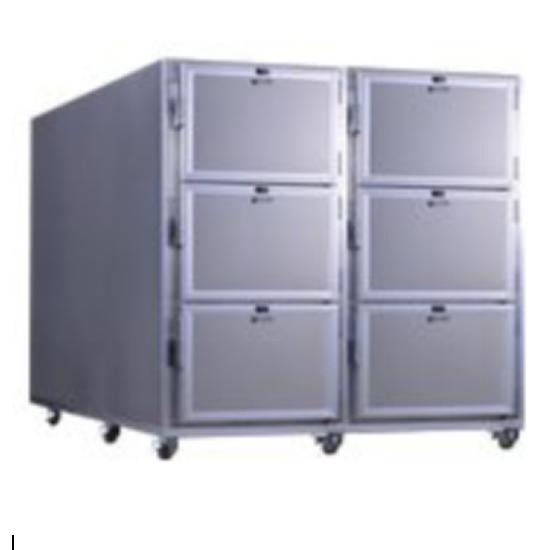

Hot Sales New Style Durable Corpse Mortuary Refrigerator (6body)

Prod Model:	HP-CR6N
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity (Corpse):	6
Power (W):	1500
Temp:	1oc ~ 5oc
Extenal Size(W*D*H):	2480*1600*1900mm & 2060*1580*1975mm
Compressor:	6set
Door Number:	Double Doors
Type:	Display Cooler
Door Type:	Swing Door
Temperature Control:	Smart Thermostat
Temperature Type:	Single-temperature
Function:	Cold Storage
Certification:	SGS
Capacity:	2480*1600*1900mm & 2060*1580*1975mm

Product Description

 Corpses Mortuary Refrigerator-New Designed
The HP series corpse cold storage and freezing box /corpse cabinet is can be used for hospital,
funeral parlor, and postmortem examination department to store the corpse.
Advantages for new designing:
1,Unique appearance designing,beautiful and excellent.
2,Digital Screen set on head of each door,easy distinguish the temperature.
3,Set the refrigeration system on top of the cabinet to save delivery cost
4,Using strength aluminum alloy as the frame of the door,be corrosion-resistant function and artistic.
5,Stainless Steel stretcher with Strength Aluminum Alloy,thicker and beautiful.
6,Latch Hook for stretcher,smoothly process
7,Compressor system can be on top of the cabinet to save space in container.Pure copper pipe line to
keep safety for freezing system.
8,Professional Foaming machine to form in one time.Much thick and high density to assure thermal
insulation and save energy.
9,OEM is ok!


Precise temperature control system
The worldwide famous high-accuracy computer-controlled temperature system with original binding
can maintain the temperature constancy in the box at 3±2ºC precisely.The temperature display
precision is 0.1ºC, the resolution is 0.1ºC and the adjusting increment is 0.1ºC. The value is to be
displayed through three-digital high-brightness figure.
The forced cold-air circulation system with intelligence-control fan can ensure the temperature
uniformity inside the box.
24-hours tracing, recording and printing systemOptional

(two sensors for some systems) inside the box and two temperature indicators outside the box, which
are to display the temperature of upper and lower point, for users to supervise the temperature at each
operating states in the box. The display precision--resolution is 0.1ºC.
The distinguished power-off memory function can hold and store huge temperature data and
information permanently.
The temperature printing has password protection function, which can prevent illegally printing of the
temperature fluctuation information.
5-ways alarm system: including 2 sound alarm devices with 220V power supply, 2 light alarm devices
with 220V power supply and one remote signal alarm apparatus (optional), consisting the super
complementary supervision system.
The data management software is available for one or more temperature signals changes
Communicate with PC through RS-232 interface to examine the temperature curve diagnosis diagram
of one or more refrigerators and display the data sheet. The data and images can be stored, inquired
and printedOptional.
Safe control system
Keyboard lock, password protection function, and method against missing-adjustment of the operating
parameter(Optional);
Setting of the alarm temperature range.
7 system failure alarms:high temperature alarm,low temperature alarm,sensors failure alarm,

electricity failure alarm, low back-up battery alarm, low voltage alarm.(Some of them are optional)
Code display of the failure position (some machines have all these seven alarms);
Three alarm ways :buzzer alarm, flashing alarm, remote signal alarm(optional).
The starting delay function due to self-checking and the interval protection function between
temporary stop and start can ensure the reliable operation;
The system can record the condition of the maximum and the minimum temperature inside the box
automatically without recording paper.
With the specially designed function, the system can operate under the state of sensor failure or the
state of numerical disturbance safely and automatically.
The operating parameter display function can ensure that the system is under supervision by operator
and with security and stability.
Equipped with remote alarm interface(Optional);
The distinguished operating parameter of the temperature control system can separate the operator
menu from the supervisor menu, which can locate the respective responsibility of the operating
parameter and the article storage.(Optional)

The inbuilt lithium accumulator can keep displaying the temperature inside the box and can keep the
light and sound alarm available for 72 hours after electricity failure(Optional).
Refrigeration system
Using famous full sealed high-performance compressor,CFC free freezing medium;
Import and adopt the original binding "Bi-Sonic" double fan strongly against the low temperature and
moisture,"EBM" heat elimination fan;
Fluoride-free refrigeration system for environmental protection to make green products and create
green world.
Humanization designing
The interior and exterior shell of the refrigerator are made of high-quality stainless steel with high
corrosion resistance and beautiful and luxury appearance.
The insulating layer is made of imported CFC free polyurethane foam materials with high thermal
retardation against cold loss.
Adopt the high-quality gel strip for door gasket with strong aging resistance ability, which can lengthen
the service life of the door gasket.
The number of the independent imported low temperature refrigeration system is same as the number
of the corpse in one refrigerator, and each refrigeration system's temperature range can be adjusted
individually, and the temperature of each chamber is independent.
The bottom side of the corpse tray has many rows of small roller wheel for moving the tray easily.

The internal and external shells of the refrigerator are made of high-quality stainless steel materials.
Copper vaporizer cooling pipeline can guarantee the ultra-long service life.
The refrigeration system of each chamber is individually controlled, and the temperature can be
adjusted without interference.
The safe lock design can prevent missing-opening.
Wide voltage band is available for 187-242V voltage,50/60HZ.
Power cable connector European standard


Main technical parameter:

Model	Capacity (Corpse)	Power (W)	Temp	Extenal Size(W*D*H)	Compressor	N.W.
HP-CR1N	1	250	1ºC ~ 5ºC	2480*800*610mm	1set	180kgs
HP-CR2N	2	500	1ºC ~ 5ºC	2480*810*1300mm	2set	280kgs
HP-CR3N	3	750	1ºC ~ 5ºC	2480*810*1900mm & 2060*800*1975mm	3set	350kgs
HP-CR4N	4	1000	1ºC ~ 5ºC	2480*1600*1300mm	4set	420kgs
HP-CR6N	6	1500	1ºC ~ 5ºC	2480*1600*1900mm & 2060*1580*1975mm	6set	550kgs

reference picture
