Prod Model: |
JHD-TFT1.8-12A |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
LCD Type: |
Hot Sale TFT LCD Display with Good Resolution |
Model Number: |
Jhd-TFT1.8-12A |
Drive Typer: |
1/160duty, 1/14bias |
Drive Power Supply Voltage: |
3.0V/3.3V |
Interface: |
Serial, 10 Pin |
Response Time: |
16(Ms) |
Display Mode: |
TFT |
Active Area: |
31.83(W)X 41.42(H)Mm |
IC Package: |
Cog |
Resolution: |
128X160 |
Type: |
Graphic |
Display Technology: |
FSTN/CSTN |
Usage: |
Small-sized LCM |
Viewing Angle: |
12.00 O'clock |
Product Description

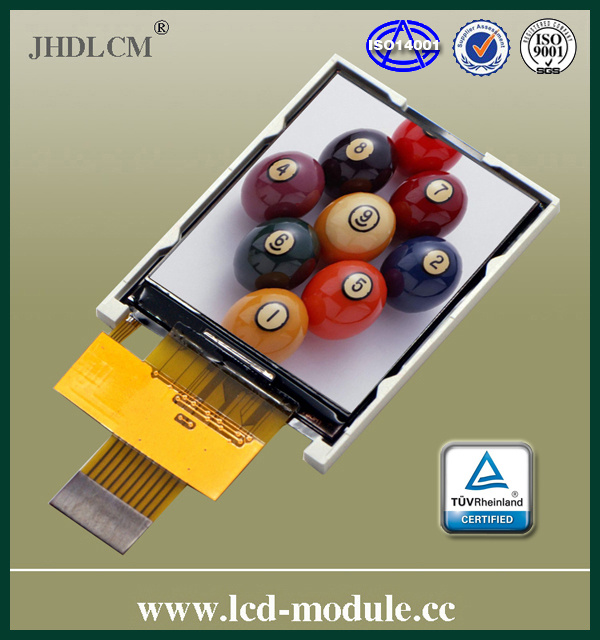

Hot sale tft lcd display with good resolution JHD-TFT1.8-12A
Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: JHDLCM
Model Number: JHD-TFT1.8-12A
Type: TFT
LCD type: Hot sale tft lcd display with good resolution
Drive Power Supply Voltage: 3.0V/3.3V
Viewing Angle: 12.00 o'clock
Drive Type: 1/160DUTY, 1/14BIAS
Interface: Serial, 10 pin
IC Package: COG
Display Mode: TFT
Resolution: 128X160
Response Time: 16(ms)
Viewing Area: 31.83(W)X 41.42(H)mm
Packaging and Delivery:
1. Packaging Details: Carton, Capboard, EPE, Blister Tray. About how many products can be contained in one package, it is up to different size of the products.
2. Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.
Specifications:
1- welding interface LCD module China brand
2-High Contrast
3-High Resolution
4-Interface: Serial
5-Backlight replaceable
Hot sale tft lcd display with good resolution JHD-TFT1.8-12A is elaborated as follows:
Advantages:
1. Backlight Replaceable
2. WLED backlight, with LED driver
3. LVDS, MCU
4. Wide view angle
5. High Quality
6. Produced in our own factory
7. Reasonable Price
Payment Terms: T/T, L/C etc.
Shipping: Any shipping way you can choose, UPS/ FedEx/ DHL/ EMS.
PS: The shipping fee which you must pay for it. But we will give you the best price of shipping fee, pls do not worry about it.
Main Parameters |
Item |
hot sale tft lcd display with good resolution |
Outline Dimension |
36.40(W)X47.00(H)X2.55(T)mm |
Viewing Area |
31.83(W)X 41.42(H)mm |
Active Area |
28.03(W)X 35.04(H)mm |
Resolution |
128X160 |
Drive Power Supply Voltage |
3.0V/3.3V |
Viewing Angle |
12.00 o'clock |
Operating Temperature |
-20°Cto +70°C |
Storage Temperature |
-30°Cto +80°C |
Display Mode |
TFT |
Display Color |
262144 |
Drive Type |
1/160DUTY, 1/14BIAS |
FPC lenght |
25.00,plug-in |
Interface |
serial, 10 pin |
IC |
|
IC Package |
COG |
LED Back Lighth |
White |
Pixel |
20480 |
Resolution |
128X160 |
Contrast Ratio |
400:1 |
Resonse Time |
16(ms) |
Dot Pitch |
0.22(mm) |
