| Prod Model: |
MWAL130 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Mwal130 |
| Cooling Capacity(Kw): |
130 |
| Cooling Power Input: |
46 |
| Water Pressure Drop(Kpa): |
39 |
| Power Supply: |
380V/3pH /50Hz |
| Compressor Type: |
Semi- Hermetic, Twin Screw Compressor |
| Air Side Heat Exchanger: |
Exchanger Tube + Aluminum Fins |
| Water Side Heat Exchanger: |
Shell-and-Tube Heat-Exchanger |
| Refrigerant: |
Refrigerant |
| Operating Voltage: |
380/400 VAC |
| Mounting: |
Floor Standing |
| Certification: |
CE |
| Condition: |
New |
| Type: |

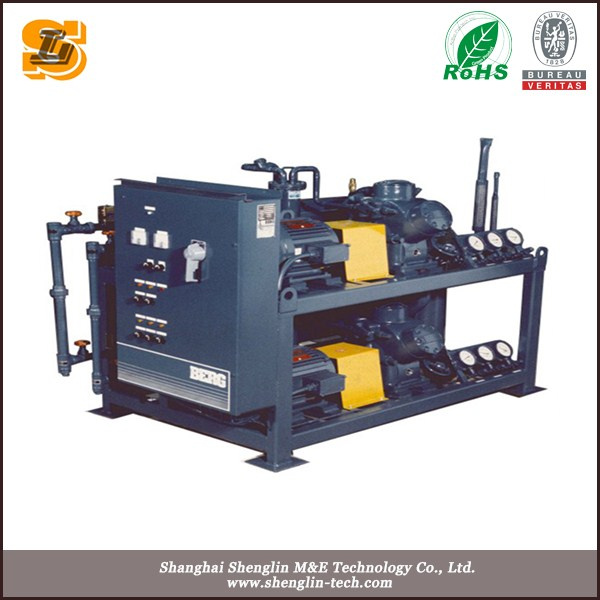

Marine Air Conditioner |
Product Description
Feature
1.Use Semi enclosed piston compressor and high efficiency low noise condenser fan motor
2.Condenser is shell and tube condenser.
3.Can be standard unit or not standard unit.
Advantage:
1.Compact structure, durable
2.High efficiency condenser
3.Suitable low temperature, middle high temperature working condition.
4.Refrigerant can be R22, R134a, R404a.
Standard water cooled condensing unit configure:
Compressor, crankshaft box heater, oil pressure safety switch (star anise machine except), shell tube water-cooling condenser, a dry filter, dashboard, B5.2 frozen oil, gas protection, low temperature models with head cooling fan; bipolar models with intercooler
Marine air cooled screw chiller unit parameter
R22/R407c |
Model
Project | MWAL130 | MWAL160 | MWAL210 | MWAL240 | MWAL300 | MWAL390 | MWAL470 | MWAL480D | MWAL600D | MWAL700D | MWAL780D | MWAL940D |
| Rated Cooling Capacity | 50HZ | KW | 130 | 160 | 210 | 240 | 300 | 390 | 470 | 480 | 600 | 700 | 780 | 940 |
| 60HZ | 160 | 190 | 250 | 290 | 360 | 470 | 560 | 580 | 720 | 840 | 940 | 1120 |
| Rated Input Power | 50HZ | KW | 46 | 53 | 69 | 80 | 99 | 127 | 140 | 160 | 198 | 226 | 253 | 280 |
| 60HZ | 55 | 64 | 83 | 96 | 120 | 153 | 172 | 192 | 240 | 273 | 306 | 343 |
| Chilled Water Indoor and Outdoor Temperature | 7-12ºC |
| Compressor | Type | 6+7semi-hermetic two-screw |
| Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 |
| Refrigerant | Name | R22/R407c |
| Max Ambient Temperature | 45ºC |
| Throttling devices | External equalizer thermostatic expansion valve/Electronic expansion valve |
| Refrigerant Charge | Kg | 48 | 54 | 62 | 74 | 85 | 115 | 145 | 162 | 162 | 171 | 230 | 290 |
| air side heat exchanger | Corrugated aluminum fins hydrophilic membrane kit thread brass |
| Condensing Fan | Model | Ultra low-noise axial fan |
| Power | 50HZ | KW | 1.1×4 | 1.5×4 | 1.5×4 | 1.5×6 | 1.5×6 | 1.5×8 | 1.5×10 | 1.5×10 | 1.5×12 | 1.5×12 | 1.5×12 | 1.5×16 |
| 60HZ | 1.5×4 | 1.5×4 | 1.8×4 | 1.8×6 | 1.8×6 | 1.8×8 | 1.8×10 | 1.8×10 | 1.8×12 | 1.8×12 | 1.8×16 | 1.8×16 |
| Evaporator | Model | Dry Shell and Tube |
| Chilled water Flow | 50HZ | m3/h | 23 | 28 | 37 | 42 | 52 | 67 | 82 | 82 | 104 | 120 | 135 | 162 |
| 60HZ | 28 | 33 | 43 | 50 | 62 | 82 | 100 | 100 | 124 | 145 | 162 | 193 |
| Diameter | 50HZ | mm | DN80 | DN80 | DN80 | DN100 | DN100 | DN100 | DN125 | DN125 | DN125 | DN150 | DN150 | DN150 |
| 60HZ | DN80 | DN80 | DN100 | DN100 | DN100 | DN125 | DN125 | DN125 | DN150 | DN150 | DN150 | DN200 |
| Water resistance | KPa | 50-80 |
| Noise | dB
(A) | 64 | 64 | 64 | 65 | 65 | 66 | 66 | 67 | 68 | 68 | 69 | 70 |
| Dimension | Length | 50HZ | m | 2200 | 2300 | 2400 | 3000 | 3500 | 4500 | 5000 | 5000 | 3500*2 | 4000*2 | 4500*2 | 5000*2 |
| 60HZ | 2300 | 2400 | 3000 | 3500 | 4000 | 5000 | 7200 | 3500*2 | 4000*2 | 4600*2 | 5000*2 | 6000*2 |
| Width | m | 2250 | 2300 | 2300 | 2300 | 2300 | 2300 | 2300 | 2300 | 2300 | 2300 | 2300 | 2300 |
| Height | m | 2250 | 2450 | 2450 | 2550 | 2550 | 2550 | 2550 | 2550 | 2550 | 2550 | 2620 | 2620 |
1.Chilled water inlet temperature:12ºC,Chilled water outlet temperature: 7ºC,air side dry bulb temperature: 35ºC,wet bulb temperature: 24ºC.
2.*represent option |
|
Marine air cooled screw chiller unit parameter (T3 working condition)
R134a |
Model
Project | MWALG
130 | MWALG
150 | MWALG
180 | MWALG
240 | MWALG
280 | MWALG
330 | MWALG
380 | MWALG
440 | MWALG
480D | MWALG
560D | MWALG
660D | MWALG
760D |
| Rated Cooling Capacity | 50HZ | KW | 133 | 150 | 179 | 240 | 280 | 330 | 380 | 440 | 480 | 560 | 660 | 760 |
| 60HZ | 161 | 178 | 210 | 290 | 330 | 400 | 460 | 530 | 580 | 660 | 800 | 920 |
| Rated Input Power | 50HZ | KW | 46 | 55 | 59 | 81 | 92 | 108 | 120 | 140 | 162 | 184 | 216 | 240 |
| 60HZ | 55 | 67 | 71 | 98 | 111 | 130 | 145 | 170 | 196 | 222 | 260 | 290 |
| Chilled Water Indoor and Outdoor Temperature | 7-12ºC |
| Compressor | Type | 6+7semi-hermetic two-screw |
| Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 |
| Refrigerant | Name | R134a |
| Max Ambient Temperature | 60ºC |
| Throttling devices | External equalizer thermostatic expansion valve/Electronic expansion valve |
| Refrigerant Charge | Kg | 38 | 44 | 56 | 62 | 76 | 84 | 110 | 141 | 162 | 168 | 220 | 282 |
| air side heat exchanger | Corrugated aluminum fins hydrophilic membrane kit thread brass |
| Condensing Fan | Model | Ultra low-noise axial fan |
| Power | 50HZ | KW | 1.1×4 | 1.5×4 | 1.5×4 | 1.5×6 | 1.5×6 | 1.5×6 | 1.5×8 | 1.5×8 | 1.5×10 | 1.5×12 | 1.5×12 | 1.5×12 |
| 60HZ | 1.5×4 | 1.5×4 | 1.8×4 | 1.8×6 | 1.8×6 | 1.8×6 | 1.8×8 | 1.8×8 | 1.8×10 | 1.8×12 | 1.8×12 | 1.8×16 |
| Evaporator | Model | Dry Shell and Tube |
| Chilled water Flow | 50HZ | m3/h | 23 | 26 | 30 | 34 | 44 | 49 | 56 | 74 | 92 | 97 | 112 | 148 |
| 60HZ | 26 | 30 | 35 | 39 | 50 | 56 | 64 | 86 | 108 | 112 | 130 | 173 |
| Diameter | 50HZ | mm | DN80 | DN80 | DN80 | DN100 | DN100 | DN100 | DN100 | DN125 | DN125 | DN125 | DN150 | DN150 |
| 60HZ | DN80 | DN80 | DN80 | DN100 | DN100 | DN100 | DN125 | DN125 | DN125 | DN150 | DN150 | DN150 |
| Water resistance | KPa | 50-80 |
| Noise | dB
(A) | 63 | 64 | 65 | 65 | 66 | 66 | 67 | 68 | 68 | 69 | 70 | 71 |
| Dimension | Length | 50HZ | m | 2200 | 2300 | 2400 | 3000 | 3500 | 3800 | 4500 | 5000 | 3000*2 | 3500*2 | 3800*2 | 4500*2 |
| 60HZ | 2300 | 2400 | 2400 | 3500 | 3800 | 4500 | 500 | 6000 | 3500*2 | 3800*2 | 4500*2 | 5000*2 |
| Width | m | 2250 | 2250 | 2300 | 2300 | 2300 | 2300 | 2300 | 2300 | 2300 | 2300 | 2300 | 2300 |
| Height | m | 2250 | 2250 | 2250 | 2450 | 2550 | 2550 | 2550 | 2550 | 2550 | 2550 | 2550 | 2620 |
1.Chilled water inlet temperature:12ºC,Chilled water outlet temperature: 7ºC,air side dry bulb temperature: 46ºC,wet bulb temperature: 24ºC.
2.*represent option |
|
Shanghai Shenglin is a professional supplier in China specializes in refrigeration units and parts. Now we have two factories. One is mainly manufacturing condensers and evaporators, the other one is mainly manufacturing central air conditioners like roof-top air conditioners, precision air conditioners and air handing units. Both of our factories are ISO certificated.
Our condensers and evaporators can be widely used in air conditioners, heat pumps, fan coils, air handing units, drinking machines, ice makers, dehumidifiers, laser machines, welding machines and other area. We can not only manufacture copper pipe condensers and evaporators, but also manufacture stainless steel pipe and aluminum pipe condensers and evaporators.
Our rooftop air conditioners are easy to be installed and maintained. As they are installed on the top roof, so they will not spare the room space. They are weather proof and have high efficiency.
Our precision air conditioner can control temperature in ± 1ºC and humidity in ± 5%. It can be used in data center and telecom base station. Most parts are world famous brand.
Our products have been exported to Europe, North of America, Middle East, South of Africa and southeast Asia.
We sincerely welcome customers all over the world to visit our company and set up business relationship for mutual benefit.
