| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
Acid Etched Glass |
| Technique: |
Clear Glass |
| Products Name: |

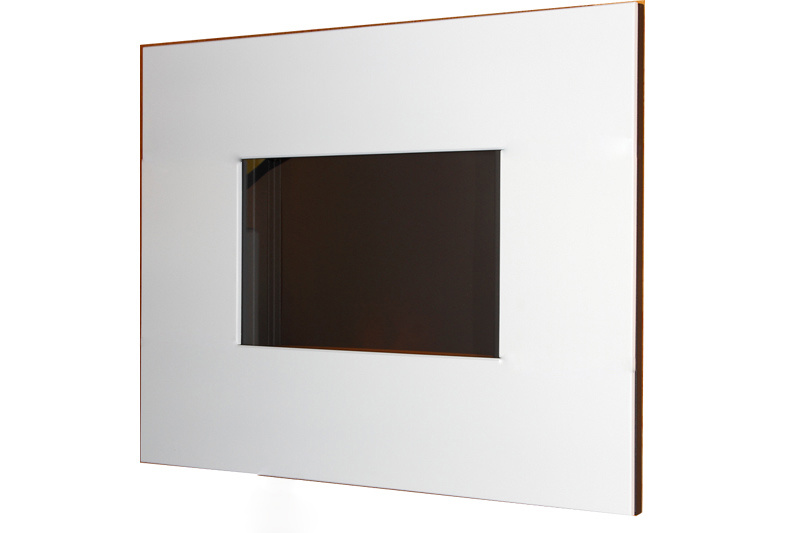

Heat Resisting Fireplace Glass |
| Structure: |
Solid |
| Certification: |
CCC |
| Surface Material: |
Ceramic / Glass |
Product Description
Heat Resisting Fireplace Glass High Borosilicate Glass
Specifications
1.Excellent visual effect
2.Powerful effect on Fire, hydrolysis and Chemical Resistance
3.High resistance to thermal shock.
NOVAL BOROSILICATE FLOAT GLASS DESCRIPTION
NOVAL GLASS Borosilicate glass has a very low thermal expansion coefficient, about one-third that of ordinary glass. This reduces material stresses caused by temperature gradients, thus making it more resistant to breaking. This makes it a popular material for objects like telescope mirrors, where it is essential to have very little deviation in shape. It is also used in the processing of high-level nuclear waste, where the waste is immobilised in the glass through a process known as vitrification (contrast with Synroc).
BOROSILICATE FLOAT GLASS 3.3
1. Household electrical appliance (panel for oven and fireplace, microwave tray etc.);
2. Environmental engineering and chemical engineering (Lining layer of repellence, autoclave of chemical reaction and safety spectacles);
3. Lighting (spotlight and protective glass for jumbo power of floodlight);
4. Power regeneration by solar energy (solar cell base plate);
5. Fine instruments (optical filter);
6. Semi-conductor technology (LCD disc, display glass);
7. Iatrology and bio-engineering;
BOROSILICATE FLOAT GLASS 3.3 SPECIFICATION
Dimensions (mm) |
1200*600; 1150*850; 1150*1700
Other formats upon request |
Available thickness (mm) |
1.2--20 |
Density (g/cm3) (at 25°C) |
2.23±0.02 |
Co-efficient of expansion (α) (20-300°C) |
3.3±0.1×10-6 |
Softening point (°C) |
820±10 |
Identical temperature difference (K) |
100
300(Strengthening type) |
Thermal shock resistance(K) |
≥125 |
Maximum working temperature(°C) |
≥450 |
Refractive (nd ) |
1.47384 |
Light transmission |
92%(thickness≤4mm)
91%(thickness≥5mm) |
Processing |
pre-cut formats, edge processing, drilling, coating, semi-tempering, printing, etc. |
BOROSILICATE FLOAT GLASS 4.0
1. Fire resistance glass for doors and windows
2. Fire resistance glass for cut off
3. Sealed insulating glass
4. Glass used in curtain walls
5. Fire resistance glass for ceiling, floor
6. Composition and physical characteristics
BOROSILICATE FLOAT GLASS 3.3 SPECIFICATION
Dimensions (mm) |
1200*600; 1150*850; 1150*1700
Other formats upon request |
Available thickness (mm) |
1.2--20 |
Density (g/cm3) (at 25°C) |
2.23±0.02 |
Co-efficient of expansion (α) (20-300°C) |
3.3±0.1×10-6 |
Softening point (°C) |
820±10 |
Identical temperature difference (K) |
100
300(Strengthening type) |
Thermal shock resistance(K) |
≥125 |
Maximum working temperature(°C) |
≥450 |
Refractive (nd ) |
1.47384 |
Light transmission |
92%(thickness≤4mm)
91%(thickness≥5mm) |
Processing |
pre-cut formats, edge processing, drilling, coating, semi-tempering, printing, etc. |
BOROSILICATE FLOAT GLASS 4.0
1. Fire resistance glass for doors and windows
2. Fire resistance glass for cut off
3. Sealed insulating glass
4. Glass used in curtain walls
5. Fire resistance glass for ceiling, floor
6. Composition and physical characteristics
OROSILICATE FLOAT GLASS 4.0 SPECIFICATION
Dimensions (mm) |
1200*2400; 1600*2400
Other formats upon request |
Available thickness (mm) |
6--12 |
Density (g/cm3) (at 25°C) |
2.28±0.02 |
Co-efficient of expansion (α) (20-300°C) |
4.0±0.1×10-6 |
Softening point (°C) |
845±5 |
Processing: |
pre-cut formats, edge processing,tempering |
Tai'an Saintly Glass Co., Ltd, situated at the foot of world-renowned Mount Tai, is located in Hi-Tech Industrial Development Zone of Tai'an, Shandong Province, with more than 100 employees. We are committed to the design, production and sales of such special glass as household appliance glass, range hood glass, lighting glass and instrument glass, and able to provide customized design, production and service based on customers' demand.
Our main products are as follows: Household appliance glass (glass for refrigerator, air conditioner, washing machine, oven, microwaves and disinfection cabinet), range hood glass, lighting glass, instrument glass, etc. "High-quality, high-end" is the main feature of our products, as a result of which, we win a wide range of domestic and foreign customers. Our glass products have already been widely supplied for LG, Siemens, Panasonic, Hitachi, Philips and other companies which are among the world's top 500 enterprises and famous domestic enterprises such as Hair, Midea and Gree. Our household appliance glass is also widely exported to Europe, America, Australia, Japan, South Korea, Southeast Asia and other countries and regions. The quality of our products is well received by customers' at home and abroad.
Our company is equipped with about 60 advanced facilities, such as Bottero cutting machine and Intermac CNC processing center from Italy, CNC drilling machine from Taiwan, CNC edging grinding machine and Southtech toughening furnace. With these advanced equipments, we can produce glass of different shapes based on customers' demand. We also have five silk-screen printing lines, by which, we are able to print all sorts of complex patterns according to customers' requirements. Advanced equipments ensure the high and reliable quality.
In 2012, our company passed ISO9000 quality management system and CCC certification. Rigorous and scientific management is a powerful guarantee to continuously improve product quality. Good quality comes from profession, characteristic leads the future. Characteristic products and service is the foundation of our cooperation, and we look forward to creating brilliant achievements together with you.
