| Prod Model: |
ADL6018-58/1800-12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Evacuated Tube Size: |
58*1800mm |
| Innter Tank Material: |
Sus304-2b Stainless Steel |
| Outer Tank Material: |
Galvanized Sheet |
| Frame: |
Galvanized Sheet |
| Structure: |
Compact Type |
| Pressure: |
Unpressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Certification: |
CE |
Product Description

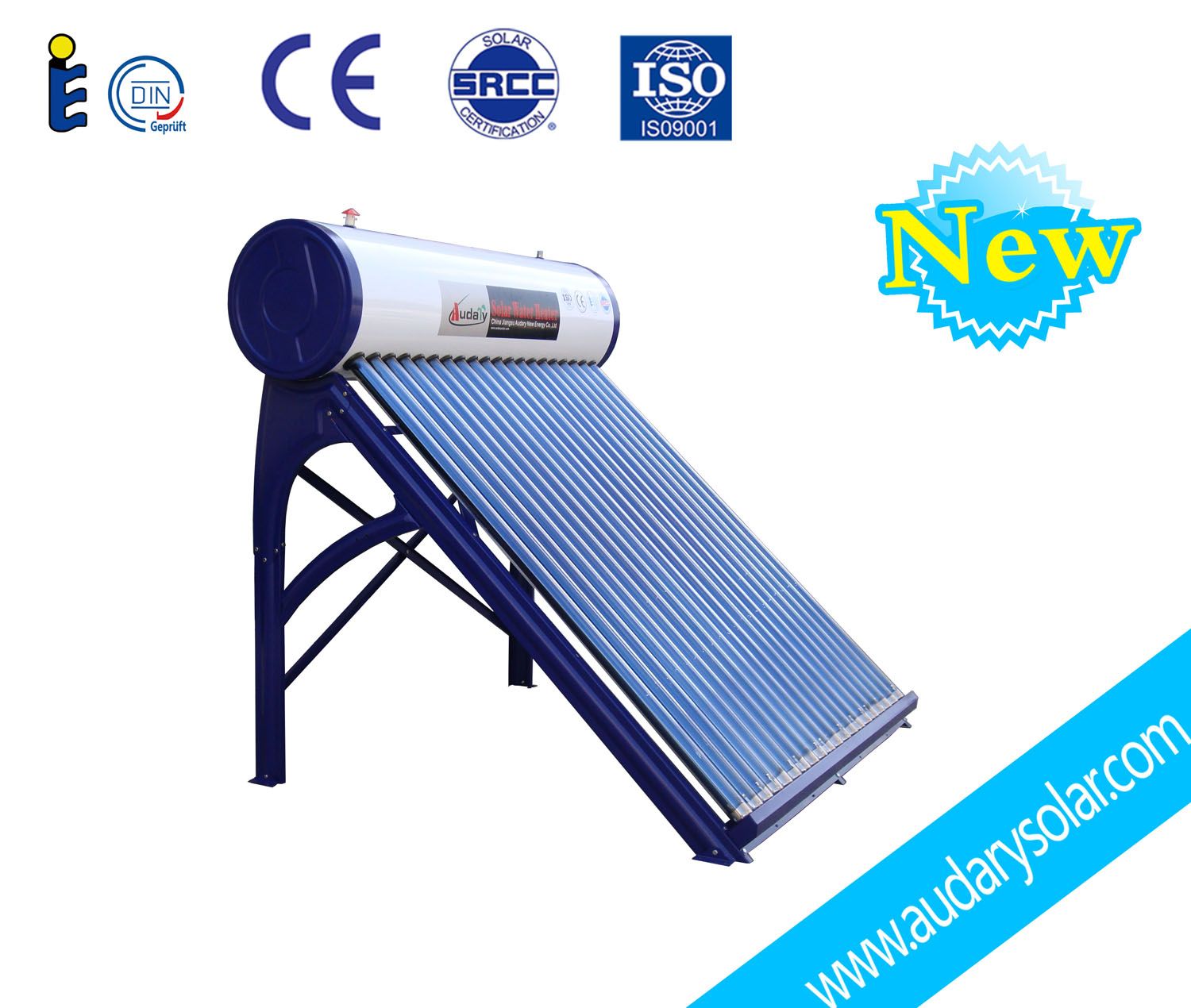

The detailed information for solar water heater for Turkish market
Evacuated solar collector tube: Made of high-borosilicate glass, with aluminum absorption layer of magnetron sputtering
Specification: 58-1800mm
Storage tanks: SUS304-2B imported food-grade stainless steel
Outer tank material: Imported galvanized plate, FI-carbon board and colour-coated sheet
Thickness of insulation layer: 55-65mm and made through the computerized pressurizing and foaming of polyurethane as a whole
Bracket materials: Molded of high-strength galvanized sheet and electrostatic plastic-sprayed
Fasteners: Stainless steel screws
Sealing ring: Polymer 5silicone rubber
Reflective angle: 45°
Heat pipe material: Copper
Absorption rate: ≥ 0.95± 0.02
Emission rate: ≤ 0.20± 0.02
Vacuum tightness: P≤ 5.0*0.0001PA
Idle sunny property paramerers: Y=220-260. /KW
Average Heat Loss: Ult=0.6-0.7W(. )
It means the temperature in the water tank is arange from 50 to 95 degree.
It resist 25mm hail and the using life can last 15 years.
Please test the water temeperature before using, in order to avoid scalding.
Instruction: CD and brochures to show you how to install it.
Certificates: Pass CE, ISO, CCC and patent certificates.
OEM Services provided!
|
Vacuum tubes: |
|
|
Structure: |
All-glass double-tube co-axial structure |
|
Material: |
High borosilicate 3.3 glass |
|
External pipe diameter and thickness: |
Φ =58mm, 1.6mm |
|
Internal pipe diameter and thickness: |
Φ =47mm, 1.6mm |
|
Absorbing coating: |
Al-N/Al, Al-N/SS/CU |
|
Vacuum tightness: |
Vacuum tightness: |
|
Thermal expansion: |
3.3*10-6/° C |
|
Absorptance: |
> 95% |
|
Emittance: |
< 8% |
|
Stagnation temperature: |
> 220° C |
|
Wind resistance: |
30m/s |
|
Freezing resistance: |
-35° C |
|
Hail resistance: |
25mm |
|
Lifetime: |
15 years |
|
|
|
|
Water tank: |
|
|
Inner tank material: |
Tainless steel SUS304-2B, 0.4mm thickness |
|
Outer tank material: |
Color steel or stainless steel, 0.4mm thickness |
|
Insulation layer: |
Polyurethane foaming, 50mm thickness |
|
Inner tank diameter: |
360mm |
|
Outer tank diameter: |
460mm |
|
Heat preservation: |
72 hours |
|
|
|
|
Frame: |
|
|
Material: |
Galvanized sheet and electrostatic plastic-sprayed, Thickness: 1.5mm. If stainless steel, thickness is 1.2mm |
|
Angle of frame: |
27° , 30° , 38° , 45° |
|
|
|
|
Accessories : |
|
|
1. Assistant tank: 3L, 5L, 8L, 12L, 25L for your choose |
|
|
2. Electric heater: 1500W |
|
|
3. Magnesium bar |
|
|
4. Intelligent controller |
|
Jiangsu Audary New Energy Co., Ltd., is specialized in supplying and exporting of all kinds of metallurgy, mineral & energy products including solar water heater, solar collector and water heater which have many years experience in this field.
Rebao solar water heater factory was built in 1995, which was one of the earliest factories specialized in solar water heaters making. To enlarge our market, we established Jiangsu Audary New Energy Co., Ltd in 2008.
Since we began this career, both our workers and stuffs are working hard to make the products better and better, with our efforts, we are well- known for high quality and good service.
Since we do so much, we have got several certificates, such as CE, ISO and SRCC, SOLAR KEYMARK.
Under the leadership of our general manager and engineers, our company will be more prosperity.
Hope we can cooperate with people all over the world. And lead people a Green-energy life.
