| Prod Model: |
6*16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
6*16 |
| Capacity: |
70~100kg |
| Material: |
Copper and Asb Plastic |
| Warranty: |
5 Years |
| Certification: |
FDA |
| Condition: |
New |
| Ice Shape: |
Ice Cube |
Product Description

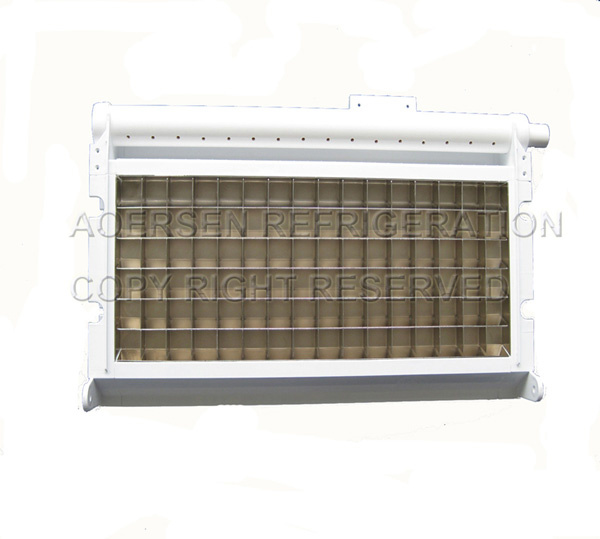

Water-flowing evaporator of ice maker
Utilization:
*Mainly used for quick cycle ice-making of household and commercial ice machine
Features
*Mainly used for quick cycle ice-making of household and commercial ice machine
*It is made of copper by welding, with advantage of heat exchanging.
*In the back of ice board, it is using "D" tube or ellipse tube connection to enlarge the interface area of evaporator and ice board, so it can enhance the efficiency of heat exchanging, shorten the time of ice making and ice dropping and improve the ice making capacity and ice cube quality.
*The evaporator surface is chemistry plated by nickel which accords with environmental-friendly and FDA food safety demands. Compared with traditional electroplated, the chemistry plated by nickel is better in dense, lower in hole. The perfect combine of plating sheet and base material can protect the product surface well and improve the antiseptic capacity.
*There is 72° ~85° Incline between the horizontal septa and ice board, so that the ice cube can be dropped smoothly when ice dropping.
*The ice cube is nearly square, between 72° ~85 and it is transparent with high density.
Working principle
By evaporating the refrigerant in tube, the heat is transferred to ice board; By recycle water pump, the water flows into the ice grid through spaying pipe, it can make ice in cooling conditions and ice drop in heating conditions.
|
No. |
Model |
Capacity: KG/DAY |
Size of Ice Grid(mm) |
|
1 |
4X8 |
15~20 |
22*22*22 |
|
2 |
5X8 |
30~40 |
22*22*22 |
|
3 |
5X9 |
35~45 |
22*22*22 |
|
4 |
5X11 |
45~55 |
22*22*22 |
|
5 |
5X12 |
50~60 |
22*22*22 |
|
6 |
5X14 |
55-70 |
22*22*22 |
|
7 |
5X18 |
60~80 |
22*22*22 |
|
8 |
5X20 |
80~100 |
22*22*22 |
|
9 |
6X14 |
70~120 |
22*22*22 |
|
10 |
6X20 |
70~120 |
22*22*22 |
|
11 |
7X14 |
90~140 |
22*22*22 |
|
12 |
7X20 |
90~140 |
22*22*22 |
|
13 |
9X12 |
90~105 |
22*22*22 |
|
14 |
9X18 |
150~160 |
22*22*22 |
|
15 |
9X20 |
155~180 |
22*22*22 |
|
16 |
13X12 |
130~150 |
22*22*22 |
|
17 |
13X14 |
140~160 |
22*22*22 |
|
18 |
13X18 |
200~250 |
22*22*22 |
|
19 |
13X20 |
220~260 |
22*22*22 |
|
20 |
15X20 |
250~300 |
22*22*22 |
|
21 |
18X19 |
300~350 |
22*22*22 |
|
22 |
19X17 |
300~320 |
22*22*22 |
|
23 |
19X20 |
350~380 |
22*22*22 |
|
24 |
19X21 |
360~400 |
22*22*22 |
|
25 |
21X21 |
400~450 |
22*22*22 |
|
26 |
24X18 |
400~450 |
22*22*22 |
|
27 |
24X36 |
800~850 |
22*22*22 |
|
28 |
24X42 |
900~1000 |
22*22*22 |
Shanghai AOERSEN REFRIGERATION EQUIPMENT Co., Ltd. is established in 2007. Since than, we've had experience of exporting all over the world for 7 years. We specialize in manufacturing all kinds of different refrigeration parts for ice machines, such as ice cube evaporator, water tank, water tube, water valve and so on. We've located our factory in Shaoxing city which is near Shanghai, 2 hours driving from Shanghai Pudong International airport.
