| Prod Model: |
RB |
| Size: |
50m |
| Type: |
Coating Production Line |
| Coating: |
Galvanized |
| Substrate: |
Steel |
Product Description
Main Features Of Our Hot Dipping Galvanizing Line - Solved the problem of huge investment for environment protect and hign running cost,our line will make full use of waste heat:
- .Make use of waste heat to heat the flux tank upto 70 degree.
- Make use of waste heat to heat the acid pool upto 30 degree,saved the cost of steam heating when ambient temperature is low.
- The acid pool use blow&suction method to remove acid mist,the method will save 30-50% power consumption compare with suction both sides.Via ventilatting duct into treatment tower for treating then discharge which conform to the emission standard
- Make use of waste heat,via heat exchanger to produce hot air(Max. Upto 4 tons boiler),the hot air will be used for blow the pipeline during installation and commission
- Zinc smoke adopts blow&suction method to remove acid mist,the method will save 30-50% power consumption.
- The newest wast heat energy save technology:Air bus equipment-Waste heat type energy save combustion-supporting wind.
- Waste heat drying tank.Make use of wast heat via heat exchanger to get hot air,use the hot air to blow the workpiece,will dry faster and balance.Make use of waste heat to heat the drying tank bottom and around to get better effect.
- Flux cooling water waste heat to heat the flux which will cooling the water and saved flux.
Hot Dipping Galvanizing Line Main EquipmentMainly compose of pre-treatment system,Zinc pot stove proper,after treatment system,environment protect system,waste heat using system. Mobile:86 15204631239
Zinc plating production line Barrel plating automatic production line can be adapted to a variety of small parts, standard parts and various types of plating needs substantial increase in labor productivity. Plating has been provided to expect from the rejection of the full set of water and drying equipment.
1. Large roller can be extremely PP PP-casting materials, CNC machine drilling.
2. The transmission system adopts each station of a transmission gear coupling, electromagnetic speed.
3. Automatic weighing feeding device can reduce labor intensity.
4. passivation automatic folder barrel washing equipment and automatic rejection of water color dryer.
We can offer from plating material dumped water drying until a full set of equipment. Special accumulated rich experience in zincate solution passivated galvanized wash tub and clip color equipment, roller and PP template for a national patent.
The main configuration
1, PLC machine adopts Japanese Mitsubishi Electric Corporation products;
2, inverter by Japan's Mitsubishi Electric Corporation products;
3, touch screen with Kunlun-state electrical company's products;
4, proximity switches and photoelectric switches from Germany Turck Electric products;
5, contactors and thermal relays Suzhou Siemens Electric Company products;
6, chemical degreasing tank 304 stainless steel electric heating tube heating, power of 48KW, 220V;
7, hot water tank made of 304 stainless steel electric heating tube heating, power 10KW, 220V;
8, anode lift sump 304 stainless steel electric heating tube heating, power of 24KW, 220V;
9, activation tank using 304 stainless steel electric heating tube heating, power 10KW, 220V;
10,Automatic temperature control using Yan Ling Electric Company products;
11, Truck traces using Shanghai Nanyang Fujikura's advanced 40-core flat cable;
512, All control cabinet, reasonable design, elegant, exquisite appearance, easy to operate, so that moisture and corrosion. Control cabinet wiring structured, clear and accurate line number, all elements have clear labeling on the operation panel in English.
13, system with automatic and manual control functions, under normal circumstances, the system is in automatic operation, such as the residence time of the workpiece in each groove, traffic levels and lifting speed. Each lane start, stop, promotion, reduction in operation and the shift can be controlled manually, but this time the other part is still controlled automatically. When a local problem in need of repair, driving to go to the manual operation, the production line can continue to run.
14, System program with interrupt, power and memory function, easy to handle unexpected situations.
15, system is equipped with the full range of emergency stop devices to prevent accidents.
16, for the user product diversity, the system can be easily modified to run the process sequence.
| Item |
|
| 1, Material of tank | 3mm304 stainless steel , PP |
| 2,Material of framework | Square steel tube |
| 3,Control system | PLC,computer control |
| 4,Heating model | Electronic, steam, hot water |
| 5,Model of transporter | Automatic ,semi-automatic ,Manual |
| 6.Surrounding equipment | Rectifiers, filters,pipe, air blower,waste gas treatment system |
| 7,Warranty | 12 months. |
| 8,Advantages | Flexible design,safe,stable and high strength, automatic weighting and loading. |
| 9,Applications | Different kind of plating for metal products. |
| 10,Contactor (switch ) and thermal relay | Siemens Brand . |

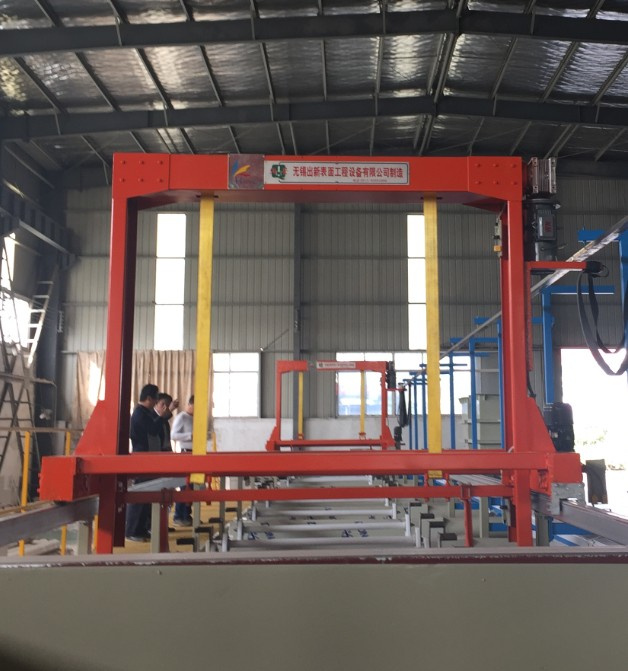

Rack plating
Automatic zinc plating production line is strictly in accordance with pre-established procedures, processes and time requirements by plating ongoing work to modernize equipment. Not only does it run fast and stable, high yield, stable quality, and save a lot of manpower. And because energy use more fully, less pollution and cleaner production by the state environmental protection department is widely recommended.
Rack plating , zinc-nickel rack plating , rack plating iron alloy automatic production lines are the product of our company's strengths. Zincate galvanized and trivalent chromium passivation is more environmental friendly and advanced plating species, our company has built a lot of this automatic production lines.
1. Large roller can be extremely PP PP-casting materials, CNC machine drilling.
2. The transmission system adopts each station of a transmission gear coupling, electromagnetic speed.
3. Automatic weighing feeding device can reduce labor intensity.
4. passivation automatic folder barrel washing equipment and automatic rejection of water color dryer.
We can offer from plating material dumped water drying until a full set of equipment. Special accumulated rich experience in zincate solution passivated galvanized wash tub and clip color equipment, roller and PP template for a national patent.
Zinc plating equipment, there are barrel zinc plating and rack plating equipment, we can make it according to your requirement.
