Prod Model: |
RV-432G/DVR |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: 4.3 Inch: |
Display Screen: TFT-LCD Screen |
Resolution: 480xrgbx272: |
Display Mode: 16: 9 |
Voltage: DC 12V: |
Power: 2W |
Resistance: |
Shock-Resistant |
Color: |
RGB |
Type: |
Interior Mirror |
Certification: |
FCC & CE |
View Angle: |
Full Scale |
Use: |
Reversing, Backup |
Material: |
TFT-LCD |
Product Description
Specification

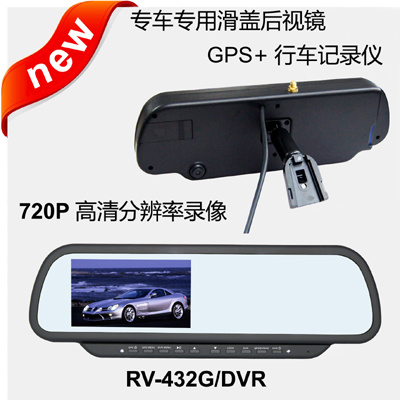

Dedicated car sliding rear-view mirror with GPS
Size: 4.3 inch
Display screen: Digital high-definition TFT-LCD screen, clearer, more realistic and colorful
Resolution: 480 (H) X RGB X 272 (V) HD
Display mode: 16: 9
Power: 2W, ultra-low power consumption, no fever;
Voltage: DC 12V
Operation temperature: 0 degree-60 degrees
Storage temperature: -10 degrees-70 degrees
Operation humidity: 0 -90%
2-way video input AV1/AV2, AV1 for DVD/VCD signal and AV2 for reversing camera
Description
1. GPS navigation, standard 4G electronic map
2. Speed detected/fixed by radar, high sensitivity, full-scale signal ensure an accurate position
3. Visual reversing function, wide-angle lens, 628 x RGB x 582 pixels resolution, 420 TV lines, waterproof/shockproof, distance marking line built-in. (optional)
4. Image recorder with 720P resolution, support video play/preview, cycle coverage, 32GB memory card and recording.
5. FM audio launch from 87 to 108 MHz, transmitting distance in 10 m
6. Speakers built-in, 1.5W SD
7. Music format: WAV, MP3, WMA
8. Movie format: AVI, MP4, MPG, WMV, 3GP
9. Picture format: JPG, GIF, BMP, PNG,
10. E-books format: TXT
12 Various games built-in.
Software Support
Operating System: Win CE. Net 6.0
Languages: Chinese, English, French, Portuguese, Italian, Spanish, Dutch, German, Korean, Japanese and other optional
Hardware Support
Processor: ARM 9 533MHz
Memory: NAND flash 128 MB, SDRAM 64 MB
GPS: Receiver module with high sensitivity GPS chip.
Tracking sensitivity: -161dB.
Capture sensitivity: -147dB,
Cold start (open area): 29 seconds/cold start (average): 45 seconds/hot start: 2 seconds
Antenna: External Antenna
Configuration
GPS + DVR host
4GB SD map card
4GB TF memory card
Automotive power bus
GPS external antenna
Dedicated car bracket
Camera (optional)
User's manual
Established in 2002, Shenzhen CarKnight Electronic Co. Ltd. Is located in Shenzhen district, (factory in Baoan district, Shenzhen city) with a talented professional team, the lean manufacture system and the excellent quality assurance system.
Shenzhen CarKnight Electronic Co. Ltd. Is a large-scale Hi-tech enterprise specialized in R&D, production & sale of Car VA entertainment system, car security devices, and the other electronic products.
Throughout four years in the in-car electronic industry, our products range reach to Car DVD, Portable electronical gadgets, back-view TFT-LCD monitor, Headrest monitor, Sun-visor monitor, Rear-view camera, GPS navigation, parking sensors and Digital photo frame etc.
We persist in "Market-oriented, R&D innovation, Excellent quality, Focus on customer" as our company tenet. Car Knight will certainly make greater achievements in the competitive International market and offer best services to each of our esteemed client. With the best products and services, we sale our products to Europe, America and Southeast Asia etc.
OEM, ODM and small orders are welcome
