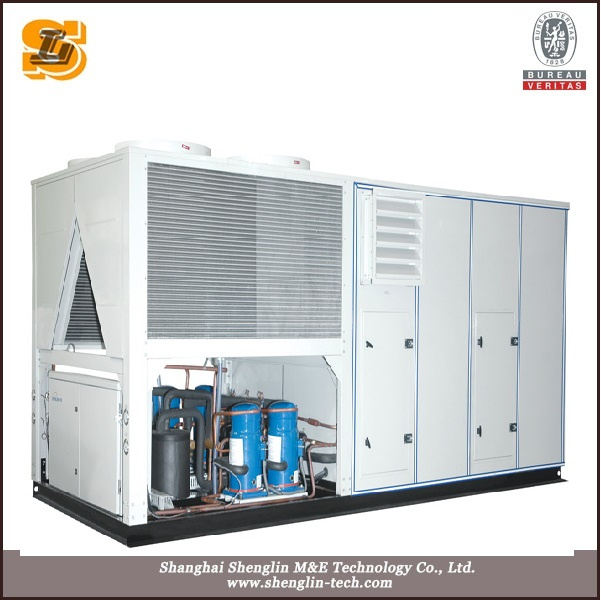

Hospital Operating Room Rooftop Package Unit Air Conditioner

Prod Model:	GT-WKR-20
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Western Europe
Input Power:	3n-380V
Frequency:	60Hz/50Hz
Color:	White(According to Customer Requirements)
Compressor:	Efficient Scroll Closed
Refrigerant:	R22/R407c
Function:	Cooling/Heating
Airflow:	1800-80000
Cooling Capacity:	Adjustable
Constant Temperature And Humidity:	Optional
Type:	Air Handling Unit
Operating Voltage:	380/400 VAC
Mounting:	Floor Standing
Certification:	CE
Condition:	New

Product Description

Roof Top unit

1) BRIEF INTRODUCTION AND FEATURES
Rooftop air-conditioning unit is DX air-cooled type, combined of the refrigeration system, control systems and
different air handling sections, achieving cooling, heating, dehumidification, humidification, air purification,
sterilization and other functions.Complete with a wide cooling capacity range, no need cooling water system, omit
the dedicated room and complex cooling towers, water pumps and the corresponding pipelines, control device. Unit
usually mounted on the roof or other outdoor location, don't need dedicated room, which greatly save the cost of
civil work. Besides, It's easy to install--- only to connect the duct then power on to run, which also save the cost of
maintenance.

2) Main Unit Descriptions
1) Efficient and Energy-saving.
Each outdoor unit incorporates high efficiency scroll compressors.
Coils use high efficient inner screw copper tube for better heat transfer.
Fresh air non energy dissipating cooling in transient season, can adjust air volume what the fresh air system
required.
OEM energy recovery device.
2) Durable( corrosion and rust protection).
Our packaged systems are built tough towithstand all weathers.
Their durable construction ensures a long life and excellent return on your investment.
The outdoor air coils' aluminum fins could be epoxy coated for extra protection in corrosive environments, e.g. salt
laden sea air.
Blue-fin type coils, epoxy resin fin coils as well as the copper fin coils are also available as an option.
Cabinets are constructed from high grade steel - polyester powder coated for all weather protection.
External fasteners are stainless steel or galvanized type.
Corrosion resistant drain trays are also included.
Designed to evacuate rain water and condensed water easily from the unit.
The opening for the connection side ducts are protected
so that water will not splash on the joint between the duct and unit panel.
3)Safety.
Complete with various protecting function.
Pass kinds of safety tests.
4) Easy service.
Quick release fasteners are provided on electrical and compressor panel.
The units are equipments with access door to all components that may require maintenance or service.
The liquid sight glasses are visible and easy to find.
Access to the control circuit and compressor section is independent of the cooling or heating operation of the unit.
5) Options.
Electric heater, hot-water heating, steam-heating unit.
Manul/electric fresh air damper, plug fan, dedicated exhaust fan air filter dirty alarm device.
Energy recovery device.

GT-WKR Series-Roof Top AH Specifiaction 1
Model    GT-WKR-				10	15	18	20	25	30	35
Specification	Cooling capacity 1*		kW	10.5	15.0	18.5	21.0	26.3	29.8	35.0
	Heating capacity 2*		kW	11.5	15.9	19.5	22.1	27.6	32.6	37.1
	Supply air 3*		m3/h	1800	2400	2900	3500	4500	5000	5800
	Static pressure 3*		Pa	100	150	150	180	200	250	250
	Noise 4*		dB(A)	60	60	62	62	65	65	68
	Power			3N-380V-50Hz
	Total capacity			3.9	5.74	7.0	8.27	9.96	11.0	14.15
	Color			White
ooling system	Compressor	Type		Efficient scroll closed
		Quantity		1	1	1	1	1	1	2
	Supply air fan	Type		Low noise centrifugal type
		Capacity	kW	0.37	0.55	0.75	0.75	1.1	1.5	2.2
	Evaporator	Type		Inner grooved copper tube and aluminum fin
		Fin type 5*		Slotted fin hydrophilic aluminum fin
	Condenser	Type		Inner grooved copper tube and aluminum fin
		Fin type 5*		Rippled hydrophilic aluminum fin
	Condenser fan	Type		Low noise axial type
		Quantity		1	1	1	1	1	1	2
	Refrigerant	Refrigerant		R22/R407C
		Refrigerant control		External balance type thermal expansion valve
Air filter				Initially effect plate filter
Dimensions		L	mm	1400	1400	1600	1600	1850	1850	2200
		W	mm	1050	1050	1200	1200	1400	1400	1800
		H	mm	1050	1050	1050	1050	1200	1200	1520
Weight			kg	200	230	260	300	550	600	850

GT-WKR Series-Roof Top AH Specifiaction 2
Model   GT-WKR-				40	50	60	70	90	110	120
Specification	Cooling capacity 1*		kW	42.0	52.8	61.2	70.2	87.5	105.1	122.5
	Heating capacity  2*		kW	44.1	55.4	62.5	73.8	92.8	112.0	130.0
	Supply air 3*		m3/h	7000	8600	10000	12000	14500	17000	20000
	Static pressure 3*		Pa	300	300	300	350	350	400	400
	Noise 4*		dB(A)	68	69	69	70	71	72	72
	Power			3N-380V-60Hz
	Total capacity			17.24	20.72	23.0	29.76	39.1	44.66	51.58
	Color			White
ooling system	Compressor	Type		Efficient scroll closed
		Quantity		2	2	2	2	2	4	4
	Supply air fan	Type		Low noise centrifugal type
		Capacity	kW	2.2	3	4	4	5.5	7.5	7.5
	Evaporator	Type		Inner grooved copper tube and aluminum fin
		Fin type 5*		Slotted fin hydrophilic aluminum fin
	Condenser	Type		Inner grooved copper tube and aluminum fin
		Fin type 5*		Rippled hydrophilic aluminum fin
	Condenser fan	Type		Low noise axial type
		Quantity		2	2	2	4	4	4	4
	Refrigerant	Refrigerant		R22/R407C
		Refrigerant control		External balance type thermal expansion valve
Air filter				Initially effect plate filter
Dimensions		L	mm	2200	2600	2600	3200	3200	6000	6000
		W	mm	1800	2200	2200	2200	2200	2300	2300
		H	mm	1520	1700	1700	1900	1900	2300	2300
Weight			kg	850	1100	1250	1400	1650	1850	2200

Note:
1. Cooling condition: Indoor dry bulb/wet bulb:29/19ºC,Outdoor dry bulb/wet bulb:46/24ºC
2. Heating condition:Indoor dry bulb/wet bulb:20/-ºC;outdoor dry bulb/wet bulb:7/6ºC;
3. The air volume and static pressure`s specification in the table is standard, and can be designable.
4. Noise data is measured in the front of the units when cooling under the standard air volume.
5. Fin type and material can be designable.
