| Prod Model: |
W-210A/W-250A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Guangdong China (Mainland) |
| Type: |
Passive Two Way Full Range Line Array |
| Frequency Response: |
40Hz-150Hz±3db |
| Size: |
10" Neodymium Woofers |
| Power: |
1200W(RMS)2400W(Peak)(W-250A) |
| THD: |
<0.005% |
| Noise: |
<95dB |
| Certification: |
CSA |
Product Description

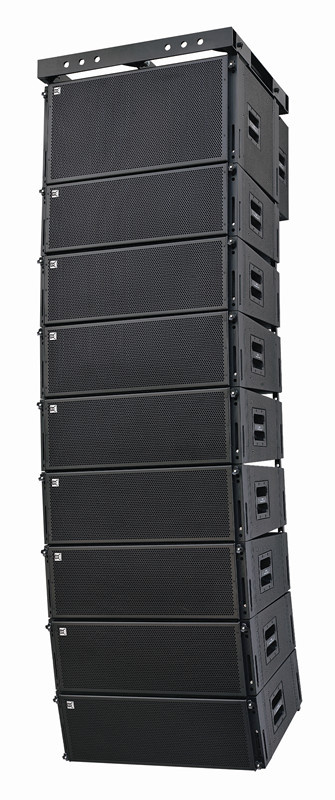

W-210A is A Line array system which is made of two 10" neodymium woofers, two 2" titanium neodymium compression drivers and high-performance low-distortion compression driver with innovative horn design of waves phase philosophy. It is a zero interfere line array with multi- speaker combined to produce accurate directivity and maximum dynamic impact. Wherever low frequency extension is required, a W-210A will integrate seamlessly with W-250A line array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. W-210A is very versatile and scalable for a wide range of applications in touring performance, corporate and fixed installation fields.
DESCRIPTION and APPLICATION
W-250A is dedicated high performance sub-bass system designed to augment the low frequency output of the W-210A, W-250A is a sub-bass enclosure which must be flown with W-210A. So its physical dimensions are identical to the W-210A and it is equipped with the same proprietary rigging system. It features with twin 15" neodymium woofers with magnet structure and suspensions engineered for maximum linear excursion.
Model W-210A/W-250A
Type Line array system
Line array sub-bass system(W-250A)
Frequency Response 60Hz-20kHz± 3dB
40Hz-150Hz± 3dB(W-250A)
Power handling LF 600W(RMS)1200W(PEAK)
HF 160W(RMS)320W(PEAK)
1200W(RMS)2400W(PEAK)(W-250A)
Sensitivity LF 99dB(1W@1M)
HF 108dB(1W@1M)
112dB(1W@1M)(W-250A)
Max@S. P. L LF 127dB(PEAK/1M)
HF 127dB(PEAK/1M)
143dB(PEAK/1M)(W-250A)
LF section 2× 10"(260mm) neodymium woofer
75mm(3in)coil
Components 2× 15"(380mm) woofers
100mm(4in)coil(W-250A)
Nominal impedance 16 ohm
4 ohm(W-250A)
HF section 2× 2"neodymium compression driver
With 51mm titanium diaphragm
Nominal impedance 16 ohm
Output section 2-channel
Dispersion pattern 110° H× 9° V
Finish Water-proof, wear-resistant textured black paint
Array design Arrays of less than 3× W-210A will
Provide poor dispersion control and
Are neither recommended nor supported
Speaker cables LF 1(+)1(-) HF 2(+)2(-)
1(+)1(-) (W-250A)
Rigging system Please refer to the W-210A user
Manual before any operation
Input connectors 2× NL4MP speakon
Recommend crossover LF 70Hz-2kHz
HF 2kHz-20kHz
35Hz-120Hz(W-250A)
Dimensions 855× 293× 600mm(W× H× D)
855× 440× 820mm(W× H× D)(W-250A)
Package dimensions 925× 360× 670mm/0.22cbm
925× 510× 890mm/0.42cbm(W-250A)
Enclosure Birch plywood
Net weight 42kg (W-210A)/ 72kg (W-250A)
Gross weight 45kg (W-210A)/ 76kg (W-250A)
Model |
W-210A/W-250A |
|
Type |
Line array system |
|
Line array sub-bass system(W-250A) |
|
Frequency Response |
60Hz-20KHz±3dB |
|
40Hz-150Hz±3dB(W-250A) |
|
Power handling |
LF 600W(RMS)1200W(PEAK) |
|
HF 160W(RMS)320W(PEAK) |
|
1200W(RMS)2400W(PEAK)(W-250A) |
|
Sensitivity |
LF 99dB(1W-1M) |
|
HF 108dB(1W-1M) |
|
112dB(1W-1M)(W-250A) |
|
Max-S.P.L |
LF 127dB(PEAK/1M) |
|
HF 127dB(PEAK/1M) |
|
143dB(PEAK/1M)(W-250A) |
|
LF section |
2×10"(260mm) neodymium woofer |
|
75mm(3in)coil |
|
Components |
2×15"(380mm) woofers |
|
100mm(4in)coil(W-250A) |
|
Nominal impedance |
16 ohm |
|
4 ohm(W-250A) |
|
HF section |
2×2"neodymium compression driver |
|
with 51mm titanium diaphragm |
|
Nominal impedance |
16 ohm |
|
Output section |
2-channel |
|
Dispersion pattern |
110°H×9°V |
|
Finish |
Water-proof,wear-resistant textured black paint |
|
Array design |
Arrays of less than 3×W-210A will |
|
provide poor dispersion control and |
|
are neither recommended nor supported |
|
Speaker cables |
LF 1(+)1(-) HF 2(+)2(-) |
|
1(+)1(-) (W-250A) |
|
Rigging system |
Please refer to the W-210A user |
|
manual before any operation |
|
Input connectors |
2×NL4MP speakon |
|
Recommend crossover |
LF 70Hz-2kHz |
|
HF 2kHz-20KHz |
|
35Hz-120Hz(W-250A) |
|
Dimensions |
855×293×600mm(W×H×D) |
|
855×440×820mm(W×H×D)(W-250A) |
|
Package dimensions |
925×360×670mm/0.22cbm |
|
925×510×890mm/0.42cbm(W-250A) |
|
Enclosure |
Birch plywood |
|
Net weight |
42kg (W-210A)/ 72kg (W-250A) |
|
Gross weight |
45kg (W-210A)/ 76kg (W-250A) |
