| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outlet Water Max Temp: |
60 Celsius Degree |
| Outlet Water Rated Temp.: |
55 Celsius Degree |
| Refrigerant: |
R410A |
| Compressor: |
Panasonic |
| Installation: |
Floor Type |
| Usage: |
Bathroom |
| Water Storage Mode: |
Water Storage Type |
| Control Mode: |
Digital Display |
| Pressure: |
Pressurized |
| Interior Material: |
Stainless Steel |
| Bearing Or Not: |
Closed |
| Housing Material: |
Coated Steel Plate |
Product Description

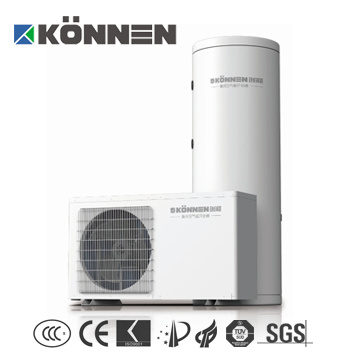

Domestic Air Source Heat Pump Water Heater
Air Source Heat Pump
Air to water Heat Pump
Air-source heat pump Cycling Water Heater Home Use Series:
Suitable for households of 2-13 people
By creating comfortable living conditions
So that you can enjoy
Hot water bath
And fashionable life
In your own house
Features:
Split-type design and independent water tanks for flexible and convenient connection of water pipes.
Flexible installation of main unit and water tank.
Dynamic heat exchange between water and coolant as there is no coolant pipe in the water tank. This will reduce the damping of the heat exchanger and thus ensure adequate flow of water, prevent leakage caused by corrosion of copper tube, and reduce scale formation in the system.
Free selection of water tank sizes.
Stainless steel water tank with good insulation and less scale formation to ensure the quality of water.
Isolated water and electricity system to ensure operating safety.
Constant Outlet Water Temperature
Water temperature can be set between 40 degrees and 60 degrees, with an difference of less than 1degrees. The outlet temperature can be easily controlled and the adjustment will cause no significant change in water temperature. Whether the outlet quantity is increased or decreased, the water temperature will remain unchanged.
The RL series can produce constant temperature water no matter how the flow is adjusted. In the case of common gas water heaters, the water temperature will change when the flow is adjusted. The temperature will go down when the outlet flow is decreased; Otherwise, it will go up. A sudden rise in water temperature may cause skin burns. When the water flow is too small, the heater may be choked off. For those with a complicated pipe system, the water temperature will be more difficult to control.
Convenient Use of Hot Water.
| Air Source Heat Pump Domestic Type (circulation type) |
| Model Parameter | KXRS-3.5 IH | KXRS-5.0 IH | KXRS-7.0 IH | KXRS-9.0 IH |
| Rated Heating capacity (KW) | 3.5 | 5 | 7 | 9 |
| Rated outlet hot water quantity (L/H) | 75 | 107 | 150 | 193 |
| Outlet water rated temp ( C ) | 55 |
| Outlet water max temp ( C ) | 60 |
| Electricity Parameter | Rated power (KW) | 0.9 | 1.24 | 1.71 | 2.26 |
| Rated current (A) | 4.1 | 5.6 | 7.8 | 10.3 |
| Power supply | 220V~/50HZ |
| Max power (KW) | 1.25 | 1.58 | 2.25 | 2.72 |
| Max current (A) | 5.7 | 7.2 | 10.3 | 12.4 |
| Refrigerant | R410a(R134a/R407c/R22) |
| Dimensions mm | 950*360*560 | 1010*360*630 |
| Weight KG | 40 | 60 | 67 | 72 |
| Waterproof grade | IPX4 |
| Defend electric shock grade | GRADE 1 |
| Noise Db | 50Db | 53Db |
| Compressor | Panasonic |
| Testing Conditions | Ambient Temperature | Water Inlet/Outlet Temp. |
| Dry Bulb Temp. | Wet Bulb Temp. | Water Inlet Temp. | Water Outlet Temp. |
| 20C | 15C | 15C | 55C |
| |
| Water Tank |
| Specifications | 150L | 200L | 300L | 500L |
| Pipe size (mm) | 2 x DN15 | 2 x DN20 |
| Water Tank Size | φ470 x 1390 | φ520 x 1535 | φ620 x 1455 | φ700 x 1775 |
| Installation | floor type |
| Concurrent User | 3-4 people | 4-5 people | 6-8 people | 10-13 people |
