| Power: |
Solar |
| Compressor: |
48V DC Compressor |
| Inverter To 110/220V: |
No Need |
| 100% Off Grid: |
Yes |
| Warranty: |
3 Years for Whole System |
| Solar Panels: |
No Need |
| Batteries: |
No Need |
| Solar Controller: |
No Need |
| Manufacturer: |
Yes |
| Color: |
White |
| Type: |
Window Mounted Air Conditioners |
| Capacity: |
18000-24000 BTU |
| Usage: |
Room |
| Indoor Machine Noise: |
<23dB |
| Certification: |
CCC |
| China Energy Efficiency Standard: |
Level 1 |
| Cooling/Heating: |
Cooling/Heating |
| Power Source: |
Solar |
| Power Type: |
DC |
| Condition: |
New |
Product Description

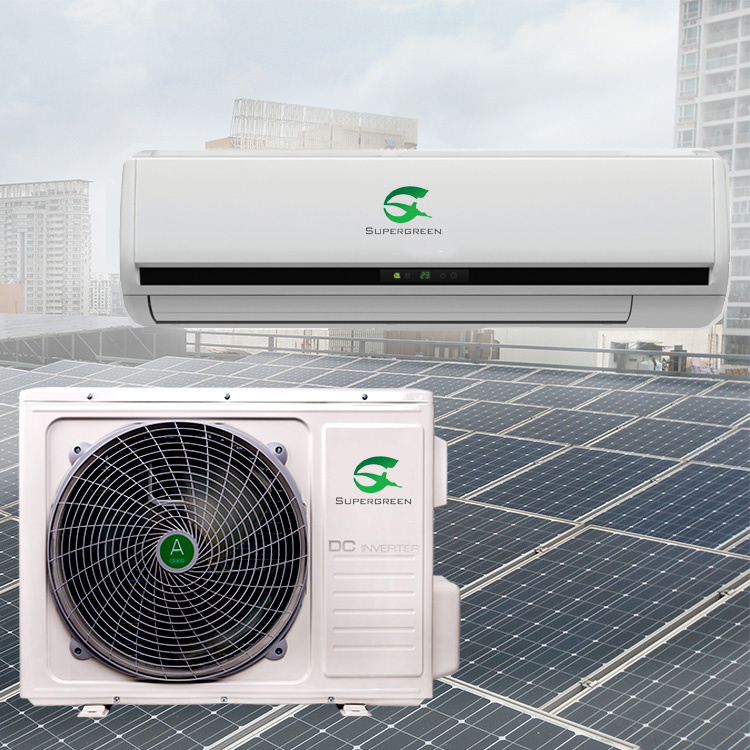

Home off grid dc compressor 48V lower price 100% solar air conditioner
100% Off Grid Solar Air Conditioner
(9000BTU-24000BTU)
Features:
1.Off Grid Working with 100% solar energy
2.DC 48V compressor,no need inverter
3.Supreme high efficiency rating reach to 5.62
4.8hours-36hours working time option
Specifications:
| Model No. | TKF-26GW/DC | TKF-35GW/DC | TKF-50GW/DC | TKF-72GW/DC |
| 1HP | 1.5HP | 2HP | 3HP |
| 0.75ton | 1ton | 1.5ton | 2ton |
| Performance | |
| Capacity | Cooling | Btu/h | 9000 | 12000 | 18000 | 24000 |
| W | 2600 | 3500 | 5200 | 7200 |
| Heating | Btu/h | 10000 | 13000 | 20000 | 27000 |
| W | 2800 | 3700 | 6000 | 7900 |
| Noise | Indoor | dB(A) | ≤40 | ≤42 | ≤43 | ≤50 |
| Outdoor | dB(A) | ≤50 | ≤52 | ≤54 | ≤58 |
| Air Circulation | m³/h | 450 | 550 | 650 | 1050 |
| Suitable Area | m² | 10~15 | 12~25 | 20~30 | 30~48 |
| EER | W/W | 4.56 | 3.89 | 4.73 | 4.80 |
| Btu/h/w | 15.79 | 13.33 | 16.36 | 16.00 |
| Refrigerant | | R-134A | R-134A | R-134A | R-134A |
| Compressor | DC 48V | DC 48V | DC 48V | DC 48V | DC 48V |
| Operation Temp. | ºC | 17-30 | 17-30 | 17-30 | 17-30 |
| Power Consumption | |
| Power Input | W | 570 | 900 | 1100 | 1500 |
| Rated Current | A | 11.5 | 16 | 22 | 50 |
| Input Power | V | DC 48 | DC 48 | DC 48 | DC 48 |
| Dimension | |
| Indoor Unit | NET | mm | 745*255*195 | 775*260*210 | 1070*385*265 | 1070*385*265 |
| Shipping | mm | 780*240*305 | 840*325*265 | 1100*400*285 | 1100*400*285 |
| Outdoor Unit | NET | mm | 645*245*495 | 790*260*540 | 790*260*540 | 790*260*540 |
| Shipping | mm | 725*320*540 | 910*370*610 | 910*370*610 | 910*370*610 |
| Weight | |
| Indoor Unit | Net/Gross | kg | 11/13 | 13/15 | 15/17 | 15/17 |
| Outdoor Unit | Net/Gross | kg | 38/40 | 45/48 | 48/52 | 48/52 |
| Loading | 20GP | | 98 | 98 | 75 | 75 |
| 40HQ | | 235 | 235 | 175 | 175 |
| Wall Mounted Type DC Solar Air-Conditioner |
| Power Supply:12VDC (11V to 13.5V) |
| Model No. | TKF-11GW/DC(0.5HP) |
| Performance |
| Capacity | Cooling | Btu/h | 4000 |
| W | 1100 |
| Noise | Indoor | dB(A) | ≤40 |
| Outdoor | dB(A) | ≤50 |
| Air Circulation | m³/h | 450 |
| Suitable Area | m² | 10~15 |
| EER | W/W | 4.56 |
| Btu/h/w | 15.79 |
| Refrigerant | | R-134A |
| Compressor | DC 12V |
| Power Consumption |
| Power Input | W | 340 |
| Rated Current | A | 28 |
| Input Power | V | DC 12 |
| Dimension |
| Indoor Unit | Shipping | mm | 745*255*195 |
| NET | mm | 780*240*305 |
| Outdoor Unit | Shipping | mm | 645*245*495 |
| NET | mm | 725*320*540 |
| Weight |
| Indoor Unit | Net/Gross | kg | 11/13 |
| Outdoor Unit | Net/Gross | kg | 38/40 |
| Wall Mounted Type DC24V Solar Air-Conditioner |
| Power Supply:24VDC (22V to 27V) |
| Model No. | TKF-26GW/DC-24 |
| Performance |
| Capacity | Cooling | Btu/h | 9000 |
| W | 1100 |
| Noise | Indoor | dB(A) | ≤40 |
| Outdoor | dB(A) | ≤50 |
| Air Circulation | m³/h | 450 |
| Suitable Area | m² | 10~15 |
| EER | W/W | 4.56 |
| Btu/h/w | 15.79 |
| Refrigerant | | R-134A |
| Compressor | DC 24V |
| Power Consumption |
| Power Input | W | 570 |
| Rated Current | A | 23.8 |
| Input Power | V | DC 24 |
| Dimension |
| Indoor Unit | Shipping | mm | 745*255*195 |
| NET | mm | 780*240*305 |
| Outdoor Unit | Shipping | mm | 645*245*495 |
| NET | mm | 725*320*540 |
| Weight |
| Indoor Unit | Net/Gross | kg | 11/13 |
| Outdoor Unit | Net/Gross | kg | 38/40 |
Meet CE &CCC Standard
