| Prod Model: |
TDWZ4468 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Tdx4467 |
| Certificate: |
Ce Approved |
| Products: |
Flat Open Electric Curtain Controller |
| Feature: |
Blackout, Flame Retardant, Insulated |
| Use: |
Cafe, Home, Hotel, Office, Hospital |
| Style: |
Motorized Curtain |
| Place Of Origin: |
China Tianjin |
| Sample: |
Available, in Charge |
| Control Style: |
Remote Control |
| Cetificate: |
Ce |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
<50m |
| Material: |
Metal |
| Application: |
Curtain Controller |
| Signal Transmission: |
IR Signal |
| Type: |
Remote Control |
| Voltage: |
AC 95-240V |
| Battery Type: |
AC Powered |
Product Description
TAIYITO electric Flat open curtain controller automatically motorized remote control
1> Specification of motorized curtain:
1. Built-in clutch,The curtain can be controlled by remote controller or manual.
2. Safety and credibility,Built-in thermal,Overload,Overtime protection system.
3. ACP ower input,do not need the transformer.Can be used for 30 kgs/10m curtain.
4. Easy to installation,built-in the receiver and automatic limit sensor system.The max.limit sensor distance:17m.
5. Quiet,Stable,Sealed lubricate design.
6. It can be used for straight / curve drapery track, Adapt to family,villa,hotel,office building,school,exhibition room.
2> Character:
1) The system can be easily use under two states including power supply (automatic)
and power-off (manual).
2) Motor: AC tubular motor
3) Poly-aluminum transmission belt, track is Aluminum alloy, very good quality.
4) Control system:
Manual, Remote control, Switch, Infrared remote control, Single control, Group control,
Can work independently, or simple remote controller, or use in intelligently system.
5) Shape:Straight,Curve.
3> Remarks:

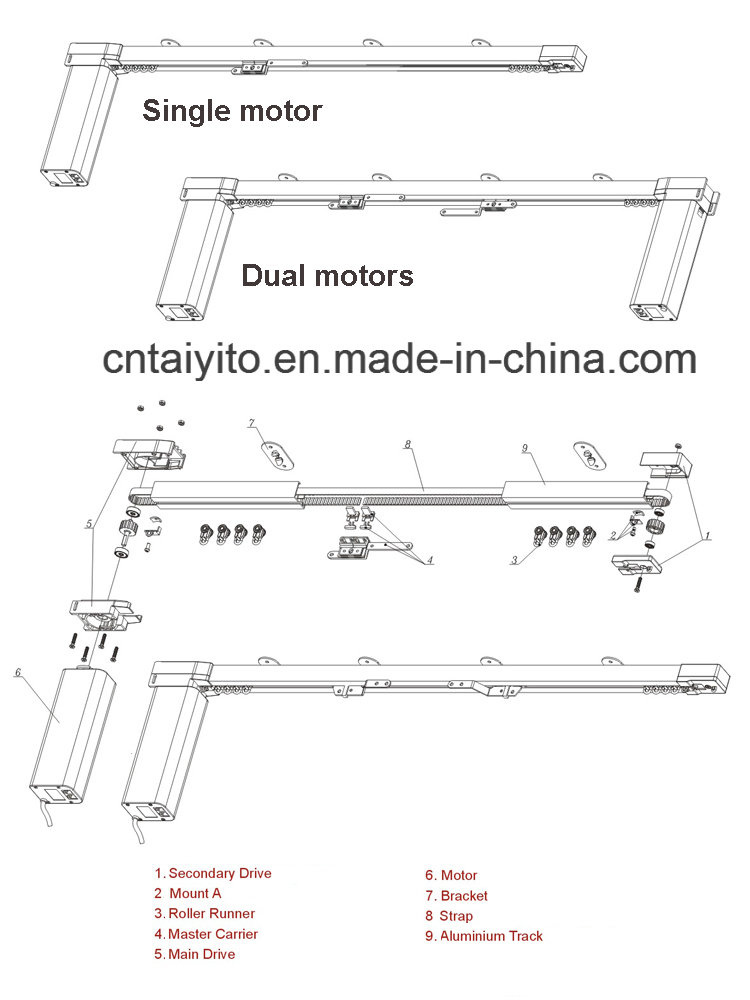

Motor option:single motor system or dual motors system as required.while length over 5.5 m
4> Technical Parameter of motorized curtain:| Rated voltage | AC220V/50HZ, 110V/60HZ |
| Rated power | 45W |
| Max Length of system | 15m |
| Rated speed | 88.6r/min |
| Operate speed | 5.6m/min |
| Protect grade | IP41 |
| Insulate grade | E |
| Torque | 1.2N.m |
| Length of single rail | 5m |
| Max length of join | 12m |
| Safe working load for straight less than 12 m | 35kgs |
5> Terms&Warranty:1.We provide 1 years warranty.2.If the item is defective use by technical reason,you could sent back to us for New one.3.All items must be returned in their original condition.In order to qualify for a refund or exchange of goods.4.Items returned after 7 days of delivery are only eligible for repair. 5.The buyer is responsible for all shipping costs incurred.6.No refund accepted after 30 Days of receipt.7. After receipt of the goods found any questions, please contact us solve the problem 6> Shipment:1.Items are only shipped after payment is received.2.We provide DNJ,EMS,DHL ,TNT for shipping method.3.Delivery time:EMS,UPS,DHL,Fedex and TNT express shipping usually take 3-7 working days depends on the country delivered to.In rare cases,the strict custom clearances will make the delivery time a bit longer,please be patient.4.We are not responsible for any accidents,delays or other issues which are the responsibility of the shipping service.5.Any import charges or fees are the buyer's responsibility.6.Please check out your ADDRESS carefully when processing order. 7> Any needs contact us freely: Contacts: Vivian Phnone: +86-18622126271
