| Prod Model: |
SPCC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Description: |
SPCC Plate |
| Brand Name: |
Cheeho & OEM |
| Heat Treatment: |
Annealed |
| Temper Type: |
Ba |
| Margin Status: |
Ec & Em |
| Surface Condition: |
Sb & SD |
| Surface Quality: |
FC & Fd |
| Inner Diameter: |
508-610mm |
| Approved Certificate: |
SGS & ISO & BV & TUV |
| Standard: |
BS |
| Certification: |
ISO |
| Technique: |
Cold Rolled |
| Stock: |
Stock |
| Steel Grade: |
SPCC |
| Surface Treatment: |
Oiled |
| Application: |
Home Appliance Applied |
| Edge: |
Ec & Em |
Product Description
Brief Introduction

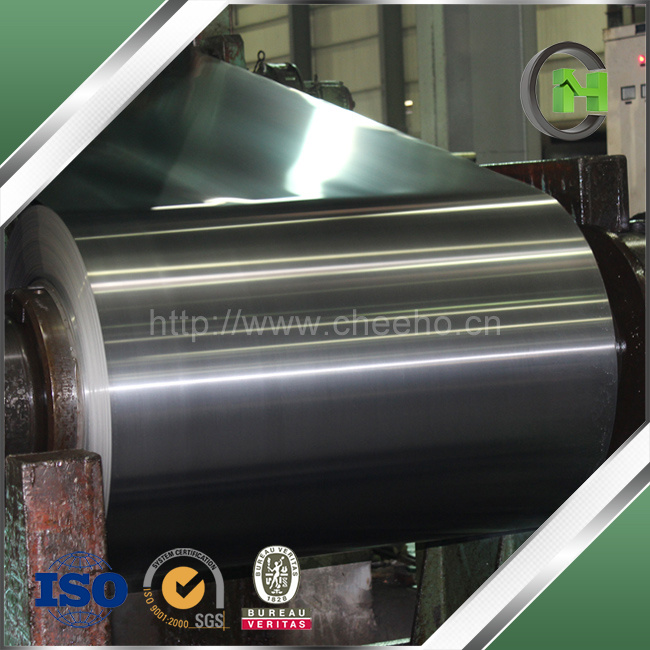

The SPCC Plate is steel that has been worked below its recrystallization temperature by passing it between a pair of rollers. Recrystallization temperature is the temperature at which grains in the lattice structure of the metal have been rearranged, leaving it free of strain and deformations. The SPCC Plate is pre-treated before being cold rolled with a process known as pickling, which uses strong acids to remove scale and other impurities. The SPCC Plate is then passed through rollers to reduce its thickness. Most cold rolling takes place in multiple passes and as the size of the SPCC Plate is further reduced, its strength and hardness both increase, but its ductility decreases. After cold rolling, heating the metal up in a process known as annealing can restore some of its ductility. The final SPCC Plate may be manufactured in the form of sheets, strips, bars, or other forms.
Specification
1. Thickness: 0.4-2.0mm
2. Width: 900-1250mm
3. Inner Diameter: 508mm
4. Weight of Steel Coil: 3-15MT
5. Heat Treatment: Annealed
6. Margin Status: EC & EM
7. Surface Quality: FB&FC
8. Surface Status: SB & SD
9. Surface Treatment: Oiling
Mechanical Properties
1. Yield Strength: ≤ 320MPa
2. Tensile Strength: ≤ 370MPa
3. Elongation (L=50mm, b=25mm) When:
(1) Nominal Thickness <0.25mm: 30%
(2) Nominal Thickness 0.25mm-<0.40: 32%
(3) Nominal Thickness 0.40-<0.60mm: 34%
(4) Nominal Thickness 0.60-<1.0mm: 36%
(5) Nominal Thickness 1.0-<1.6mm: 37%
(6) Nominal Thickness >1.6mm: 38%
Packing
We use Seaworthy Package to make sure SPCC Plate is well-protected during the long ocean voyage.
Application
1. Base metal for coated and dipped products.
2. Home appliance
3. Precise welding tube
4. Flux cored welding wire
5. Bicycle, battery shell,
6. Automobile fitting, hardware
7. Enameling industry etc.
Superiority
1. High precision of dimensional tolerance
2. Excellent mechanical property such as the yield strength and tensile strength, etc.
3. Being highly resistant to denting
4. Exhibits useful magnetic properties
5. High quality surface finish and get well prepared for the surface coating
6. Available in a variety of sizes and shapes with characteristics useful in a wide range of applications
Chemical Components
| Grade | Chemical Components |
| C | Mn | P | S | Alt |
| SPCC | ≤0.12 | ≤0.50 | ≤0.035 | ≤0.025 | ≥0.020 |
| SPCD | ≤0.10 | ≤0.45 | ≤0.030 | ≤0.025 | ≥0.020 |
| SPCE | ≤0.08 | ≤0.40 | ≤0.025 | ≤0.020 | ≥0.020 |
