| Prod Model: |
CLA-6S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Write |
| Weight: |
8.85kg |
| External Panel: |
Pure Color |
| Operation: |
Press Type |
| Structure: |
Floor Standing |
| Usage: |
Medical |
| Air Volume: |
151-300m³/h |
| Type: |
HEPA Filter |
| Certification: |
RoHS |
| Application Area: |
21-30m² |
| Power Source: |
AC Source |
| Operating Principle: |
Active + Passive |
| Purifying Technology: |
HEPA |
| Anion Density: |
>4000000pcs/m³ |
Product Description

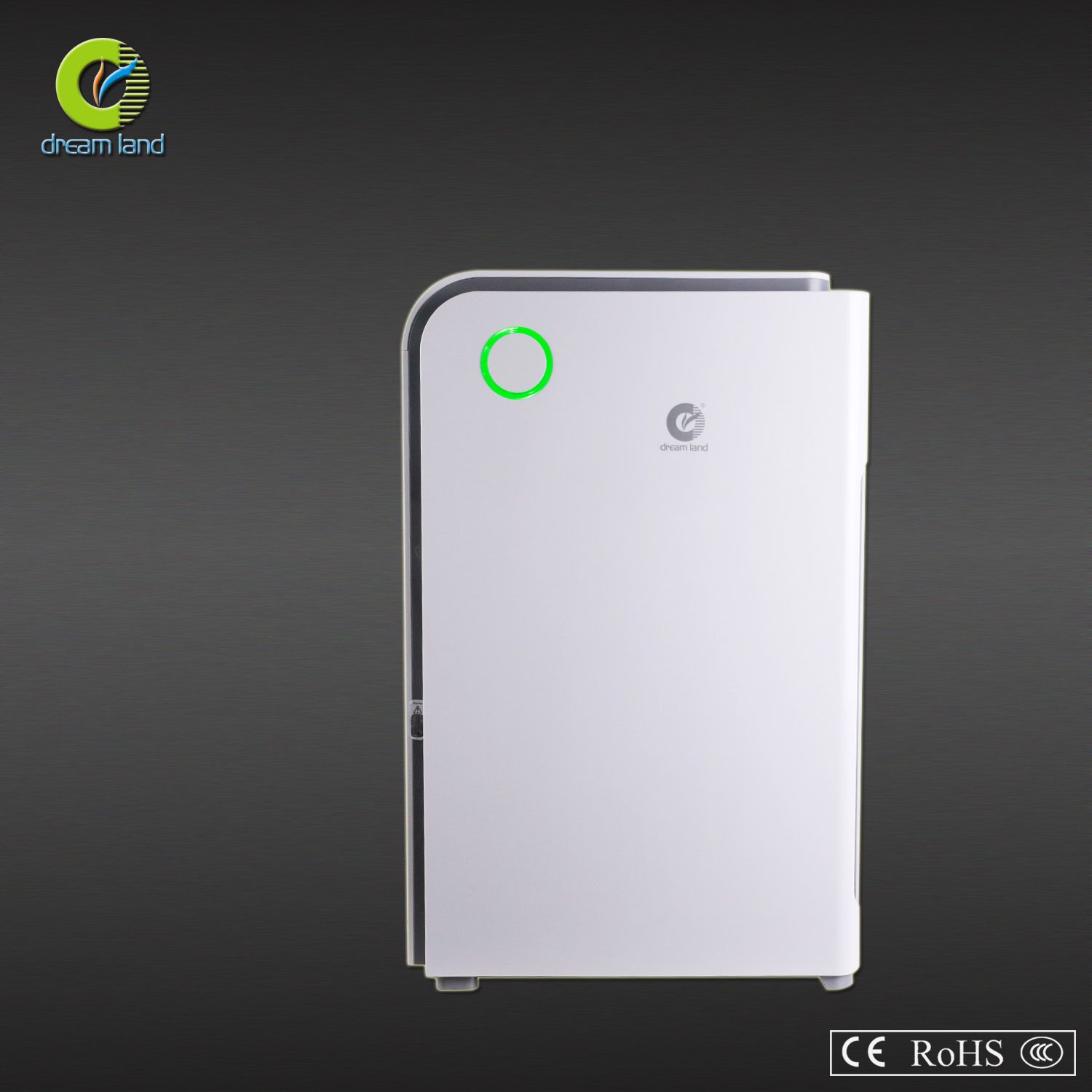

Home Air Purifier, HEPA and Activated Carbon Filter Air Cleane(CLA-6S)
Specifications
1. 7 stages filter to clean the air
2. Adjustment of air speed
3. remote controller
4. remove pet odor, pollen
Features:
(1)Anion generator.plasma technology using positive and negative ions to purify air
(2)HEPA filter of high efficiency
(3)UV lamp
(4)Formaldehyde filter
(5)Activated carbon filter-Highly effective
(6)Nano Silver
(7)Air qiality intellignent sensor
(8)Adjustment of air speed
(9)Remote control,time setting
| Model | CLA-6S |
| color | white |
| voltage | 220V/50Hz or 110V/60Hz |
| cord length | 150 |
| Power consumption | 50W |
| suitable area | 40-80 |
| fan speed | 4 speeds |
| filters stages | six stages |
| filters | Pre-filter, HEPA, activated carbon, photo catalyst, 2 UV lights, Negative ions |
| Air Flow Rate | 410m³/h |
| CADR | 320m³/h |
| Noise | 18~58dB(A) |
| cover material | 121HABS |
| Formaldehyde Decomposition rate | 98% |
| PM2.5 capture | 99% |
| Negative ion | 10 million ions/cc |
| Product size | 406*188*625 |
| Net weight | 8.85kg |
| Gross weight | 9.92kg |
| Children lock | N |
| Extra function | particulate sensor, touch panel |
| Packing Size | 450*240*670mm |
| Loading quantity per 20'/40'/40'HQ | 360/736/900 |
more details:
1, Pre-Filter
Adopting non-woven cotton material
2, Antimicrobial Filter
The 5 microns filter with antimicrobial agent can efficiently kill bacteria in the air with efficiency more than 99%.
3, High efficiency HEPA Filter
The precision of the HEPA filter is 0.01 micron, and it is able to eliminate particles which are larger than 0.01micron with the filtration rate of 99% or more. Dust, bacteria, fungi, viruses, allergens and other small and tiny particles are not able to get through the HEPA filter. It can also remove smoke smell.
4, Cold Catalyst Filter
The product is of non-toxic, non-corrosive and non-inflammable. It works under normal condition and produces only water and carbon dioxide.
5, Cellular-Activated Carton Filter
It has good absorption and dust collection characteristics with more than 98% absorption rate of Benzene, toluene, xylene, formaldehyde, ammonia etc harmful gas.
6, Anion Release
7, Ultraviolet Sterilize Light
8.touch screen
Installation instructions:
1. Remove all packaging materials, and put the machine on the dry, smooth, level ground.
2. Hold the grooves on both sides of the front panel, to pull the panel.Pull the door gently toward the top.
3. Take off all inside the purifier filter and UV lamp.
4. Remove filter all the packing materials and cases on the UV lamp.
5. Holding the ends of the UV lamp and put the UV lamp metal on metal card slot. take a screwdriver as shown pressure occurrence crack of the metal card slot until the metal card slot, at that time the UV lamp slowly turning into metal needle. At the other end is also the same operation (not in ), and then sequentially installed screen pack in turn.
6. Install the pre-filter as the picture.
7. Reinstall the front panel, alignment and inserted into a groove, the fixed then gently pushed out the door
