Product Description

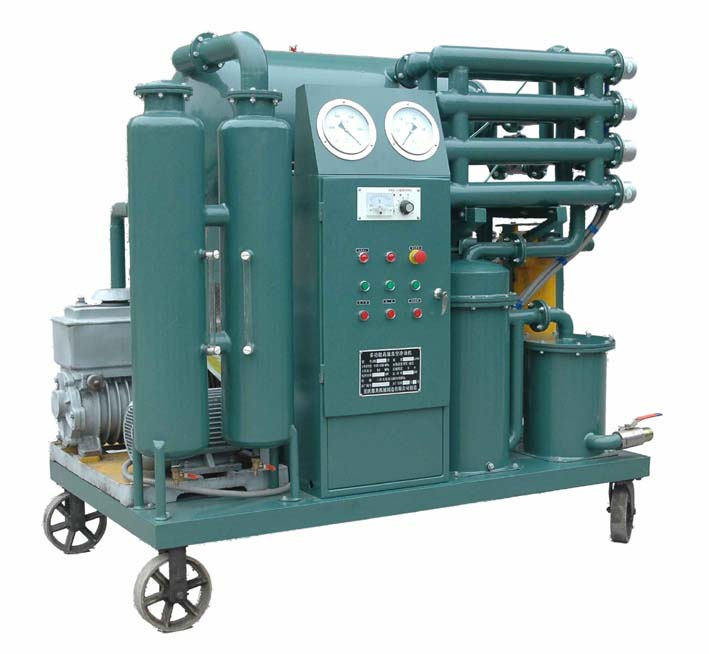

The ZL series highly effective vacuum oil purifier is an appointed and customized product by China State Electric Power Corporation. The purifier adopts a high effective vacuum and the internationally advanced stereo-evaporation technology, which are also incorporated with a number of state-of-the-art patent technologies.
These technologies enable a highly effective removal of water, gas and impurity without switch off of power, shutdown of machine or change of oil which allows transformers running as energized. With these technologies, the oil's withstand voltage is increased and the oil quality is improved, which recovers the waste oil back to the specifications of new oil and at same time ensures the safe operation of power generation equipment.
The product is widely applied to areas of power station, Power Company, transformer substation, railway, petroleum, chemical and metallurgy. The product is also a special facility of electric power and industrial enterprises for treatment of various insulation oils including non-conformable transformer oil, mutual inductor oil and circuit breaker oil, as well as a best choice for vacuum oiling of power equipment and drying of moisture of power equipment.
-Characteristics:
1. It adopts large-area three-dimension flash distillation technique for unique, high efficiency dehydration and degassing process.
2. Safe electric heating system ensures even heating and constant oil temperature.
3. Precise fine multi-stage filtration system: The element is of high quality material, with big capacity of containing pollutants, good mechanic strength.
4. Advanced pressure protection device and infrared oil level control system, simple and safe in operation.
5. The equipment adopts chain control system in draining water and gas. No oil leaking from the outlet of vacuum pump, which will extend the life of vacuum pump.
6. This machine can be used together with BZ transformer oil regenerating equipment to get rid of acid, dyes, free carbon, etc.
|
Technical Parameters |
|
|
|
|
|
|
|
|
ZL series of high-efficient vacuum oil purifier |
|
|
|
|
|
|
|
|
Model |
ZL-20 |
ZL-30 |
ZL-50 |
ZL-70 |
ZL-100 |
ZL-150 |
ZL-200 |
|
Rating flux L/min |
20 |
30 |
50 |
70 |
100 |
150 |
200 |
|
Vacuum degree Mpa |
-0.05~ -0.099 |
|
|
|
|
|
|
|
Temperature scope |
60~80 |
|
|
|
|
|
|
|
Oil pump pressure Mpa |
0.05~0.3 |
|
|
|
|
|
|
|
Integration power kw |
25 |
28 |
37 |
47 |
56 |
68 |
78 |
|
Power Supply |
50Hz 380V( or at user's option ) |
|
|
|
|
|
|
|
Working NoisedB(A) |
≤ 65~ 85 |
|
|
|
|
|
|
|
Voltage kv |
≥ 54 |
|
|
|
|
|
|
|
Water amount of oil |
≤ 5ppm |
|
|
|
|
|
|
|
Gas amount of oil % |
≤ 0.1 |
|
|
|
|
|
|
|
Filter precision μm |
1~5 |
|
|
|
|
|
|
|
External dimension mm |
1100 700 1300 |
1100 700 1350 |
1200 800 1400 |
1250 850 1450 |
1300 900 1520 |
1400 1000 1600 |
1550 1200 1800 |
|
Dimension and weight will be changed with changing the technical specification |
|
|
|
|
|
|
|
