| Prod Model: |
P10-ODIS-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Delivery Time: |
Within 7 Days |
| Packing Way: |
Wooden Case and Flight Case |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Certification: |
ETL |
| Pixel Pitch: |
10mm |
| Display Function: |
Video Display |
| Application: |
Advertising |
| Scanning Mode: |
1/4 Scan |
| Pixel Density: |
10000 dot / m² |
| Average Power Consumption: |
600W / m² |
Product Description

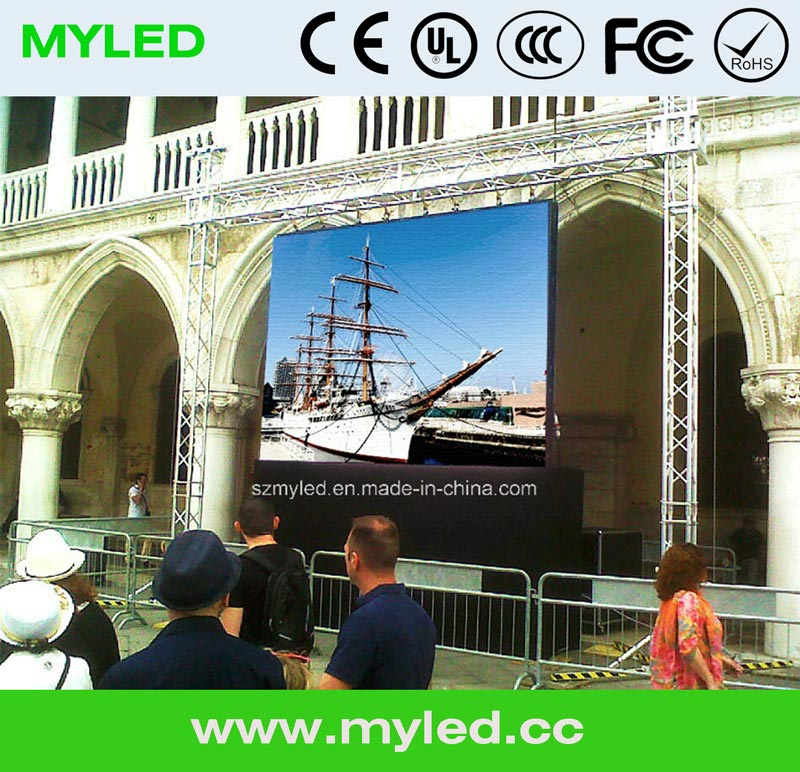

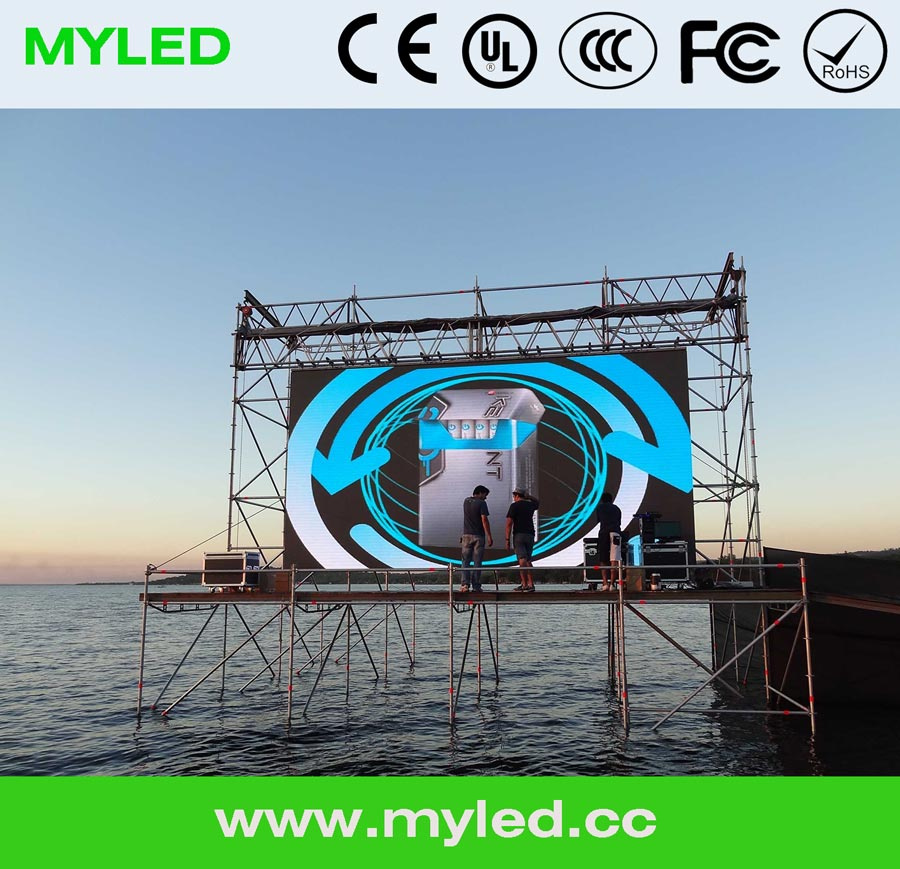

Highest Effective P10 Outdoor LED Display
Products feature:
1.Stable performance,wide applicability, high brightness, high protection grade,superb performance/price ratio. 2.The cabinets, featuring great moisture and corrosion proofing, enable themselves to work in all weather conditions.
3.High brightness enables longer viewing distance and ensures the spectators far from the screen can still enjoy what is shown, even under direct sunlight.
4.Superb performance/price ratio offers you both top notch quality and reasonable price, maximizing the value of your investment.
Main Parameter |
Category |
Parameter |
Pixel Pitch |
10mm |
Optimum Viewing Distance |
10-25m |
Density of Pixel |
10000pixels/ |
Brightness |
≥5000nite |
≥6500nite |
Module Resolution |
32*32 |
LED Encapsulation |
DIP346 1R1G1B |
SMD5050 1R1G1B |
Driving Method |
Real 4 Scan |
Real 2 Scan |
Optimum Viewing Angle |
H: 110°V:50° |
H: 120°V:100° |
Module Size |
320*320*28.4(mm) |
160*160*22.5(mm) |
Module Power |
50w |
70w |
Module Weight |
1200g |
1100g |

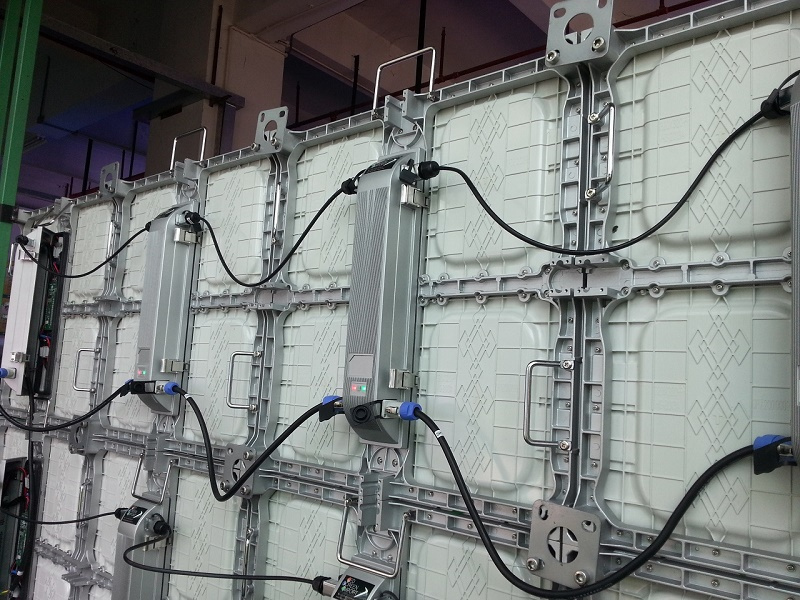

Cabinet Size |
960*960*178.4(mm) |
960*960*173(mm) |
Cabinet Resolution |
96*96 |
Cabinet Power |
1125w |
1100w |
Cabinet Weight |
55kg |
49kg |
IP Rating |
Front/Rear:IP65/IP43 |
Refresh Rate |
1000-4000Hz( Different according to the different Driving IC ) |
Luminance Consumption |
Less than 5% after 1000 hours Ageing test, testing current 30mA, under normal temperature25ºC. |
MTBF |
>5000hours |
Defective Dot Rate |
<0.0001 |
Life Span |
>100000hours |
Working Voltage |
110-240 AC±10% 50-60Hz |
Working Temperature/Humidity |
-30ºC- +50ºC/10-90%RH |
Storage Temperature/Humidity |
-40ºC- +60ºC/10- 90%RH |
Input Signal |
RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc |
Connector |
CAT5 Cable(Length≤1430m),Optical link(Length≤20km,Optional) |
Note: The above parameter is just for reference. Changes can be made according to customers' requirements. |
