| Prod Model: |
ZSOUND MS1500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Lead Time: |
7-10 Days |
| Type: |
Digital Processor |
| Size: |
482*470*133mm |
| Output Power: |
8&4ohm Stereo Power |
| Frequency Response: |
20Hz-25kHz+/-0.5dB |
| Signal Noise Ratio (dB): |
95dB |
| Input Connectors (Per.CH): |
3-Pinxlr, Electronically Balanced |
| Power Requirement: |
200-240V~(50Hz-60Hz) |
| Net Weight: |
30kg |
| Service: |
OEM/ODM |
| Used For: |
Professional |
| Voltage: |
AC 220V |
| Function: |
Post Amplifier |
| Tube Type: |
Transistor Amplifier |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
AB |
| Usage: |
Sound Reinforcement |
| Sound Channel: |
Stereo |
| Output Number: |
2 |
Product Description

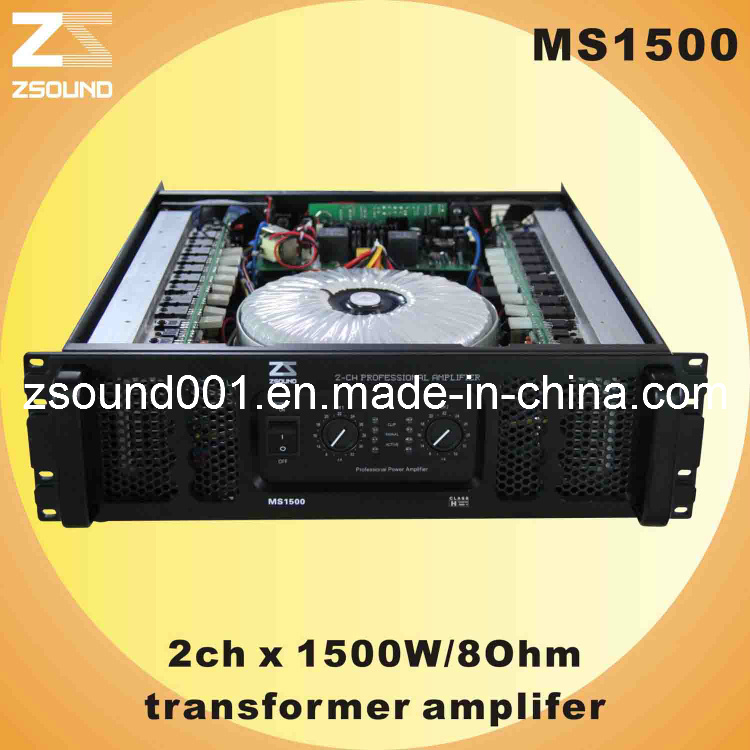

High watts 1500W PA power amplifier
1.2chx1500W/8Ohm 2CH amplifier
2.2U compact design, perfect performance
3. Adopts Toshiba transisitor
4. Welcome in DJ market
ZSOUND audio - MS1500 2 channel amplifier
Model No.: MS1500 amplifier
8 ohms stereo power: 2x1500W
4 ohms stereo power: 2x2500W
It applies Neutrik connector for input and output, uses Japanes ELNA Audio coupling capacity. And it features H class circuit with excellent and stable sound quality.
Huge capacity power supply, high-quality component and efficient cooling system have completely en sured ZSOUND amplifier's excellent stability.
Frequency response: 20Hz~25kHz± 0.5dB
THD+N(Rated power, 4 Ohm / kHz)%: 0.1%
Signal noise ratio: 95dB
Input connectors(per. CH): 3-pin XLR, electronically balanced
Input impedance: 20KOhm Balanced / 10 Ohm Unbalanced
Output connectors: Speakon Connectors ( Neutrik)
Power requirement: 200-240V~(50Hz-60Hz)
Dimension: 482*535*133mm
Weight: 42kg
|
2ch Professional Amplifier |
MS1500 |
|
Output power |
|
8Ω Stereo power |
2× 1500W |
|
4Ω Stereo power |
2× 2500W |
|
|
|
Technical specification |
|
Frequency Response |
20Hz~25kHz± 0.5dB |
THD+N(Rated power,
4Ω /KHz)% |
0.1% |
|
Signal Noise Ratio(dB) |
95dB |
|
Connectors |
|
Input connectors(per. ch) |
3-pin XLR, electronically balanced |
|
Input imdepance |
20kΩ Balanced/10kΩ Unbalanced |
|
Output connectors |
Speakon Connectors (Neutrik) |
|
Power |
|
Power Requirement |
200v~240v(50Hz~60Hz) |
|
|
|
Dimension |
482× 470× 133mm |
|
Weight |
42kg |
