| Prod Model: |
H Type |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Port: |
Ningbo or Shanghai |
| Rated Current (a): |
3A-150A |
| Rated Voltage (V): |
250V-450V |
| Frequency: |
250V-450V |
| Poles: |
1p-12p |
| Material: |
Plastic |
| Inserts: |
Brass |
| Colour: |
Any Colour Is Available Upon Your Request. |
| Cable Range: |
2.5mm2-40mm2 |
| Environmental Protection: |
General |
| Shape: |
Rectangle |
| Application: |
Battery |
| Contact Termination Form: |
Screws Fixed |
| Connection Mode: |
Push-Pull Connection |
Product Description

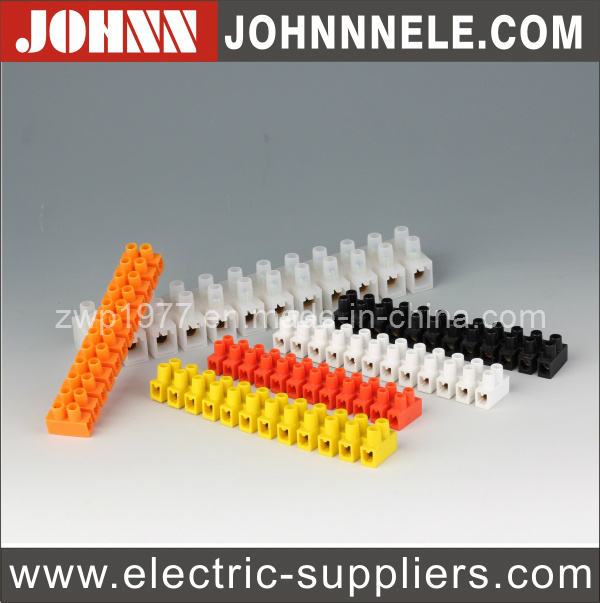

Detailed Information of H Type Terminal Block
1. Model Number: H Type
2. Material: PE, PA, PP.
3. Working Temperature:
*PE: -40º C to 65º C.
*PA: -30º C to 110º C.
*PP: -20º C to 90º C.
4. Colour: Natural, Black, White, Yellow, Orange and any colour is available upon your request.
5. HS Code: 8536900000
6. Samples: H Type Terminal Block's samples is available.
7. Material Feature:
* PE, Polyethylene, good pliability, transparence, extensibility, resist dissolve, radiation.
* PA, Polyamide 66, 94-2 grade. Inflaming retarding, good resist dissolve, good bounce impact fore.
* PP, Polypropylene, inflaming retarding, low transparency, low rigidity, good bounce impact force.
8. Qualification Certificate: CE, RoHS, EN, UKAS, SGS.
9. Delivery Time: Within 25 days after receipt deposit.
10. Delivery Methods: By Sea or By Air (Express DHL, Fadex, TNT).
11. Payment Terms: L/C, T/T, Western Union, Money Gram; 30% deposit, balance see the copy of B/L by email or negotiation.
12. Unit Price: The price is negotiable.
Company Profile
Yueqing Jianghong Electrical Appliance Factory is a leading manufacturer and exporter that specializes in developing, manufacturing and selling electrical appliances and accessories. Our products enjoy an excellent reputation both in domestic and overseas markets. Our main products include Terminal Block, Mini Circuit Breaker, Moulded Case Circuit Breaker, Cable Gland, Voltage Stabilizer, Solar Charge Controller, Distribution Box, Junction Box, Fuse Box, Meter Socket, Cable Tie and etc.
Our company is dedicated to providing reliable products and the best services. Our company is equipped with modern production lines and high-quality controlling equipment. Our well-trained professional experts and workers can satisfy users' needs at any time. Our products have passed ISO9001 certification. Many of our products have obtained international certificates, such as CE and RoHS.
We sincerely welcome new and old customers contact us by email or calls to discuss cooperation and make a common development, and Welcome to make a field inspection of our factory!
|
ITEM NO |
Section Size
(mm 2 ) |
L
(mm) |
W
(mm) |
H
(mm) |
A
(mm) |
B
(mm) |
|
H-3A |
2.5/4mm 2 |
93 |
15.5 |
12 |
5 |
8.2 |
|
H-5A |
6mm 2 |
107 |
15 |
13 |
6 |
9 |
|
H-6A |
6mm 2 |
112 |
17 |
14 |
7.8 |
9.2 |
|
H-10A |
10mm 2 |
125 |
21 |
16.5 |
8.7 |
11.1 |
|
H-15A |
12mm 2 |
134 |
22 |
18 |
9.8 |
12 |
|
H-20A |
14mm 2 |
143 |
22 |
19 |
10.1 |
12.2 |
|
H-30A |
16mm 2 |
168 |
24 |
21 |
11.2 |
15.1 |
|
H-60A |
25mm 2 |
193 |
31 |
24 |
13.8 |
17.2 |
|
H-80A |
30mm 2 |
208 |
37 |
30 |
15 |
19 |
|
H-100A |
35mm 2 |
230 |
38 |
33 |
17.1 |
21 |
|
H-150A |
40mm 2 |
260 |
43 |
34 |
23.1 |
25.2 |
|
ITEM NO |
QTY/CTN |
Package Size
(CM) |
GW
(KGS) |
NW
(KGS) |
|
H-3A 2.5/4MM |
1200 |
41 |
20 |
31 |
22 |
21 |
|
H-5A 6mm 2 |
1000 |
40 |
22.5 |
28.5 |
22 |
21 |
|
H-6A 6mm 2 |
1000 |
45 |
23 |
29 |
22 |
21 |
|
H-10A 10mm 2 |
800 |
43.5 |
26.5 |
34 |
26 |
25 |
|
H-15A 12mm 2 |
500 |
38 |
28 |
30 |
26 |
25 |
|
H-20A 14mm 2 |
500 |
38.5 |
28.5 |
29.5 |
27 |
26 |
|
H-30A 16mm 2 |
300 |
38 |
34 |
21.5 |
19 |
18 |
|
H-60A 25mm 2 |
200 |
40 |
33 |
25 |
24 |
23 |
|
H-80A 30mm 2 |
100 |
38.5 |
22 |
32 |
19 |
18 |
|
H-100A 35mm 2 |
100 |
39.5 |
24 |
31 |
19 |
18 |
|
H-150A 40mm 2 |
50 |
45.5 |
27 |
18.5 |
20 |
19 |
