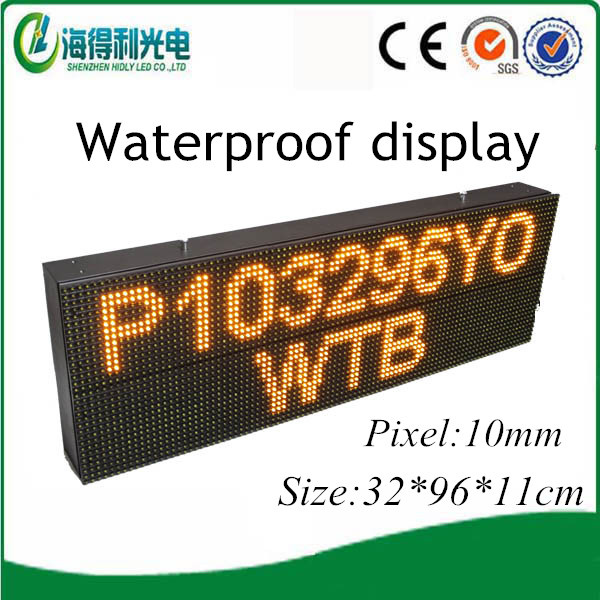

High Visibility P10 Single Color Outdoor LED Programmable Display

Prod Model:	P103296YOWTB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size:	320*160mm
Usage:	Outdoor LED Display Board
Display Size:	32*96cm
Power Supply:	12V 40A with CE Certificate
Warrant Period:	1 Year
Adapter Input Frequency:	50/60Hz
Adapter Input Voltage:	100V-240VAC
Cabinet Material:	Aluminum Alloy
Communication Port:	USB, RS232, Internet Communication Port
Life Span:	More Than 100, 000hours
Tube Chip Color:	Single Color
IP Rating:	IP65
Pixel Pitch:	10mm
Display Function:	Video Display
Average Power Consumption:	350W / m²
Pixel Density:	10000 dot / m²
Scanning Mode:	1/8 Scan
Display Type:	LED Video Display
Application:	Advertising
Certification:	CCC
Pixel Configuration:	1y

Product Description

High visibility P10 Single Color Outdoor LED Programmable Display Features:
1.P10 Outdoor LED Programmable Display ,which is made by first-class LED Lamp, can display text, graph, animation,video, real-time with many actions.
2. High brightness,Good flatness,High contrast
3. Easy Installation & Using. it can meet the request of the customers according the application environment free adjust.
4.With a wide range of viewing angles, the horizontal and vertical all come to more than110 degrees.
5.  Long-term Brightness capacity throughout product lifetime
6 Can extend temperature and hygrometer display (need extra charge).
7.High energy saving display can save 50% more than traditional display.

 P10 single color Outdoor LED Programmable Display basic information:
1.Pixel pitch: 10mm
2.Module size: 320*160mm
3.Composing Parts : LED display, software, data line and adapter
4.LED Arrangement: 1W
5.Usage: Outdoor
6.View Angle (H/V):110/50Deg
7.Module life: 10,0000 hours
8.Control way:  Remote control and computer
9.Working Environment : Temp:-20°C~60°C,Humidity:10%~90%
10..Brightness: >=3500cd/m²
11.Drive way: 1/4 constant current driving
12.Voltage : AC220V±10%50Hz  or AC110±10%60H
13.Warranty: 1 year
14.Certification:CE,  UL, CCC,
15..LED type: DIP
16.Structure of Outdoor LED Programmable Display   :
Work flow:led module+power source+control card+cabinet=outdoor led programmable display

Here are our modules common size:

Indoor full color serial
P5	1R1G1B	32*32	160×160
P6	1R1G1B	32*16	192×96
P7.62	1R1G1B	32*16	244×122
P10	1R1G1B	32*16	320×160
P6	1R1G1B	32*32	192×192
P7.62	1R1G1B	32*32	244×244
Semi-outdoor serial
P10	1R	32*16	320×160
P10	1W	32*16	320×160
P10	1B	32*16	320×160
P10	1Y	32*16	320×160
P12.5	1R	32*16	400×200
P10	1R1G	32*16	320×160
P12	2R1G	16*16	192×192
P16	2R	16*8	256×128
P16	2R1G	16*8	256×128
P20	2R	16*8	320×160
P20	2R1G	16*8	320×160
P25	2R	16*8	400×200
P25	2R1G	16*8	400×200
Outdoor full color serial
P10	1R1G1B	16*16	160×160
P12	1R1G1B	16*16	192×192
P12.5	1R1G1B	16*16	200×200
P16	2R1G1B	16*16	256×256
P16	1R1G1B	16*8	256×128
P16	2R1G1B	16*8	256×128
P20	2R1G1B	16*8	320×160

Note:
P5 means light distance
1R1G1B means full color 1 red 1 green 1blue
32*32 means pixel pitch
160*160 means single moudle size
We also accept all kinds of custom-made.



P10  Outdoor Yellow module
Item	Parameter	Item	Parameter
Pixel pitch	10mm	Module life	10,0000 hours
Module size	320mm*160mm	Control way	Asynchronism or Synchronis
Panel pixels	16*32Pixels	Max consumption	400W/m²
LED Arrangement	1y	Power	250W/m²
Pixel density	10000 dots/m²	Brightness	≥7000cd/m²
View Angle(H/V)	110/50Deg	Drive way	1/4 scanning
Voltage	AC220V±10%50Hz or AC110±10%60Hz
Working Environment	Temp:-20°C~60°C,Humidity:10%~90%

Packaging
1) Neutral packing.
2) Anti-Shaking Wooden Package
3) Carton contents between EPE to adopt environment-friendly packing
4) Standard Packing & Wooden Case
Shipment : by DHL.FedEx,UPS.TNT.Air or sea.
We can certainly ensure our  P10 single color Outdoor LED Programmable Display can be delivered fast and safety.

Our Services
1.We provide the best service to our every clients. before the order,send all the information to our clients. to help him make the decision. include the size. color. pictures,pack way and shipping way.
2.During the order, we need update the orders and feedback to him. keep him update with his order. such as how is his order,when will be finished,and also take the aging test pictures for his reference. at the same time. provide the packing pictures .after the goods delivery out. provide the tracking number. so that the clients can track his goods at any time.
3.The after-sale service: provide the one year warranty.during this year.the clients can obtain maintain service in free. and also will provide some accessories to the customers.
4.Some products we can provide the certifications. such as CE certification. UL

Our main products include:
1) LED signs
2) LED display
3)LED mini display
4) LED outdoor sign
5) LED gas price sign, led number display, led gas display screen ,led electronic digital display,led gas price, screen,led digital display,wirless led display board, flexible numer display,led digit screen display ,led number board, led screen price
6) LED cross display and so on.

FAQ
1. Are you manufacturer Outdoor LED Programmable Display?If yes, in which city?
  Yes, we're factory with 2600 square meters. And we're in DONGGUAN city, GUANGDONGProvince.
2. Can I visit your factory ?
We warmly welcome customers visit us. Before you come here, please kindly tell me your schedule, we can arrange for you. The nearest airport is SHENZHEN  GUANGZHOU HONGKONG  airport.
3. Can you provide me your Outdoor LED Programmable Display catalogue?
We specialize in producing and developing all kinds of led displays.As a reliable  LED display manufacturer and exporter in China, we supply Indoor led displays, Outdoor led displays, semi-outdoor led displays.Please kindly tell me which kind of the item you prefer to and provide me more information. It will help us to give you a good price of Outdoor LED Programmable Display.
If you like our High visibility P10 Single Color Outdoor LED Programmable Display .
You are welcome to contact with us at any time.
Tel:86 18028962816
