| Prod Model: |
Flexi |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Vteam |
| Place Of Origin: |
Guangdong, China |
| Usage: |
Outdoor |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Scanning Mode: |
1/8 Scan |
| Certification: |
RoHS |
| Pixel Pitch: |
35mm/55mm/80mm/110mm/160mm |
| Pixel Density: |
816/330/156dots/Sqm |
| Average Power Consumption: |
180/75/35W/Sqm |
Product Description
Overview:

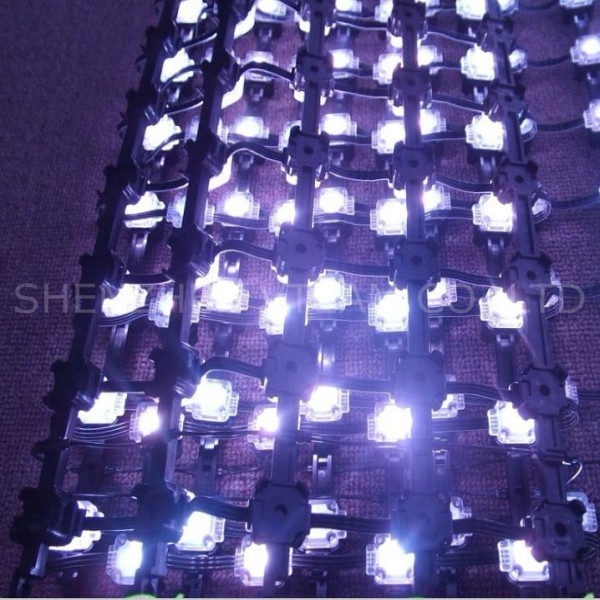

FLXi is a high transparent, soft full color LED display system. Its features are flexible installation, lightweight, highly transparent, which are adapted to various kinds of installation, such as bend, fold, winding, swing, etc...It is high artistry and creativity that can be free to assemble into various shapes. It is the best choice for the innovative design company.
Main Features:
1. Frosted white plane mask and black bottom, cool display effect, best competitive price.
2. Rich installation accessories, flexible installation, adapting to different scenarios.
3. A creative way to realize the ultra-thin double display, and the thickness of whole screens not more than28 mm.
4. The diamond display without additional parts creates the dream like effect for the world.
5. High permeability, go through light, air and smoke easily.
6. Realizing various irregular shapeswithout considering the restrictions of scenario.
7. It's best choice for the creative design company for its easier design andvarious applications.
Applications:
1. LED video technology integrate with stage design;
2. Ceiling for clubs, hotels, and super malls;
3. Concert's background stage lighting;
4. Architectures decoration;
5. Both for indoor and outdoor.
|
Model |
Flxi- 35 |
Flxi- 35H |
Flxi- 55 |
Flxi- 55H |
|
Pixel pitch |
35mm |
35mm |
55mm |
55mm |
|
Pixel density |
816 / sq meter |
816X 2 / sq meter |
330/ sq meter |
330 X 2 / sq meter |
|
Brightness |
2000 nits |
2000 nits |
900 nits |
900 nits |
|
Pixel surface |
SINGLE |
DUAL |
SINGLE |
DUAL |
|
Max.Power Consumption |
≤ 370 W |
≤ 740 W |
≤ 150 W |
≤ 300 W |
|
Ave.Power Consumption |
≤ 185W |
≤ 370 W |
≤ 75 W |
≤ 150W |
|
Model |
Flxi-80 |
Flxi-80H |
|
|
|
Pixel pitch |
80mm |
80mm |
|
|
|
Pixel density |
156 / sq meter |
156 X 2 / sq meter |
|
|
|
Brightness |
420 nits |
420 nits |
|
|
|
Pixel surface |
SINGLE |
DUAL |
|
|
|
Max.Power Consumption |
≤ 70 W |
≤ 140 W |
|
|
|
Ave.Power Consumption |
≤ 35 W |
≤ 70 W |
|
|
|
General parameters |
|
Pixel composition |
RGB 3in1 SMD3535 |
|
Viewing angles |
H140° V140° |
|
Refresh rate |
≥1000 Hz |
|
Gray Scale |
12 bits |
|
Color space |
68 Billion |
|
Control system |
PC based, dynamic capture & mapping. |
|
Operating Life |
> 50,000 hours |
|
Power supply |
AC90 ~ 260V, 50 ~ 60Hz , Meanwell |
|
Protection |
IP43 (for led screens), IP54(controllers and power box) |
|
Work environment |
temperature -30 ~ 50 °C , humidity 10-90%RH |
|
Weight |
5KG / pixel roll, 8KG / power box |
|
Flight case |
length 1.046m, height 0.736m, width 0.735m
|
