| Prod Model: |
Cn |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Vteam |
| Place Of Origin: |
Guangdong, China |
| Model Number: |
Cn-10 |
| Usage: |
Indoor and Outdoor |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
1/8 Scan |
| Application: |
Advertising |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Pitch: |
10mm |
| IP Rating: |
IP43 |
| Certification: |
CE |
| System Operating Platform: |
WIN XP |
| Pixel Density: |
9216dots/Sqm |
Product Description
Cn10/12 Overview:

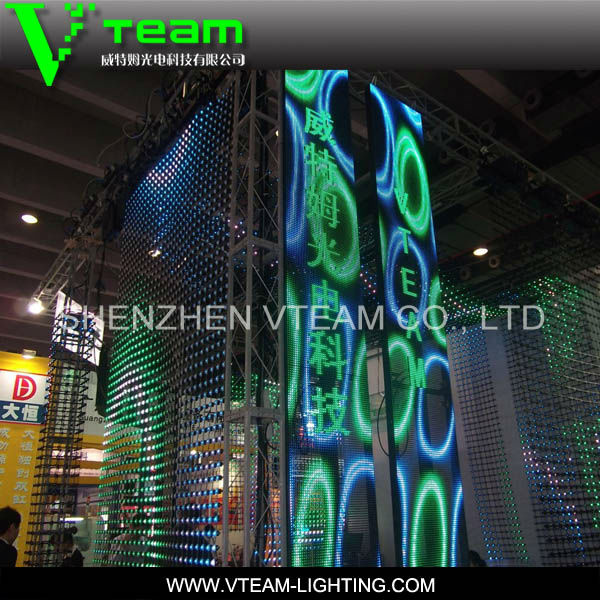

Cn10/12 is a light, thin and transparent products that very suitable for lighting rental and large square application.
Cn10/12 with the performance of light, thin and transparent are very suitable for application on entertainment areas, such as TV stage and clubs. It could be change colors and produce images. The display image are pretty clear, true and magic. Cn10/12 is the best choice for creative designing company to produce large square image.
Product Features:
1. Light-weight. Saving shipping & labor cost.
2. Nice appearance, good solutions for the overall aesthetic feeling.
3. Jointed correctly, easy to install and dismount. No tool installation.
4. High transparency. Light, air and frost could easily cross through it.
5. Humanized operating interface with breakdown indicator lights.
6. High debugging brightness as 500-1500nit and no damage to gray scale, achieving the debugging technology with wonderful video show.
Specifications:
1. Light-weight, saving shipping
2. No tool installation
3. High transparency
4. High debugging brightness
5. Nice appearance.
|
Item Name |
Cn10 |
Cn10A |
Cn12 |
Cn12A |
|
Pixel Pitch |
10.4166mm |
10.4166mm |
12.5mm |
12.5mm |
|
LED Type |
SMD3528 |
SMD3535 |
SMD3528 |
SMD3535 |
|
Pixel Matrix |
96x48dot |
96x48dot |
80x40dot |
80x40dot |
|
Pixel Density |
9216dots/ m2 |
9216dots/ m2 |
6400dots/ m2 |
6400dots/ m2 |
|
Brightness |
900-1500 Nit |
4500 Nit |
900 -1500 Nit |
4500 Nit |
|
Best Viewing Distance |
≥10m |
≥10m |
≥12m |
≥12m |
|
Weight |
8kg |
10kg |
7.5 kg |
9.5 kg |
|
Max. Power Consumption |
200W/panel |
300W/ panel |
150W/ panel |
300W/ panel |
|
Ave. Power Consumption |
80W/ panel |
100W/ panel |
60W/ panel |
100W/ panel |
|
Protection Level |
IP43 |
IP65 |
IP43 |
IP65 |
|
Application |
INDOOR |
OUTDOOR |
INDOOR |
OUTDOOR |
|
Unit Size |
500x1000x60mm |
|
Pixel Configuration |
RGB 3in1 |
|
Viewing angle |
140°/140° |
|
Gray Scale |
≥14bit |
|
Refresh Rate |
≥1920Hz |
|
Power Input |
AC220V 50/60HZ |
|
Working Environment |
Temperature -10~+50degree,Humidity 10~90% RH |
|
Tenure Life |
50,000hours |
|
Certificate |
CE |
