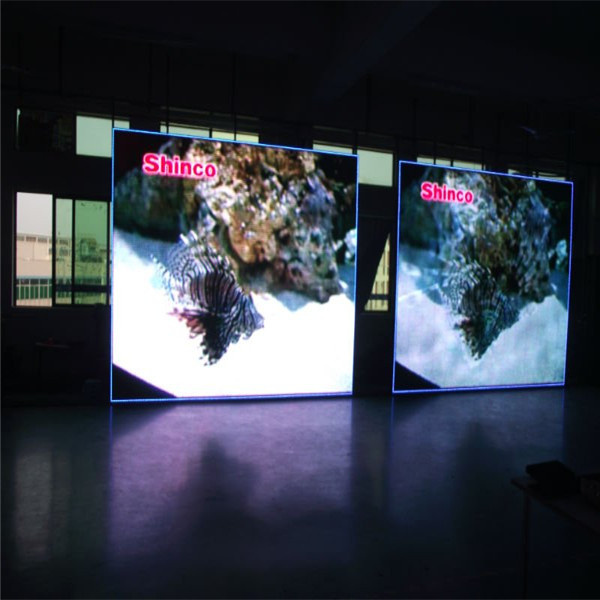

High Resolution P8 Full Color LED Screen Video LED Display

Prod Model:	fox-p8
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Physical Pixel Pitch:	8mm
Pixel Configuration:	1r1g1b
Module Resolution:	32*16 Pixels
Module Size:	256*128 Mm
Physical Resolution:	128*98 Pixels
Electricity Parameter:	3000 CD/M 2
Best View Distance:	13m
Storage Temperature:	-35° C ~ +85° C
Protection Grades:	65
Screen Lifetime:	100, 000 Hours
Tube Chip Color:	Full Color
Display Function:	Video Display
Pixel Configuration:	1R,1G,1B
Scanning Mode:	1/4 Scan
System Operating Platform:	WIN XP
Display Type:	LED Video Display
Application:	Shopping Guide
Certification:	SGS
Pixel Pitch:	8mm
Pixel Density:	15625DOT/M²
IP Rating:	IP 65

Product Description

High Resolution DIP P8 Full Color LED Screen Video LED Display

1. Long lifespan
2. Large view angle
3. Hi-brightness
4. Good after-sales

Application: Entertainment center, stage background,
Rain station, exitbition, shopping center, stadium etc.

Item	Parameter
Pixel	Physical pixel pitch: 8 mm
	Pixel configuration: 1R1G1B		Chip	Wave	Brightness	Packing
		R	Opto	620-625nm	250-350mcd	SMD3528
		G	Silan	525-530nm	600-700mcd	SMD3528
		B	Silan	465-470nm	100-150mcd	SMD3528
Module	Module resolution: 32*16 pixels
	Module size:   256*128 mm
Cabinet	Physical resolution: 128*98 pixels
	Cabinet size:   1024*768*(100-120) mm
	Physical density: 12288 pixels/cabinet
	Module quantity:   pcs = 4 (w) x 6 (h)
	Material: Steel
	Weight: 32 Kg
Electricity parameter	Brightness: ≥   3000 cd/m 2
	Brightness adjusted: 100 grade by software, or by Auto-optic induced
	Color processing: 16bit
	Display color: 280 trillion
	Color temperature(k): 5000_ 9500 (choice by user)
	Physical density:   15625 pixels/m 2
	Whole display flatness: ≤ 1mm juncture
	Best view distance: ≥   13m
	Best view angle: Horizontal ± 140° , Vertical ± 140°
	Storage temperature: -35° C ~ +85° C Working temperature: -20° C ~ +50° C
	Driving method: Constant driving current  Scan: 1/8
	Refresh frequency: ≥ 2000Hz
	Frame rate: ≥ 60Hz
	Humidity(RH): ≤ 90~95%
	Protection grades                  : Protection grades
	Working Voltage: DC 5V
	Power supply: AC 110 / 220V, 50/60Hz
	Average power consumption: 400 w/m 2
	Max power consumption: 800 w/m 2
	MTBF: 10, 000 hours
	Screen lifetime: 100, 000 hours
Control system	Control system: Linsn
	Signal interface: DVI
	Communication distance: Internet cable: ≤ 100m  Fiber cable: 1000m
	Signal transfer mode: Pixels to pixels display synchronized

 Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributoership are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, Mainland China
5. Warranty time: 7years

FOXGOLDEN GROUP LTD (www.foxgolden.com)is a professional high quality LED display manufacturer.
Since 2004, we have been dedicating to the aim that producing high quality products,
and now FOXGOLDEN has been well integrated in terms of R&D,produce, project, capital and marketing.

As one of the professional manufacturers of LED industry, FOXGOLDEN Group Limited has a high quality,professional and
strong production team, marketoriented, constantly innovate based company
not only manufacturing technology in traditional LED display screen,

constantly improve product cost benefit and market competition, but in the special use of the display technology has a breakthrough.
The absolute performance and competitive price to the perfect combination, the LED display screen to every corner of the world,
the market at home and abroad to win wide reputation.

At present, Foxgolden Group Limited has formed a series of LED display products: outdoor LED display,
indoor LED display, portable LED screen, foldable LED screen, soft LED screen rental LED display,
stadium LED display, small pitch pixel LED display etc..


FAQ:
Q1: When is the delivery time?
A1: we will accomplish manufacturing within 10 days after receiving the deposit.

Q2: What is the payment method?
A2: We support a variety of payment methods, the most common is the TT.

Q3: What's the pixel pitch for Outdoor LED Display Screen?
A3: Outdoor (P6mm / P8mm/P10mm)

Q4: Where is it used for?
A4: Outdoor & rental use. Widely used for backdrop of staging event, rental business, live show, concert, etc.

Q5: Can it play HD video?
A5: Yes, it can realize HD video function with Linsn controlling system.

Q6: What's the controlling system?
A6: Our standard controlling system for this model is Linsn, Novastar. Also support other controlling system,
like Xixun,TF, Colorlight, etc.

Q7: How about the size of project?
A7: Please offer the size with "width by height" of project. We will offer the suitable solution for your project size.
 I will appreciate it if any drawing files about installation offered.

Q8: How about your service?
A8:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual,
easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
. Delivery time: 3-12working days
