| Prod Model: |
indoor p6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size Of Modual: |
384mmx 192mm |
| Resolution Of Modual: |
64X32 |
| Density Of Pixel: |
27777dots/M2 |
| Colors: |
16777216 |
| Best Viewing Distance: |
≥ 6m |
| Brightness: |
≥ 2200CD /M 2 |
| Frame Frequency: |
60Hz |
| Working Temperature: |
--20o C-+80o C |
| Viewing Angle: |
120degree |
| Life Span: |
100,000hours |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
6mm |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Density: |
27,777 dots / m² |
| Scanning Mode: |
1/4 Scan |
| System Operating Platform: |
WIN XP |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| Certification: |
UL |
| IP Rating: |
IP20-IP65 |
Product Description

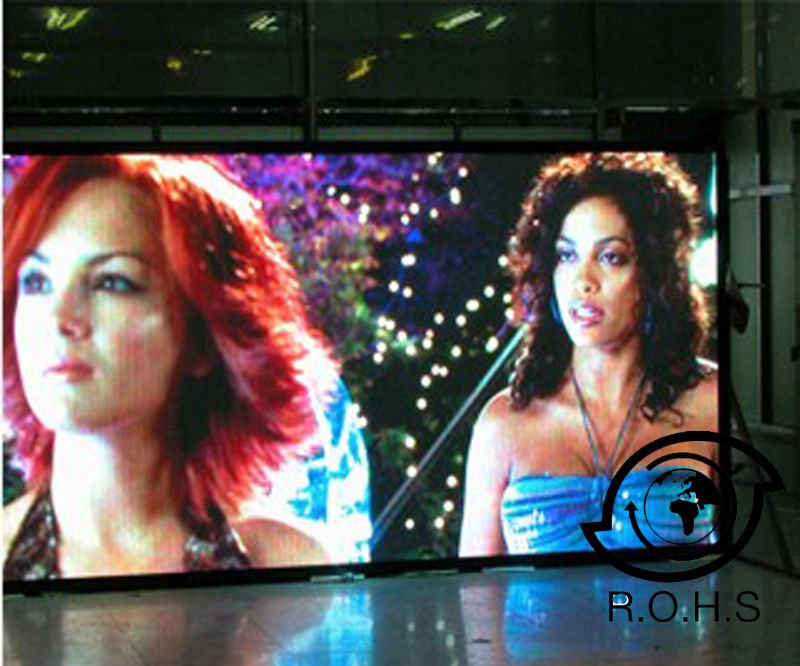

Indoor LED display board
1. High definition and vivid image
2. Easy assembly and diassembly
3. Relative low price
4. Professtional design
5. Big viewing angle
6. High qualiti and good service
7. Multi-language
8. Multi color and support
9. On-time delivery
10. Long life span
| The technology parameter of P6 indoor |
| Number | Item | P6 |
| 1 | Pixel pitch | 6mm |
| 2 | Size of modual | 96mmX 192mm |
| 3 | Resolution of modual | 16X32 |
| 4 | Density of pixel | 27777dots/m2 |
| 5 | Pixel configuration | 1R1G1B |
| 6 | Red wavelength | 625± 2nm |
| 7 | Green wavelength | 525± 2nm |
| 8 | Blue wavelength | 470± 2nm |
| 9 | Colors | 16777216 |
| 10 | Best viewing distance | ≥ 6m |
| 11 | Horizontal viewing angle | 140° |
| 12 | Maximum power consumption | ≤ 600-1000w/m 2 |
| 13 | Brightness | ≥ 2200cd /m 2 |
| 14 | Gray scale | 16bits per color |
| 15 | Color temperature | 6500k |
| 16 | Control method | Synchronization & Asynchronization |
| 17 | Driving method | 1/8scanning |
| 18 | Frame frequency | 60Hz |
| 19 | Refresh frequency | ≥ 350Hz |
| 20 | Working voltage | AC220V/110V± 10% |
| 21 | IP grade | IP67(adjustable) |
| 22 | Working temperature | --20º C-+80º C |
| 23 | MTBF | > 10000 hours |
| 24 | Life span | > 100, 000 hours |
| 25 | Defects rate. | ≤ 0.00001(Led display line standard< 0.0001) |
| 26 | Computer operation system | Win XP/Vista/ Win 2000/WIN7ect. |
| 27 | Video signal | RF, S-Video, RGB, RGBHV, YUV, YC. ect |
