| Prod Model: |
P5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cabinet Size: |
Can Be Customized |
| Driving IC: |
Mbi 5020, Mbi5024, Mbi5026, Mbi5041, Mbi5042 etc. |
| Reflesh Rate: |
>600 Hz |
| Control System: |
Asynchronous or Synchronous |
| Warranty: |
2 Years |
| Technical Support: |
Life Long |
| Training: |
in House Factory Training and on Site Training |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
1/16 Scan |
| Application: |
Shopping Guide |
| Pixel Configuration: |
1R,1G,1B |
| Certification: |
CCC |
| System Operating Platform: |
WIN XP |
| Pixel Pitch: |
P5 |
| IP Rating: |
IP31 |
| Pixel Density: |
40000 |
Product Description
Indoor and outdoor Full Color LED Display Screen, usually used for Plaza, shopping mall, street side, high way, school, stadium, shows, entertainments etc with different commercial advertising purpose to attract more eye catching.
1. Focus on and only focus on LED display and modules more than 15 years
2. Customized LED Display and modules in irregular size and specifications, such as bus sign
3.1R1G1B as one pixel with top LED such as Silan, Epistar etc
4. Bigger modules, more flatness of screen surface
5. Best Color Uniformity and white balance; Color vividly, strong visual impact
6. Good heat dissipation, anti-shock with multi-layers PCB design
7. Constant current and static driver manner with longer life, low light decay
8. High brightness: More than 2000 nits per square meter for indoor display, and more than 8000 nits per square meter for outdoor display
9. Total black mask with high contrast ratio
10. On line free training for how to assemble LED display modules to cabinets, cabinets to screens, How to operate software, how to maintain etc
Indoor full color led display
Product Description

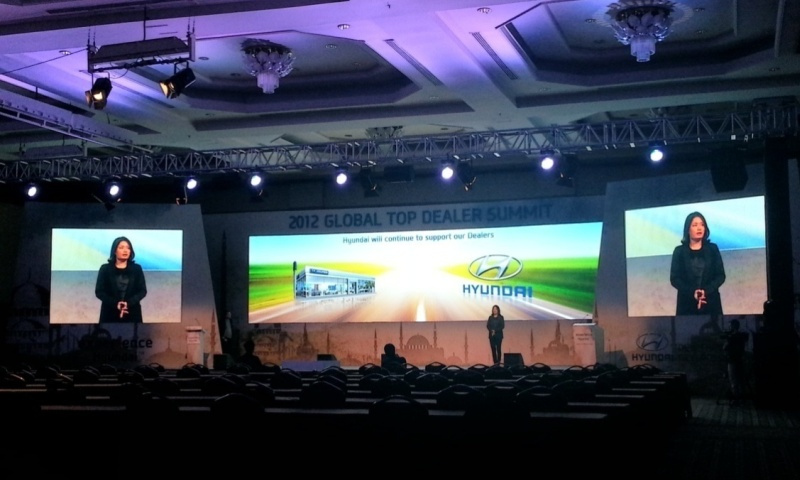

Backdrop stage LED screen
1. CE, FCC, RoHS, C-tick, ISO9001: 2009;
2. Brightness: >1700CD/sqm;
3. High Refresh rate: 3000Hz-4800Hz;
4. Viewing angle: 120degree in vertical and 120degree in horizontal;
5.2 years warranty.
6. Long time techical support
| P5 3-in-1 SMD indoor full-color LED display |
| Item | Details | Parameters |
| | Physical pixel pitch | 5mm |
| Pixel | Pixel Configuration | RGB 3-in-1 |
| Module | Module resolution | 16×32 pixels |
| Module Size | 80×160 mm |
| | Physical resolution | 128×128 pixels |
| | Cabinet Size | 640×640 mm |
| | Physical density | 16384 pixels/cabinet |
| | Module quantity | 32pcs=8(H)×4(W) |
| Cabinet | Material | Steel |
| | Weight | 20kg. Approx |
| | Power supply (50V40A) Quantity | 3pcs |
| | Average power consumption | 250W |
| | Max power consumption | 600W |
| | Brightness | 4000 nits |
| | Brightness adjusted | 100 grade by software, or by Auto-optic induced |
| | Color processing | 8-16 bit |
| | Display color | 16 million - 281 trillion |
| | Color temperature (K) | 6000 - 8000K |
| | Physical density (pixel/M2) | 40000 |
| | Whole display flatness | less than 1.2mm juncture |
| | Best view distance | 3 - 25m |
| | View angle | Horizontal>160 degree, Vertical>160 degree |
| | Storage temperature | 40 degree to 60 degree |
| Electricity | Working temperature | 20 degree to 50 degree |
| parameter | Driving Method | Constant driving current, Scan: 1/8 |
| | Refresh frequency | Up to 3000 Hz |
| | Frame rate | 75 Hz |
| | Relative Humidity | 10% - 90% |
| | Protection grade | IP31 |
| | Working voltage | DC 5V |
| | Power supply | AC 110V±10%/ 220V±10% |
| | Average power consumption | 500w/per square meter |
| | Max power consumption | 1500w/per square meter |
| | MTBF | 10000 hours |
| | Screen lifetime | >50000 hours |
| | Control System | Linsn |
| Control | Signal Interface | DVI |
| System | Communication distance | CAT5 cable<100m, optical/fiber>500m |
| | Signal transfer mode | dot to dot synchronized with computer monitor |
