High Resolution LED Display/Video Display

High Resolution LED Display/Video Display
Price: US $ 1150/Square Meter
Trade Terms: FOB,CFR,CIF
Min Order: 1/Square Meter
Pay Type: L/C,T/T,Western Union
Prod Model: P5 P6
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cabinet Size: Can Be Customized
Driving IC: Mbi 5020, Mbi5024, Mbi5026, Mbi5041, Mbi5042 etc.
Reflesh Rate: >600 Hz
Control System: Asynchronous or Synchronous
Warranty: 2 Years
Technical Support: Life Long
Training: in House Factory Training and on Site Training
Display Type: LED Video Display
Tube Chip Color: Full Color
Display Function: Video Display
Scanning Mode: 1/8 Scan
Application: Shopping Guide
Pixel Configuration: 1R,1G,1B
Certification: CCC
Pixel Density: 40,000 dots / m²
System Operating Platform: WIN XP
Pixel Pitch: 5mm 6mm
IP Rating: IP31

Product Description

Product Description
P5/P6 Slim Rental LED Screen:
-Super light and slim: Ultrathin(only 12KG per cabinet)
-Quick and easy assembling and dismantling:
-Cabinet back view energy-saving and environment-protection:
-High Refresh Rate, High Gray Scale, High Brightness Effective
-Energy saving IC and special design of circuit diagram, power consumption to be decreased by 35-50%
-Flat screen, no gap. Cabinets were made by high-precision molding plastic injection, no slit on the screen.
-Professional radiant calibration system to make sure the color and brightness uniformity.
-Perfect heat ventilation, good water proof and stable performance

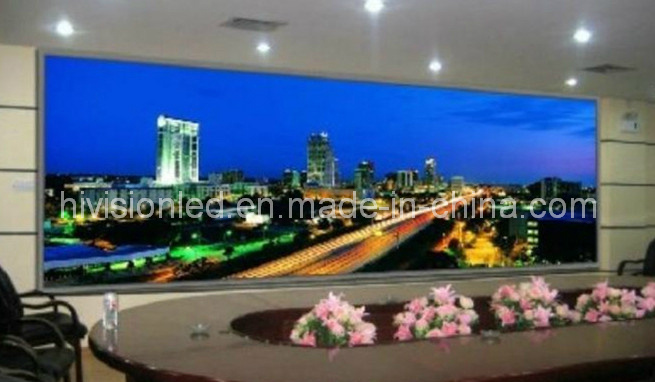

Indoor full color LED display

Product Description
Backdrop stage LED screen
1. CE, FCC, RoHS, C-tick, ISO9001: 2009;
2. Brightness: >1700CD/sqm;
3. High Refresh rate: 3000Hz-4800Hz;
4. Viewing angle: 120degree in vertical and 120degree in horizontal;
5. Full 2 years warranty.
6. Long time techical support
P5/P6 3-in-1 SMD indoor full-color LED display
Item Details Parameters

Pixel
Physical pixel pitch 5mm 6mm
Pixel Configuration RGB 3-in-1
Module Module resolution 16×32 pixels 32×32 pixels
Module Size 80×160 mm 192×192 mm



Cabinet



Physical resolution 128×128 pixels 96×128 pixels
Cabinet Size 640×640 mm 576×768 mm
Physical density 16384 pixels/cabinet 12288pixels/cabinet
Module quantity 32pcs=8(H)×4(W) 12pcs=3(H)×4(W)
Material Steel
Weight 20kg. Approx 13kg. Approx
Power supply (50V40A) Quantity 3pcs 2pcs
Average power consumption 250W 200W
Max power consumption 600W 400w










Electricity
parameter









Brightness 4000 nits 2500nits
Brightness adjusted 100 grade by software, or by Auto-optic induced 100 grade by software, or by Auto-optic induced
Color processing                                                                              8-16 bit
Display color                                                                  16 million - 281 trillion
Color temperature (K)                                                                          6000 - 8000K
Physical density (pixel/M2) 40000 27777
Whole display flatness L ess    than 1.2mm juncture L ess    than 1.2mm juncture
Best view distance 3 - 25m 4  - 2 8 m
View angle                                            Horizontal>160 degree, Vertical>160 degree
Storage temperature                                                                 40 degree to 60 degree
Working temperature                                                                 20 degree to 50 degree
Driving Method                                                        Constant driving current, Scan: 1/8
Refresh frequency                                                                        Up to 3000 Hz
Frame rate                                                                                75 Hz
Relative Humidity                                                                           10% - 90%
Protection grade                                                                                 IP31
Working voltage                                                                              DC 5V
Power supply                                                    AC 110V±10%    /    220V±10%
Average power consumption                                                              500w/per square meter
Max power consumption                                                            1500w/per square meter
MTBF                                                                      10000 hours
Screen lifetime                                                                   >50000 hours

Control
System
Control System                                                                            Linsn
Signal Interface                                                                            DVI
Communication distance CAT5 cable<100m, optical/fiber>500m CAT5 cable<100m, optical/fiber>500m
Signal transfer mode dot to dot synchronized with computer monitor dot to dot synchronized with computer monitor

About Hivision

Guilin Hivision Technology Co., Ltd. Was founded in 1994, starting as a spin-off of a Bank Database System with LED display project at Computer Science department of Guilin Electronic Engineering University. Through the years, Hivision has grown from a small startup to a full-fledge LED sign and light manufacturer.

Hivision is an ISO9001 certified LED manufacturer with extensive in-house R&D capabilities.

Why choose Hivisi?

In-house LED package ability

We complete the entire LED manufacturing process in-house. Our fully automated LED production process includes from die and wire bonding to package, populating, wave soldering and so on.

Three-step QC process with 1st class inspection equipments

Our strict QC process involves 3-step:

1. Incoming Quality Assurance -BOM

2. Inspection Process Quality Control -Producing

3. Final Quality Assurance - Finished product

Throughout these process, we conduct brightness, white balance, vibration and turning-in tests starting with modules, then panels and completed displays. Once finished, we perform high-pressure water resistance assessments to conform to IP65 standards.

Lastly, we assemble the LED cabinets for video aging and on-site simulations, as well as aesthetic inspections on cabinets and internal components. And prior to shipment, all spare parts are evaluated one last time.

Backed by heavy investment and a strong R&D team composed of 20 professionals with average ten years' experience covering software, firmware, hardware, and mechanical engineering, we are able to provide to you customized need.

Aftersales service

When you receive your shipment, you will find an array of materials to assist you with installation and operation. Documentation and user manuals, as well as software will provide you with all the information that you need to get your LED displays up and running.

Technical support

Free training for operation, maintenance and trouble shooting before the shipment in factory

Life-long free Technical support through Skype and Teamviewer (remote operating your computer).

We strive to understand, inspire and enable our customers and partners to turn their large image dreams into results with known outcomes. We are keeping the aim to add value, through our industry leading competence, with a complete range of high impact screens for permanent installations as well as the rental and staging markets. If you are looking for a reliable partner to realize your project, Hivisi is the right man for the job.
