| Prod Model: |
p4/SMD 3 in 1 |
| Markets: |
South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Module Size: |
256X128mm |
| Brightness: |
>2000CD/M2 |
| Cabinet Size: |
512X512mm |
| Working Voltage: |
220VAC |
| Optimal Viewing Distance: |
4-20m |
| Optimal Viewing Angle: |
160°(W) 120°(H) |
| Control Mode: |
Synchronization with PC/Asynchronization |
| Cabinet Resolution: |
128X128dots |
| Lifespan: |
100, 000hpurs |
| Warranty: |
2 Years |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
4mm |
| Scanning Mode: |
1/16 Scan |
| System Operating Platform: |
WIN98 |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
FCC, EMC, ISO9001 |
| Pixel Configuration: |
SMD 3 in 1 |
| Pixel Density: |
62,500dots/M2 |
| IP Rating: |
IP31 |
Product Description

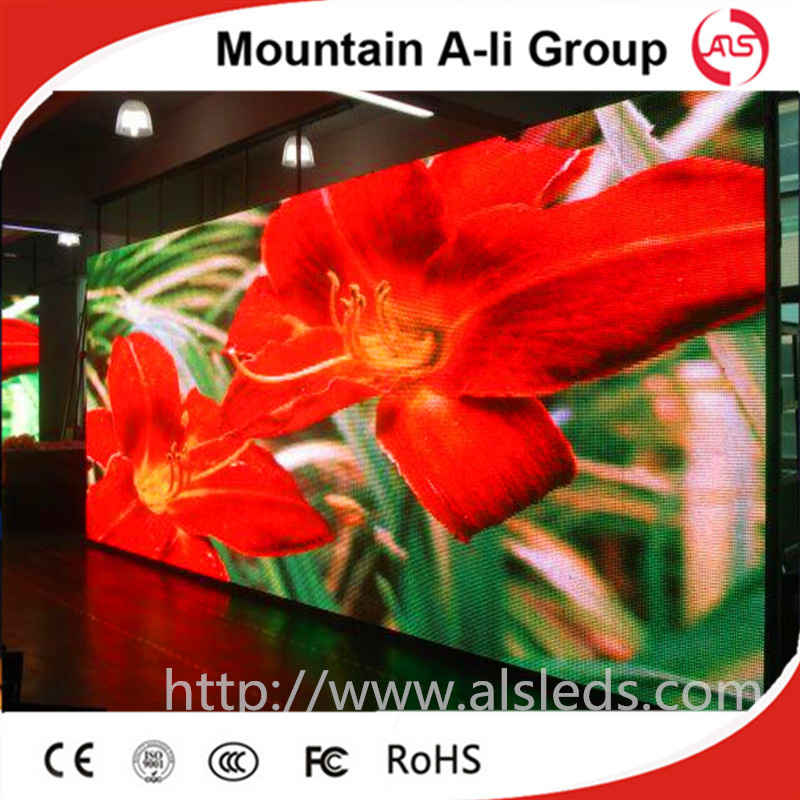

High Resolution Indoor RGB P4 Rental LED Display
1.What are the advantages of our LED display?
1). Low energy consumption,high brightness (brightness can be customized)
2). Less maintenance performance,long lifespan
3). No color difference,large viewing angle (Horizontal 160°, Vertical 120°)
4). Optimal design,high-precision seamless,accurate to 0.1mm gap
5). Ultra high refresh rate,can support video shooting,clear picture quality assurance
6). Quick and easy assembly,removing system,short loading time
7). Wide range of application
2.Why choose our LED display?
1).Experience advantage: more than 10 years manufacturing experience, powerful factory!
2).Price advantage: Factory Outlet, No.1 cost effective
3).Quality advantage: superior LED led lamp from our own factory, serious QC control system,best material(passed ISO 9001,CE,RoHS,IP65 waterproof certification...)
4).Service advantage: after service dept& Tech Dept. 1-3 years guarantee period.
Our Products list
| Item No.: | Description | Dimension | Brightness |
| | INDOOR | | |
| 1 | SMD indoor p3mm | 192mm*96mm | 2000cd/m2 |
| 2 | SMD indoor p4mm | 256mm*128mm | 2000cd/m2 |
| 3 | SMD indoor p5mm | 320mm*160mm | 2500cd/m2 |
| 4 | SMD indoor p6mm | 192mm*192mm | 3000cd/m2 |
| 5 | SMD indoor p7.62mm | 244mm*244mm | 2000cd/m2 |
| 6 | SMD indoor p10mm | 320mm*160mm | 3000cd/m2 |
| | OUTDOOR | | |
| 7 | DIP 3in1 outdoor P6 | 192*96mm | 7500cd/m2 |
| 8 | DIP 3in1 outdoor P7 | 224*112mm | 7500cd/m2 |
| 9 | DIP 3in1 outdoor P8 | 256*128mm | 8000cd/m2 |
| 10 | SMD 3in1 outdoor P6 | 192mm*192mm | 6000cd/m2 |
| 11 | SMD 3in1 outdoor P8 | 256mm*128mm | 6500cd/m2 |
| 12 | DIP 3in1 outdoor P10 round screen | 320*40mm | 8500cd/md |
| 13 | outdoor DIP p10mm | 160mm*160mm | 8500cd/m2 |
| 14 | outdoor DIP p12mm | 192mm*192mm | 7500cd/m2 |
| 15 | outdoor DIP p13.33mm | 320mm*160mm | 5500cd/m2 |
| 16 | outdoor DIP p16mm | 256mm*256mm | 7500cd/m2 |
| 17 | outdoor DIP p20mm | 320mm*320mm | 7000cd/m2
|
Technical Information
| The specifications of p4 modules |
|
| Items | Parameter |
| Product Model | P4 Indoor Full Color LED Module |
| Module size | 256mm*128mm |
| Pixel pitch | 4mm |
| Pixel density | 62500dots/m2 |
| Pixel configuration | smd 1R1G1B |
| Module resolution | 64dots(W)*32dots(H) |
| Module maximum power consumption | 18W |
| Module Weight | 0.18kg |
| Driving method | Constant Current Driving |
| Scanning method | 1/16scan |
| Interface | HUB75-A |
| Brightness | ≥2000cd/m2 |
| The specifications of cabinets |
|
| Cabinet size | 512mm*512mm |
| Module quantity | 8pcs |
| Power supply | 5V/40A*2pcs |
| Cabinet resolution | 128*128dots |
| Optimal viewing distance | 4M~20M |
| Optimal viewing angle | 160°(W) 120°(H) |
| RHWorking temperature | (Work :-20°C~+50°C) |
| System operating humility | 10%-95% |
| The specifications of power supplier |
|
| Operating Voltage | AC220V±10% |
| Average power consumption | 85W/H |
| Maximum power consumption | ≤160W/m2 |
| Electric current | ≤20mA(single LED) |
| The specifications of control card |
| Control Panels | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control model | Synchronization with PC |
| The specifications of the main technical parameters |
|
| Driving device | Constant Current Driving |
| Refresh rate | ≥400HZ |
| Grey scale | RGB Each 256, can display 16.7M colors) |
| MTBF | ≥9000hours |
| Power switch | Automatic Switch |
| Display Mode | 800*600/1024*768 |
3.Our service
1). Your inquiry related to our products or price will be replied in 24hrs
2). OEM&ODM, any your customized lightings we can help you to design and put into product
3). Distributorship are offered for your unique design and some our current models
4). Protection of your sales area, ideas of design and all your private information
5). Top quality+Reasonable price+Responsible After Service=Successful & Win
4.Trade Terms
1). Package: Anti-shaking wooden package, Air flight case or Carton package
2). Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery
3). Shipping freight are quoted under your requests
4). Shipping port: Shenzhen, Mainland China
5). Warranty time: 2 years
6). Delivery time: 3-12 working days
5.Contact us
1).Tel:86-755-29196200/29196201
2).Fax:86-29196202
3).website:http://www.alsleds.com
4).Add: No,28,Jianlong'ao,Guantian Community,Shiyan Street,Bao'an District,Shenzhen,China.
How to get a quotation and details?
Our experienced sales engineer will provide professional display solutions according to your requirement.
Send your Inquiry Details in the Below, Click "Send" Now!
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
