| Prod Model: |
P4.85-15s |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Resolution: |
3600 Dots |
| Refresh Frenquency: |
> 320 Hz |
| LED Encapsulation: |
3528 White or Black |
| Equilibrium Brightness: |
> 2000 CD/M2 White or 1500 CD/M2 Black |
| Module Port: |
Hub 75A |
| Module Consumption: |
<50 W |
| Module Weight: |
0.65kg |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Certification: |
CCC |
| Pixel Configuration: |
1R,1G,1B |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| System Operating Platform: |
WIN XP |
| Pixel Pitch: |
4.8mm |
| Pixel Density: |
43402 |
Product Description

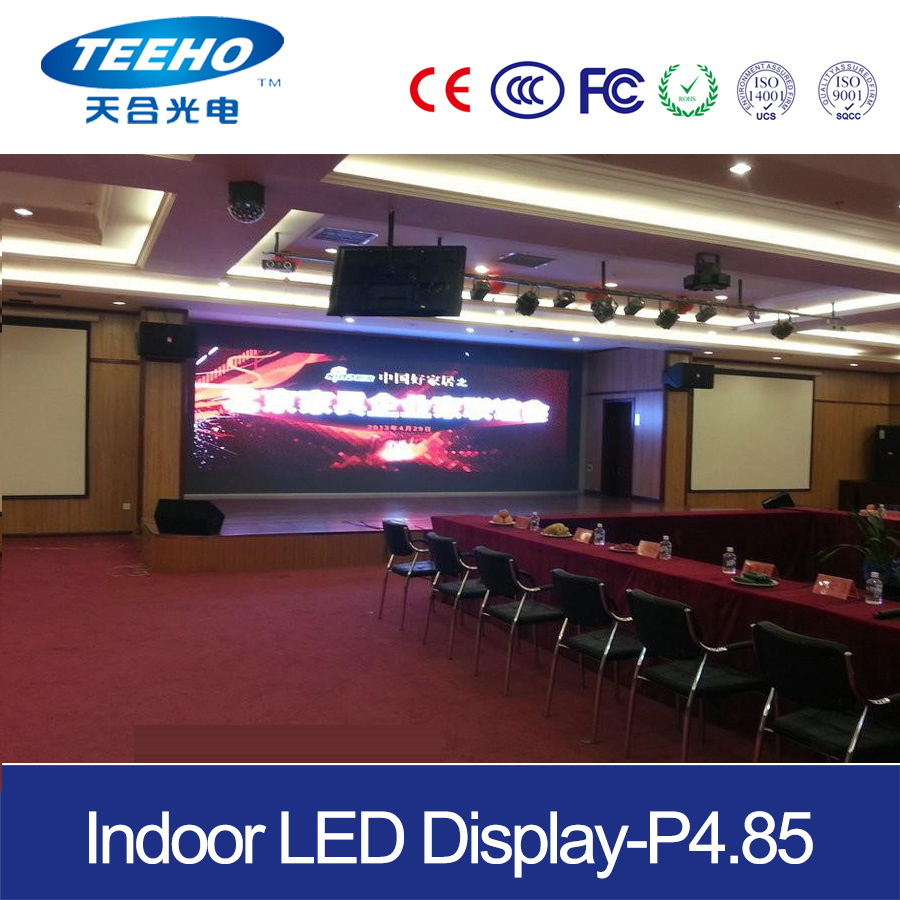

Indoor full color P4.85 LED Display
Indoor Full Color LED Display adopts the Unique SMD technology. It has the same working principles with computer monitors. It can show various colors constituted by tri-colors: red, green and blue, and can display colorful static & animated images. Each pixel contains red, green, and blue LED. Points of LED Screen are corresponding with points of computers. It supports VGA display modes, and can display television programs, VCD or DVD, live programs, with the excellent displaying effects, high reliability and system stability. It is widely used in the places of airports, railway stations, ports, hotels, shopping malls, stadiums for information displaying, advertising and TV Video displaying.
Product feature
1. The SMD 3 in 1 and Separate SMD are available, providing the tailor made solution according to clients actual requirement.
2. Wider viewing angle. Viewing angle can reach the level of 160 degree in horizontal, 80 degree in vertical. Within the scope of these arbitrary angles, the images are without any distortion.
3. Adopting 4layer PCB monolithic grand scale integration circuit design, It optimized the space layout of each electronic component and improved the stability of the screen system.
4. Using advanced high peed SMT technology. It solved the problem of heat dissipation caused by high density in design.
Adopting the special and advanced driving technology, the screen is without any distortion.
Specification
Item:P4.8 SMD Full Color Led Display
MAIN TECHNICAL PARAMETERS FOR INDOOR LED DISPLAY
| Led Module |
| Technical parameters | UNIT | parameters values |
| Pixel pitch | MM | 4.8 |
| Panel size | MM | L288XH288X13 |
| Physical density | /M2 | 43403 |
| Pixel configuration |
R/G/B |
1,1,1 |
| Driving method |
|
1Constant current 1/15scan |
| LED Encapsulation | SMD | 3528 black/white |
| Display resolution | DOTS | 60X60=3600Dots |
| Module weight | KG | 0.5 |
| Module port |
| 20pin |
| Module working voltage | VDC | 5 |
| Module consumption | W | 60 |
| Led display |
| Viewing angle | Deg. | H120 V120 |
| Option distance | M | 5-50 |
| Driving device |
| 2016/5020 |
| Every square meter module | PCS | 12 |
| Maximum power | W/ M2 | 900 |
| Frame Frequency | HZ/S | ≥60 |
| Refresh frequency | HZ/S | ≥320 |
| Equilibrium brightness | CD/ M2 | White led≥2000 black led≥1500 |
| Working environment temperature | 0C | -10~60 |
| Working environment humidity | RH | 10%~70% |
| Display working voltage | VAC | AC46~54HZ,220V±15%/110V±15% |
| Colour temperature |
| 9500K-11500K |
| Gray scale/color |
| ≥16.7M color |
| Input signal |
| RF\ S-Video\ RGB etc |
| Control system |
| PCTV nonlinearity card,DVI display card,Linsn control system |
| Mean free error time | HOURS | >5000 |
