| Prod Model: |
P2.5 |
| Brand Name: |
Abt |
| Parse Of Single Module: |
160mm*160mm |
| Brightness: |
2300CD/Sqm |
| Viewing Angle: |
140°/120° |
| Driving IC: |
Mbi5020gf |
| Tube Chip Color: |
Full Color |
| Pixel Configuration: |
1R,1G,1B |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP54 |
| Certification: |
FCC |
| System Operating Platform: |
PC+ DVI Display Card+ Sent Card+ Receive Card |
| Pixel Pitch: |
2.5mm |
| Pixel Density: |
160000DOT/Sqm |
| Scanning Mode: |
1/32 |
| Display Function: |
Video/Image/Text Display |
Product Description
Always Bright Tech limited
Company profile
Always Bright Tech limited has the standard new factory,and about 50 employees.
We have outstanding R&D department and after-sell service workers,and separately design ability.
Our product mainly included led single color display,led indoor full color display;led outdoor full
color display,led wireless car used screen etc.It can be used on the shopping more,bank,bus station,
train station,Center of downtown,airport,school,factory,bus,taxi and son on.
We adapt many methods and very good after-sell service to sell our product all over the world.
Whenever and wherever we are,we always take the principle that is:professional makes good quality ,good price product market to provide perfect product and service for our customers.
Our product Items
Our products cover:
indoor display(P1.667,P2.5,P3,P4,P5,P6)
outdoor display(P6,P6.67,P8,P10,P16,P20),
rental display(indoor:P3,P3.91,P4,p4.81,P5,p6, outdoor:P3.91,P4.81,P5,P5.95,P6,P6.25,P8,P10),
led single color display,full color display,led wireless car screen etc.
Order Procedure
Negotiation---First solution recommended---Finalize all the details----30% deposit in advance or full deposit ----Start production---Pay the balance---shipment by DHL--provide tracking number---feedback.
Product Description
1.Price Advantage: we have the best competitive price at the market, also have the same even better quality.Wide viewing angle and the horizontal angle can reach 110 . The images display effect will not Change in the range.
2.Quality advantage: From material to finished product, from design to produce, we control all steps. Good heat dissipation capability because of the unique design of vent fan.High and adjustable LED brightness can meet the demands of the changing requirement of customer in different environments.No mosaic display due to excellent flatness and nice uniformity of light-emitting.
3.Service advantage: Better service at same situation, better cooperation at same service.
4.Certificate:We ensure that our products are the CE certified, ROHS compliant, FCC ,ULidentified and passed the system of ISO 9001.

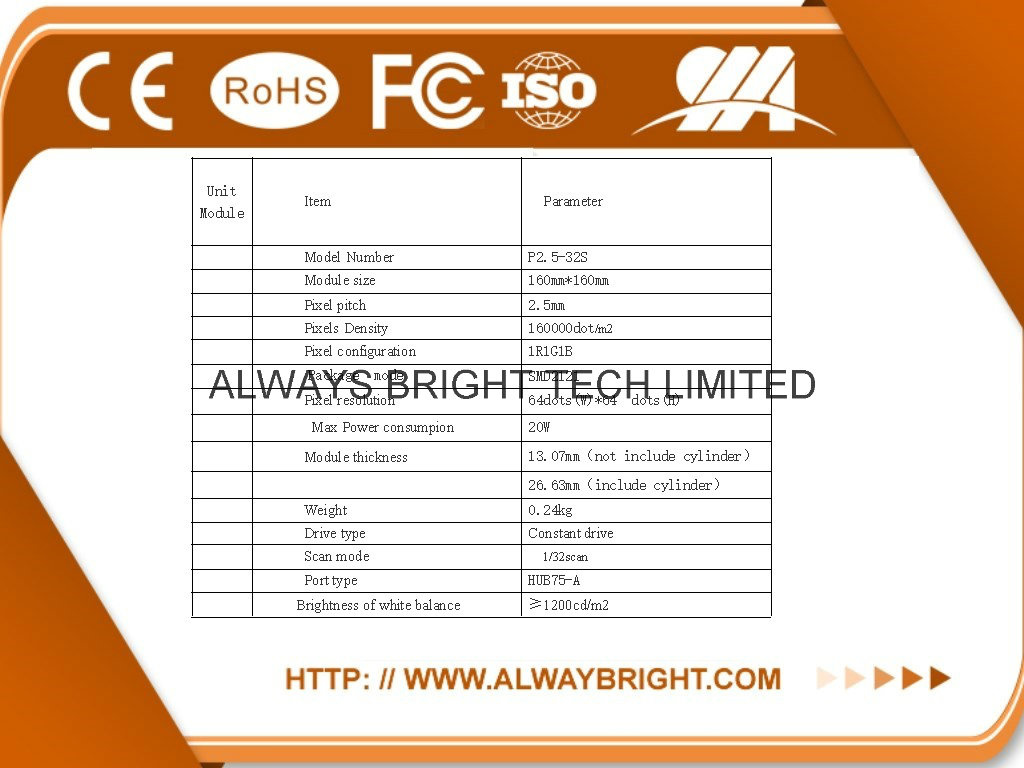

P2.5mm indoor full color SMD display
| List | Item | Description |
| 1 | Pixel Pitch | 2.5mm |
| 2 | Module Size | 160*160mm |
| 3 | Pixel Density | 160000/ s.q.m |
| 4 | Pixel composition | 1R1G1B |
| 5 | LED Type | SMD2121 |
| 6 | Module Resolution | 64*64 |
| 7 | Power Consumption of Module | 30W |
| 8 | The Optimum Viewing Distance | 2~100m |
| 9 | The Optimum Viewing Angle | 140°/120° |
| 10 | Maximum Power Consumption | 1200W/ s.q.m |
| 11 | Standard Cabinet Size | 960*960mm |
| 12 | Cabinet Resolution | 384*384 |
| 13 | Cabinet Weight | 35Kg |
| 14 | Driving IC | MBI5020GP |
| 15 | Driving Method | 1/32 Scan Constant Current Driving |
| 16 | Frame Frequency | ≥60Hz/s |
| 17 | Refresh Rate | ≥1000Hz/s |
| 18 | White Balance Luminance(cd/ s.q.m) | ≥2300cd/ s.q.m |
| 19 | Operating Environment Temperature | -20ºC-60ºC Optional |
| 20 | Operating Voltage | 220V±10% or 110V±10% |
| 21 | Grey Scale | Display Colors≥65.7trillion color(Synchronized) |
| 22 | Brightness Adjustment | 1024 grades of each color(R.G.B)can be adjusted manually and 16 levels of each color can be adjusted automatically |
| 23 | Input Signal | RF,S-Video RF, S-Video, RGB, RGBHV, YUV |
| 24 | Control System | PC+ DVI display card+ sent card+ receive card |
| 25 | Average No Failure Time | >5000 hours |
| 26 | Life-span | >100000 hours |
| 27 | Out-of Control rate | <0.0001 |
| 28 | Transmitting Distance | Internet cable:< 100m |
Trade Terms
1. Packing: Anti-shaking wooden cabinet /Air flight case/carton
2. Shipping port: Shenzhen. China
3. Shipping freights are quoted according to your requests
4. Delivery time:5-25 working days
5. 2 years warranty, lifelong maintaining.
After-sale service:
1.Our products have two years warranty service ,lifetime free maintenance and upgrade.
2.Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3.We offered training to our customer who includes operating and maintenance of our products.
4.In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
5.Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6.If the users find any problem that cannot be solved, please conta
ct with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
FAQ
1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.For designing or further discussion, it is better to contact us with Skype/email /phone, incase of any delays.
2. What kind of display we provide?
We have indoor/outdoor/rental taxi top /mobile LED display/LED stage/Irregular LED display for you choose.
3. Are you manufacturer of led display.If yes, in which city?
Yes, Our factory with 2000 square meters. And we're in SHENZHEN city, GUANGDONG Province.
4. How long can I get the goods?
Our produce time is about 10-25 working days.When you confirmed the order, we can start production after receiving your deposit(30% TT in advance). we will update the production details in time.we will notice you that we can delivery the goods to you after we get full payment.
5.May I know the package details?
For fixed installation, we use wooden case, usually 1 cabinets in 1 wooden case;
For rental market, we suggest you use flight case, generally 7 cabinets in one flight case.
It's safe to protect the screen on the way, also economical.
6.What is the payment method?
We support a variety of payment methods, the most common is the TT.
7. What's the pixel pitch for Outdoor LED Display Screen?
Outdoor (p5mm/P6mm / P8mm/P10mm/p16mm/p20mm) led display screen
8.Can it play HD video?
Yes, it can realize HD video function with Linsn controlling system
9.What's the controlling system?
Our standard controlling system for this model is Linsn, Novastar. Also support other controlling system, like Xixun,TF, Colorlight, etc.
10.What's the difference between DIP(1R1G1B) and sSMD(One LED, 3 in 1) ?
SMD(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3 led chips in one LED Lamp;
Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel.
SMD(One LED), reduced the LED on the screens,it reduced grainy of the screen, and improve the uniform of the screen, this will make the screen have a more wide viewing angle and smooth image. With the technology advanced and SMD brightness improved, SMD is more and more used outdoor.
11. What is your terms of delivery?
We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.
Our advantages
1. Your reply will be replied within 24 hours.
2. Good service whenever.
3. OEM service
4. No MOQ
5. Quick delivery: 10-25 working days
6.Your logo could be added on the cabinet as requested.
7 Excellent R&D team,lower the cost and assure you quality goods.
FYI: we would like to know more details before offering you the best quotation:
1. What is screen size and what cabinet you prefer?
2. What is the best viewing distance with your project?
3. For fixed or rental installation?
4. When do you need to get goods and is it urgent or not?
Contact info:
Ms.Simon
Overseas Sales
SHENZHEN Always Bright Tech limited.
www.alwaybright.com
M:+86-135 10066952
Always bright tech Ltd. Is an integrated service supplier, which is specializing in the R&D, production and market of LED display products. The company with several automatic production line, advanced manufacturing equipments and perfect testing devices.
Most of our engineers have more than 10 years experience, which laid a solid foundation for Always bright new product research and development. For years, Always bright has been providing with superior quality LED display products and services. Moreover, our products are exported to oversea markets around European countries and Middle East area, such as the USA, Japan, Russia, Sweden, Turkey, Poland, France, Israel, Argentina, Spain etc., more than 80 countries and regions. Currently, our company has passed ISO9001: 2000, CE, FCC, EN12966 and RoHS certification.
Always bright responds to national energy-saving and emission reduction call voluntarily, complying with the development trend of green environmental protection, rely on the high-quality management team, modern management and the powerful resources of Shenzhen, Always bright is dedicated to offering the best LED display and solution services to our clients, which is played an important role in global environmental protection and energy-saving development.
